| Categories | Dual Zoom Camera |
|---|---|
| Place of Origin: | China |
| Brand Name: | GL |
| Certification: | CE |
| Model Number: | GLZ |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | TT100% |
| Supply Ability: | 100SETS/WEEK |
| TERMS: | FOB |
| High Definition Support: | 1080P (Full-HD) |
| Dimension: | 156×156×145MM |
| Optical Zoom: | 30X |
| Weight: | 600g |
| Color: | Black |
| Work Temperature: | -10℃～45℃ |
| Input Voltage: | 4S～6S（14.8～22.2V） |
| Gimbal: | 3axis |
| Control Accuracy: | 0.03° |
| Control Angle Range: | -40°～40°（Rolling），-120°～30°（Pitching）；-170°～170°（Direction） |
| Material: | Aerolite;Nylon |

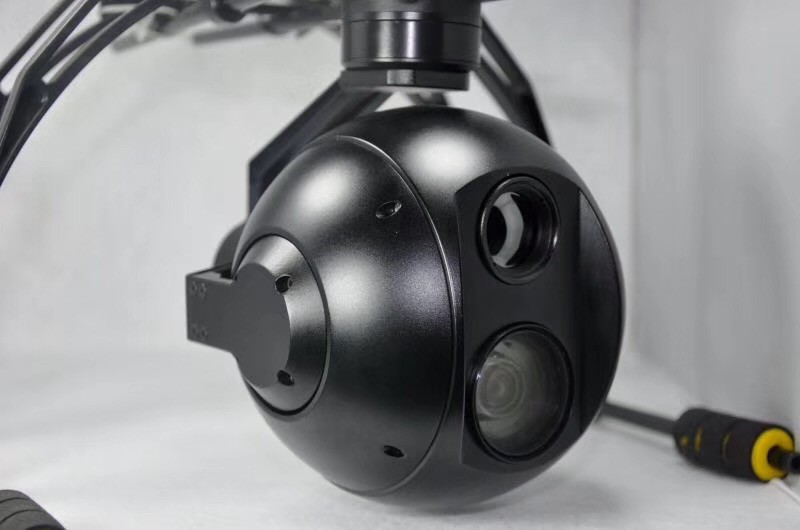

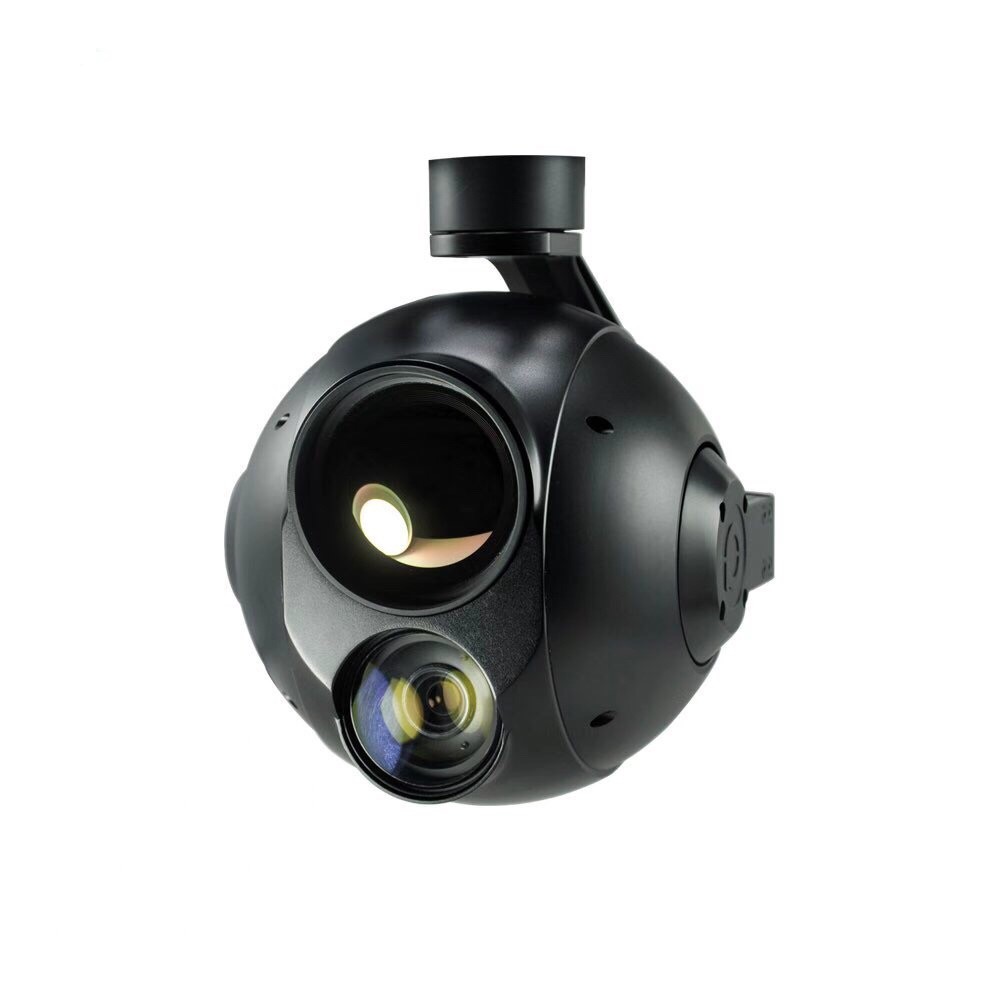

New 30* Optical EO/IR Sensor Dual Zoom Camera and Target Locking System
Specifications:
♦ Object locking system/Target lock capability.
Items | Technical specification | |
Detector characteristic | Detector | Uncooled amorphous silicon FPA |
Array format/Pixel pitch | 640x480/17um | |
Sensitivity | ≤65mk@ 300K,50HZ | |
Frame rate | 50Hz | |
Spectral range | 8～14um | |
Image processing | Nonuniformity calibration | No shutting technology |
Instantaneous boot | 〈5s | |
Noise reduction | Digital filter | |
Image definition | 768X576 | |
Image frame rate | 50Hz(PAL) / 60Hz(NTSC) | |
Lens | Optional | |
Thermal imaging adjustment | Polarity | White hot /Black hot |
Mirror image | Horizontal/Vertical | |
Image zoom | X10,X18,X30 | |
Auto Gain | Auto adjustment | |
Power | Working voltage range | DC: +2.5V～+5.5V |
Typical working voltage | DC: +3.6V | |
Power consumption | ≤0.5W | |
Anti access protection | Yes | |
Over voltage protection | Yes | |
Environmental parameter | Working temperature range | -10℃～45℃ |
Storage temperature range | -50℃～65℃ | |
Humidity | 5%～95% Non-condensing | |
Vibration | GJB 150-16 2.3.1 | |
Shock | GJB 150-18 Test7 100g/6ms | |
Anti temperature impact | 5℃/min(-40°C ~ +60°C) | |
Physical parameter | Weight(No lens and back cover) | 600g |
Dimension(No lens and back cover) | 156×156×145MM | |
Video Demonstration:
https://youtu.be/s-qoOJdGiS4 (Target Locking System)
https://youtu.be/hrl2kaalgww
https://youtu.be/IZNA2kt8Soo
https://youtu.be/2n0YZU7zisc
|
