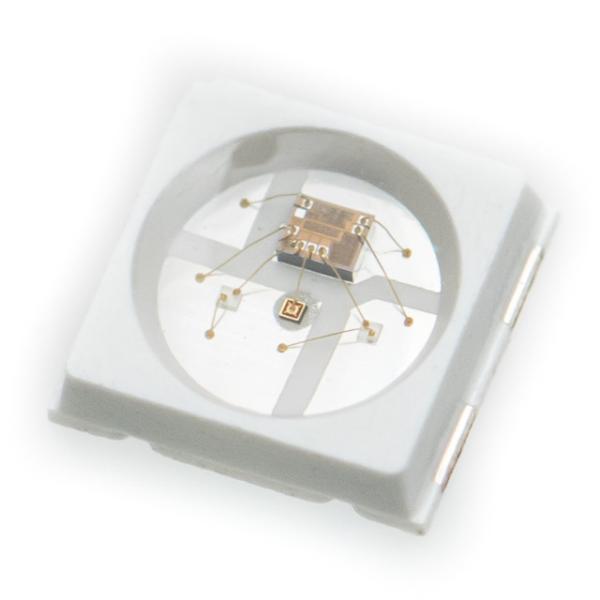

• • • • • SK6812mini 3535 LED Chip




          SK6812mini is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.

          The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.

          The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

        • SK6812 mini datasheet is :

        • http://www.normandled.com/upload/201603/SK6812%20MINI%203535%20LED%20Datasheet.pdf

        •

        •


Shenzhen Normand Electronic Co., Ltd focuses on the development,producing,sales and service of LED Strip,

LED Pixel Light, LED Module, LED Light Source and LED lighting products, who holds strong R&D

and manufacturing capacity.high efficiency management and advanced manufacturing equipments.

In order to meet different needs which from decoration of entertainment place and advertisement board,

we have been working in producing all kinds of  digital LED strip,like WS2813,SK9822,SK6812 ,SK6812 RGB, SK6812 WWA ,

 SK6812 3535 , SK6812 RGBW, SK6812 RGBY, SK6822 LED STRIP,APA102 APA104, WS2801 WS2811

 WS2812B, TM1809 TM1812,LPD6803,LPD8806, UCS1903 ,and side view 335,335rgb,S shape 2835 ,3528,

5050 normal led strip and so on. With the development of IC technology and growth of company power,

 much more models led strip light with new functions are designed to meet various needs. Color grade

 and changing patterns become more and more selectable. And some led strip light can accomplish

 LED display effects.

Energy saving ,environmental protection, good electric property, excellent heat diffusivity ,good ability of anti-attenuation and reliable are the main characteristics of Normand LED products.

Nowadays, Normand LED sells well in America, Europe and Asia market. In domestic market, Normand LED

already stands in its position and become the famous leading LED lighting company, Normand LED receive

great compliment by clients.

We believe that credit is uppermost,quality comes first and pursues excellence to push developing and innovation,

we will make great contribution to Lighting industry and environmental programs.
