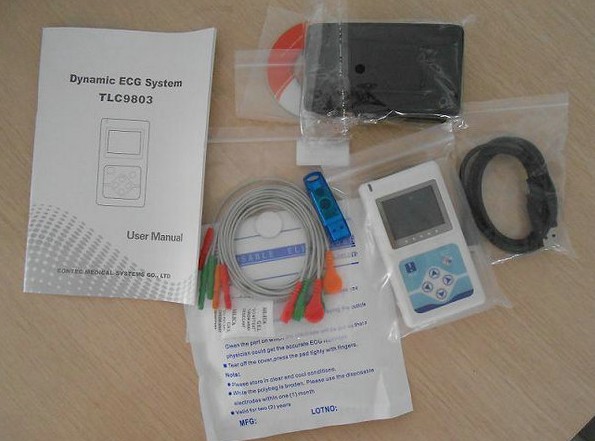

TLC9803 3-Channel Portable 24 Hour Heart Monitoring Recorder System Holter Patient Monitor ecg cable ECG EKG

TLC9803 3-Channel Portable 24 Hour Heart Monitoring Recorder System Holter Patient Monitor ecg cable ECG EKG

Model no.: TLC9803

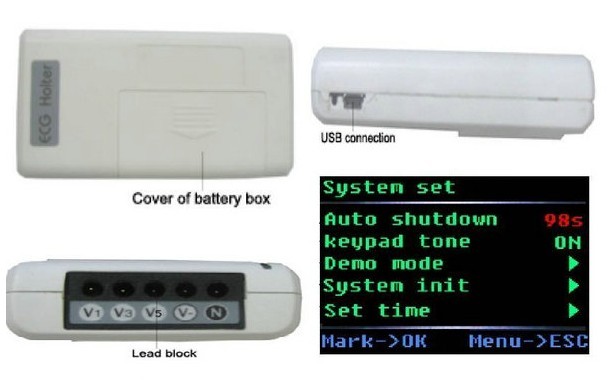

Recorder Features
* With advanced design and technology, the recorder can work stably,
dependable and durable.
* Be provided with the capability of anti-jamming and shock-pro.
* Small volume with OLED screen. The resolution is 160*128.
* Be provided with functions of waveform preview, record review and event
marking.
*Accurate record of the start time of the data sampled owing to the real time clock
of itself.
*Avoid damage owing to the repeating inserting and pulling out by using the
inbuilt TF card to storage the data.
*The maximum capability can be 2GB, so the original data can be saved perfectly
by no compression.
*The average review time of single case can be less than 40 seconds by using
interface of USB 2.0.
*Record waveform details inextenso by the design of high precision and sampling
frequency.
*Record the state of pacemaker exactly by higher sampling frequency.
The features of software
*Quick and accurate analysis system.
*With 3 leads synchro analysis, QRS search can be more exactly.
* There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms.
*Optional main channel.
* Agile and exact "Atrial Fibrillation" analysis.
*The function of pacing analysis could analyse all pacemakers.
* Many pacine modules have been added.
* Any period of single lead or 3-leads ECG can be reviewed at any time with the
function of fast waveform review and analysis.
* The types of the analysis system of HR variability include five minutes of short
ECG and one hour or 24-hour of long ECG.
* Print report expediently.
* Perfect function of case management.
* With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally.
*"Sleep breath pause syndrome analysis", the physician could print sleep asphyxia
analysis report and diagnose.
*"HRT" analysis, when the adjustable function is natural, this transitory change
will be represented by the form of HRT immediately.
*15."T Wave Alternation" analysis is a important index on judging and preventing arrhythmia.
Standard
Number of channels: 3 channels;
Sampling rate: 10000Hz;
Sampling accuracy:12bit;
Recording time : 24 h;

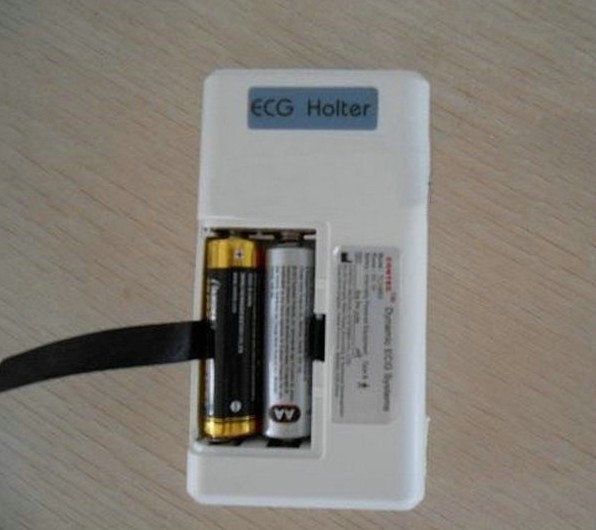

Power: 2 batteries in size 5;
Interface: USB2.0;
Scale voltage:1mV±5%;
Standard Sensitivity:10mm/mV±5%;
Noise level:≤30μV;
CMRR:≥60dB;
Feathers of low frequency : Time constant>3.2s;
Scan speed:25mm/s±5%;
Enduring polarization voltage:±300mV;
Least measure signal : 50 µV p-p;
Product safety type : Type B (Internally powered);
Size:111mm(L)*60mm(W)*25mm(H);
Net Weight: 102g (Without battery).
