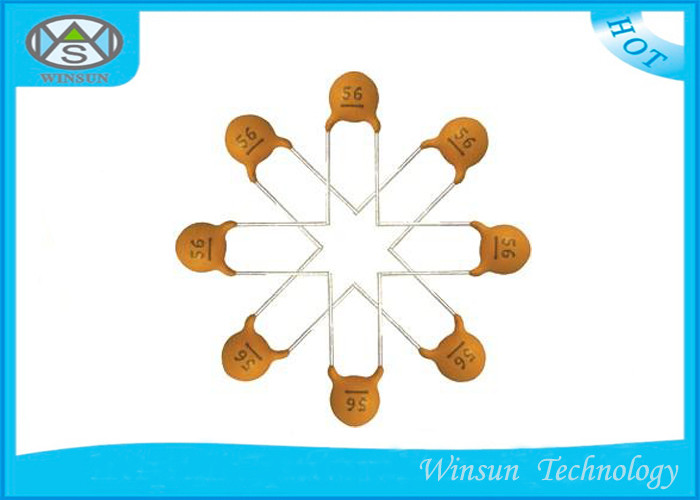

Mid / Low Voltage Ceramic Capacitor Disc type Small Size For Coupling

Yellow Mid / Low Voltage Multilayer Ceramic Capacitor / RoHS Compliant WS-LDISC Series

Specifications:

Disc type, one-way leads to the lead wire; high withstand voltage , good insulation, low-loss.
Range of Applications: Suitable for the bypass, coupling, filtering in the electronic circuit .
Completely compliance with EU RoHS (Directive 2002/95/EC) standards, REACH, PFOS, PAHS,

halogen-free, 7P Environmental Protection Standards.

* Size Range(Diameter) : 5mm 5.5mm 6.5mm 7.5mm 8.5mm 9.5mm 10.5mm 11.5mm 12.5mm
* Capacitance Range: 1PF~0.1uF
* Voltage range: 50V-500V

* Capacitance precision: ±0.25Pf, ±0. 5pF, ±5%, ±10%, ±20%, ±80%-20%

* Operating Temperrature: -25+105 C

Withstand voltage: ≥ 1.5 times of the rated voltage
Insulation Resistance: ≥ 1000MΩ or ≥ 100Ω • F
The Loss Tangent: Y5P ≤ 0.025; Y5V: ≤ 0.050; Y5U: ≤ 0.025

Features and uses:
Temperature compensation dics ceramic capacitors have a ceramic that is formulated to provide a predictable linear capacitance change versus temperature .This predictable linear capacitance change allows the temperature compensating disc capacitors to be used in circuits such as tuned circuits .

Standard of application:
GB5971 detailed specification for electronic components fixed ceramic capacitors type CC1
