| Categories | Stationary Hydraulic Scissor Lift |
|---|---|
| Brand Name: | SDLIFT Or OEM |
| Model Number: | SJG5-4.5 |
| Certification: | CE TUV SGS |
| Place of Origin: | China |
| MOQ: | 1 UNIT |
| Price: | USD3980- USD7800 / UNIT |
| Supply Ability: | 3600units per year |
| Delivery Time: | 5-20 work days |
| Packaging Details: | Iron case or plywood case package |
| Application: | Scissor Lift For Cargo Lift |
| Safe Device: | Explosion-Proof Lock Valve |
| Lift Drive: | Hydraulic Scissor Lift |
| Motor: | From Italy or Chinese famous brand |
| Material: | high strength Manganese Steel |
| Lift System: | Hydraulic System |
| Power Supply: | 380v/50hz/3ph/3.0kw |
| Color: | red, grey, yellow, blue, or as your optional |
| Structure: | scissor lift structure |
| Loading capacity: | 2000kgs |
| Lifting/travel height: | 4200mm |
| Platform size: | 2200mm x 1800mm |
| Company Info. |
| Shandong Lift Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

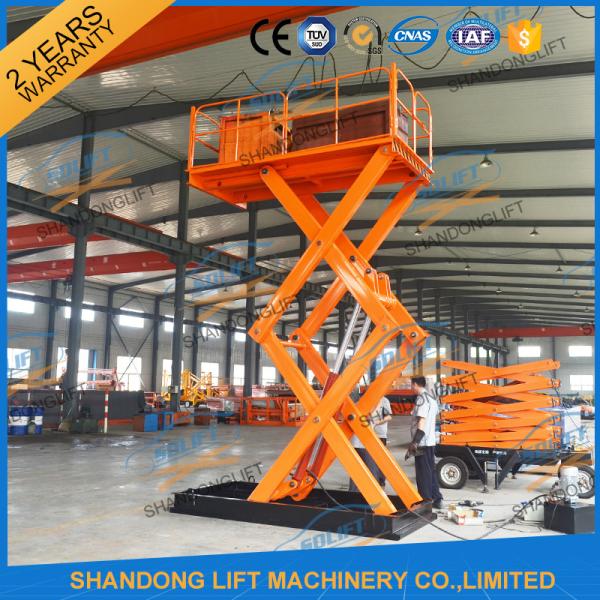

CE TUV 2T Hydraulic Material Scissor Lift Platform Warehouse Cargo Scissor Lift:
Application:
The Hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo between stairs, from basement to first floor, to second floor, or to third floor.
Operation is easy. There are 2 sets control system installed on the Hydraulic scissor car lift , 1 control box below, and 1 hand controller on safety rail that can be operated on upper platform.
Advantages:
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection locking device to avoid falling for the Hydraulic scissor lift.

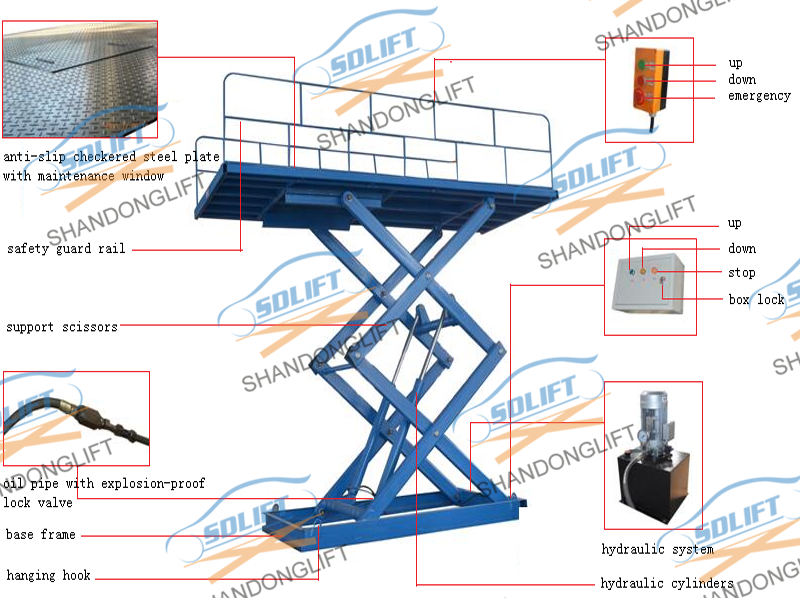

Parts showing:
The models we supplied for clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The Hydraulic scissor lift can be customized as your detailed size. | |||||
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency
occurs
2) The safety guard rails to guarantee safety of the cargo above
platform
3) The limit switch system helps the hydraulic scissor liftto stop at accurate position
4) Electricity leakage protection device is equipped on, all
electric components are CE certified.
5) All the hydraulic scissor lift are passed 1.2 times loading test before leaving factory.
Configuration:
1) Platform Material: rectangular tube + 4mm checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw
4) High Precision Hydraulic Cylinder: 2pcs
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Products showing:
Packaging & Shipping:
Contact us:
Owen Li
Cell / WhatsApp: +8613969113583
Skype: shandonglift
Mail: sale@shandonglift.com
|
