1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Categories Glazed Tile Roll Forming Machine
Brand Name: HC
Model Number: HC40-165-990
Certification: CE
Place of Origin: China
MOQ: 1set
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Delivery Time: 25-30days
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type: PPGI/GI
Material Width: 1220mm
Material Thickness: 0.3-0.6mm
Roller Stations: 18Stations
Roller & Shaft Material: 45# Steel Quenching and Plating
Diameter of Shaft: Φ70mm
Cutter Material: CR12
Drive Type: Chain Drive
Speed: 4m/min
Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can be customized)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

1220 Width Panel Glazed Tile Roll Forming Machine For Steel Construction
Product Overview

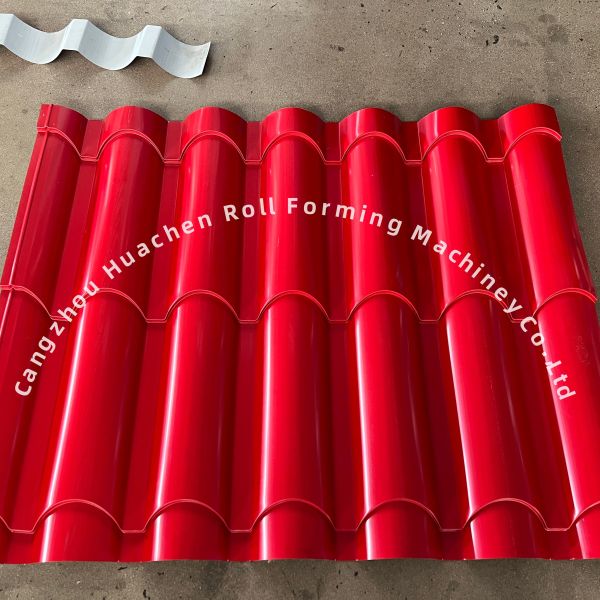

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Production Process
  • Decoiling the sheet
  • Sheet guiding
  • Roll forming
  • Measure length
  • Cutting the panel
  • Panels to the supporter
Panel Glazed Tile Roll Forming Machine overview showing complete production line
Technical Specifications
ParameterSpecification
Material TypePPGI/GI
Thickness0.3-0.6mm
Width1220mm
Roller Stations18 Stations
Roller & Shaft Material45# Steel Quenching and Plating
Diameter of ShaftΦ70mm
Cutter MaterialCR12
Drive TypeChain Drive
Speed4 m/min
Total Power5.5 + 5.5 KW
Voltage380V 50Hz 3 phases
Component Details
5T Manual Decoiler

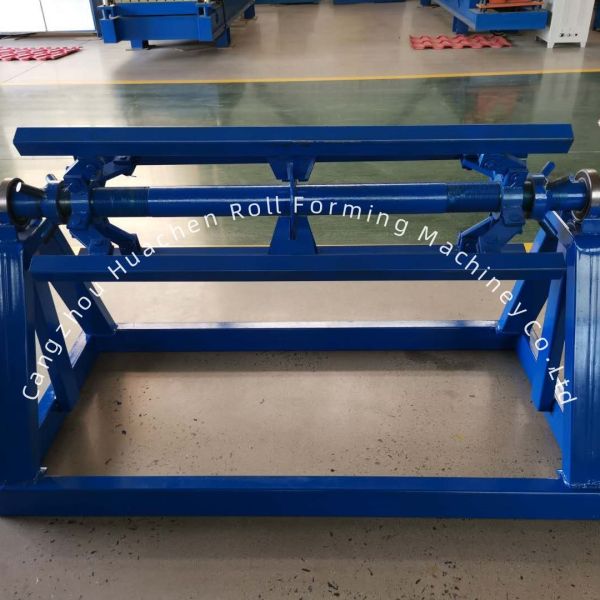

5T Manual Decoiler component with adjustable inner diameter

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter

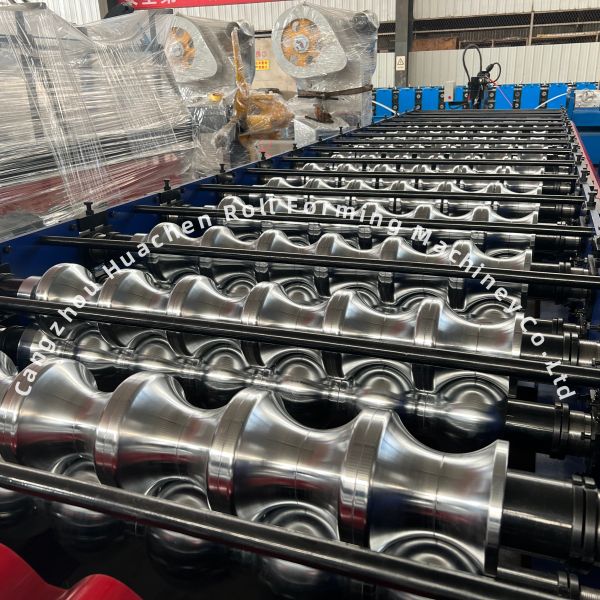

Feeding Table and Pre-Cutter assembly

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller
Shaft and Roller assembly made of 45# Steel

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
Hydraulic Pump Station with cooling system

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
Touch Screen Control Cabinet with Delta components

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter
Pressing Section assembly Cutter blade detail made of CR12 material

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table
Output Table with roller system

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Spare Parts Included
ComponentQuantity
Chains2 Sets
Solenoid Valve1 Set
Travel Switch2 Sets
Open-End Wrenches2 Sets
Hexagon Wrench2 Sets
Counter1 Set
Wrench2 Sets
Oil Seals1 Set
Additional Machine Images
Glazed tile roll forming machine side view Glazed tile roll forming machine operational view Glazed tile roll forming machine detailed component view
