NFC Forum Type 2 Tag RFID Reader Writer Supports Simulation Keyboard Output DC 5V

Categories NFC RFID Reader
Brand Name: Andea Electronics
Model Number: RL861
Pla of Origin: CHINA
MOQ: 1 Piece
Pri: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500~1000 Sets Per Month
Delivery Time: 3~5 work days
Packaging Details: Standard Export Carton, Foam and Protective Film
Place of Origin: CHINA
Compatible Protocols: ISO15693, ISO14443A/B, ISO18000-3M3
Working Voltage: DC 5V
Max Power Consumption: 0.48W
Dimension: 50*45*10mm
Weight: 18g
Color: Black
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NFC Forum Type 2 Tag RFID Reader Writer Supports Simulation Keyboard Output DC 5V

NFC Forum Type 2 Tag RFID Reader Writer Supports Simulation Keyboard Output

Product Introduction:

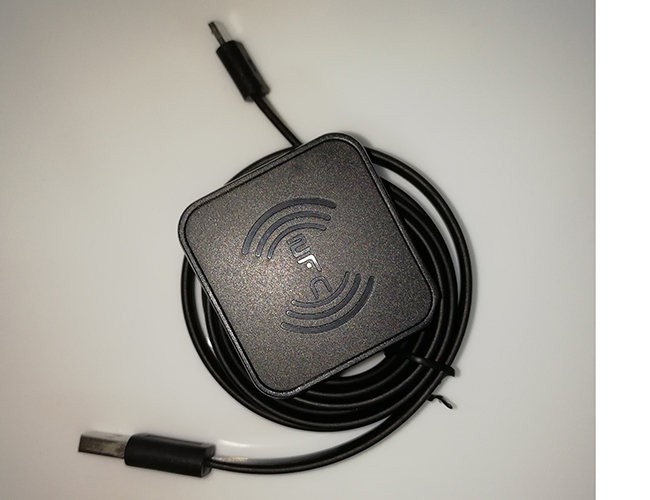

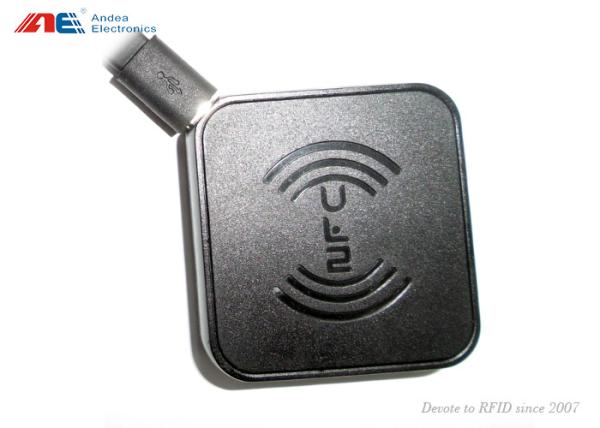

RL861 is a kind of desktop using plug and play USB RFID reader writer which supports NFC Forum

Type 2 Tag. With built-in antenna and all-in-one design, it is able to realize read and write function together.

The compatible NFC Forum Type 2 Tags are NTAG21x (NFC), MIFARE Ultralight, MIFARE Ultralight C.

Also, it is a multiple protocols reader writer which supports ISO15693, ISO 14443A/B, ISO 18000-3M3.


Main Features:

  • Super easy NFC / RFID chip handling
  • Intelligent NFC reader firmware by "embedded DLL"
  • Integrated key handling
  • Support simulation keyboard (cursor output) function
  • Fast application development and time to market
Technical Specification
ModelRL861
Operating Frequency13.56 MHz (±7KHz)
Compatible ProtocolsISO15693, ISO 14443A/B, ISO 18000-3M3 and NFC
Compatible Tags
  • NFC Forum Type 1: Innovision Topaz512
  • NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.
  • NFC Forum Type 3: Sony Felica [only support Polling]
  • NFC Forum Type 4: Mifare DESFire EV1
  • NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus
  • Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini
  • ISO18000-3M3 Type: ICODE ILT
  • ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
Communication InterfaceUSB
Reading RangeISO 156938cm
ISO 14443A5cm
ISO 18000-3M34cm
Keyboard EmulationSupport
Anti-collision AlgorithmSupport
Working VoltageDC 5V (USB power supply)
Max Power Consumption0.48W
Dimension50*45*10mm
Weight18g

What are the differens between NFC and RFID?


RFID is the process by which items are uniquely identified using radio waves, and NFC is a specialized

subset within the family of RFID technology. Specifically, NFC is a branch of High-Frequency (HF) RFID,

and both operate at the 13.56 MHz frequency. NFC is designed to be a secure form of data exchange,

and an NFC device is capable of being both an NFC reader and an NFC tag. This unique feature allows

NFC devices to communicate peer-to-peer.
