Categories | Peltier Thermoelectric Cooler |
---|---|
Brand Name: | Adcol |
Model Number: | ATL080-24VDC |
Certification: | ISO9001 , CE |
Place of Origin: | China |
MOQ: | 1 |
Price: | Negotiation |
Payment Terms: | T/T , Paypal |
Supply Ability: | 500pcs per month |
Delivery Time: | 3 - 4 weeks |
Packaging Details: | Solid carton packaging |
Voltage: | 24VDC |
Vmax: | 36VDC |
Initial Current: | 6.2A ±10% |
Normal Current: | 5.4A ±10% |
Operating Temperature: | -10~55︒C |
Weight: | 3.12kg |
Company Info. |
Adcol Electronics (Guangzhou) Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

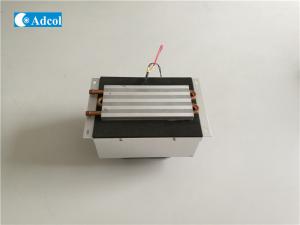

Portable Thermoelectric Liquid Cooler Medical Laser Cooling
Solution
BENEFITS OF THERMOELECTRIC PRODUCTS
Heat or cool depending on DC polarity ideal for temperature
stabilization, as in telecommunication laser diodes.
¥ Capable of very precise temperature control.
¥ Cause no vibration (for use in CCD cameras).
¥ Uses no chlorouorocarbons, for applications where gases are not permitted.
¥ Small prole allows for spot cooling.
¥ Maintain efciency even with scaling, unlike compressor-based
coolers.
¥ Solid state construction (no moving parts) leading to high
reliability.
¥ Produces no acoustical or electrical noise, unlike compressors.
¥ Performs in any physical or gravitational orientation, including upside down or sideways, unlike compressors.
¥ Can be used in zero-gravity, unlike compressors.
¥ Withstands high g-forces of space and military applications.
Specification (Ta=27︒C) | Description |
Heat transfer, hot | Air |
Heat transfer, cold | Liquid |
Cooling power (W) | 100 (ΔT=0) |
Voltage, normal(VDC) | 24, Vmax=36VDC |
Initial Current | 6.2A ±10% |
Normal Current | 5.4A ±10% |
Fan, cold side | N/A |
Fan, hot side | 120X38mm,24VDC, 0.4A |
Operating Temp. | -10~55︒C |
Weight | 3.12kg |
![]() |
