| Categories | Johnson Wire Screen |
|---|---|
| Brand Name: | huihao |
| Model Number: | Sieve Bend Screen |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 2000pcs per 20 days |
| Delivery Time: | 7 Work days |
| Packaging Details: | wooden pallet |
| name: | Sieve Bend Screen |
| wire type: | V wire |
| angle: | 90°,120°,140°,150°,160° etc |
| art height: | 10mm,15mm,20mm,50mm or depend on you size of screen panel |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
_______________________________________________________________________________________________

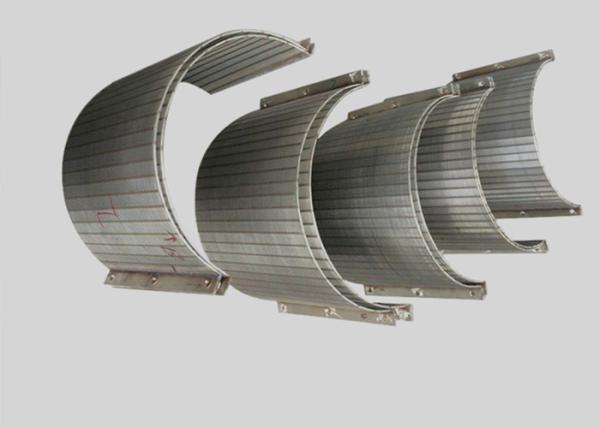

120 Degree Wedge Wire Dewatering Screen Sieve Bend Screen DSM Screen Ideally suited for removing large amounts of solids
from water and other low viscosity liquids it is often used as a first step in separation and dewatering of solid material. A simple device
with no moving parts available in a wide range of screen sizes, widths and flow capacities.
The wedge wire sieve bend screen, also known as the run down screen, side hill screen, DSM screen, Parabolic screen, curve screen
and so on. The sieve bend screen could be custom made and designed according to the application.
Specification of sieve bend screen
_______________________________________________________________________________________________
According to the slotted wedge wire screen catalogue – ferrite: AISI 430 (1.4016); austenite: AISI 304 (1.4301), AISI 304L (1.4307),
AISI 202 (1.473), AISI 316 (1.4401), AISI 316L (1.4404), AISI 317LN (1.4439), AISI 904L (1.4539), AISI 321 (1.4541), AISI 316Ti
(1.4571), Duplex: 329 LN (1.4462), 439 (1.4410);Special: 2.4360, 2.4610, 2.4816
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5*2.5 2x3 | 2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 |
Angle | 90°,120°,140°,150°,160° etc. | ||||||
Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. | ||||||
Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. | ||||||
Huihao has been supplying wedge wire in the UK for over a decade, with experienced members of the team having over 20 year’s knowledge
about the product. With this knowledge we understand exactly what is required from each project to ensure the product works as it is designed for.
Wedge wire is most commonly used for air distribution grilles, balustrade panels, building façades, drainage grilles, floor grilles and stair treads.
Wedge wire is bespoke and manufactured to the requirements of each project, it is available in a wide range of specifications, materials and finishes

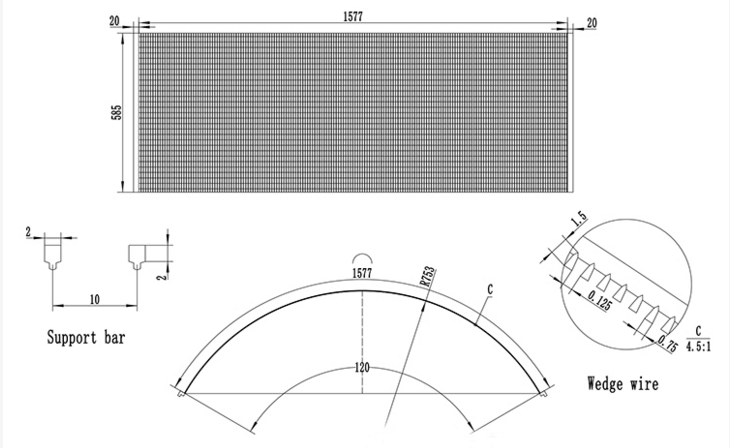

drawing of sieve bend screen
______________________________________________________________________________________________

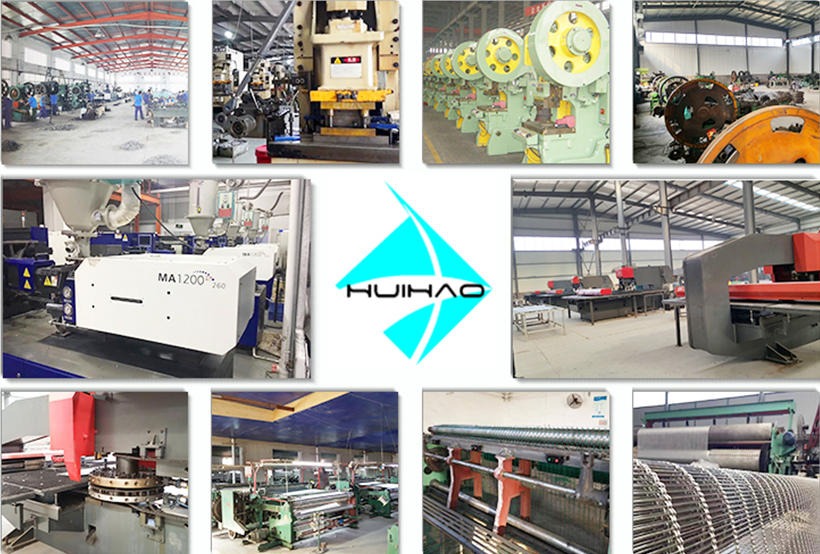

Huihao company
