Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment

Categories Fiber Optic Adapter
Brand Name: KCO, Kocent Optec Limited
Model Number: SC/UPC-SC/APC-Flange-SX
Certification: ISO9001, RoHS
Place of Origin: Guangdong, China
MOQ: Negotiation
Price: Negotiation
Payment Terms: Western Union,T/T,L/C
Supply Ability: 500,000pcs/month
Delivery Time: 2~5 days after get payment
Packaging Details: Plastic module, carton box, wooden pallet
Type1: SC/APC
Type2: SC/UPC
Material: Plastic
Chanel way: Simplex
Color: Blue
Repeat ability: 0.10dB
Company Info.
KOCENT OPTEC LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Blue SC/APC SC/UPC Fiber Optic Adapter with 0.10dB Repeatability and Flange for High Precision Alignment

Blue Green Fiber Optic Adapter SC/UPC, SC/APC With Flange Simplex 0.2dB
This fiber optic adapter provides reliable cable-to-cable fiber connections, available in SC/UPC or SC/APC configurations with flange. Designed for both single mode and multimode fiber applications, it ensures high-performance connectivity without dust caps.
Key Features
  • Compact design with high precision alignment
  • Optional with/without flange configuration
  • Available in simplex, duplex or quad options
  • Zirconia sleeve for durability
  • Low insertional loss and high return loss
  • Compliant with IEC, Telcordia GR 326 and JIS standards
Applications
  • CATV systems
  • Telecommunication networks
  • Industrial, Medical & applications
  • LANs, MANs, WANs
  • Data processing networks
  • Fiber to the home (FTTX)
Product Images

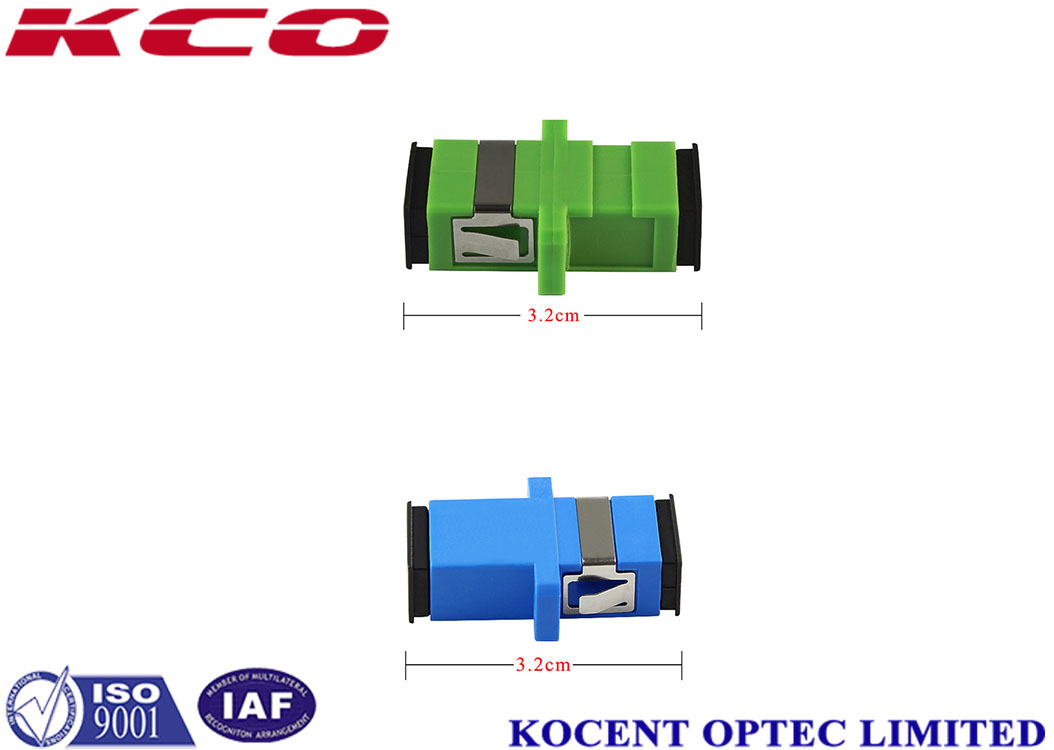

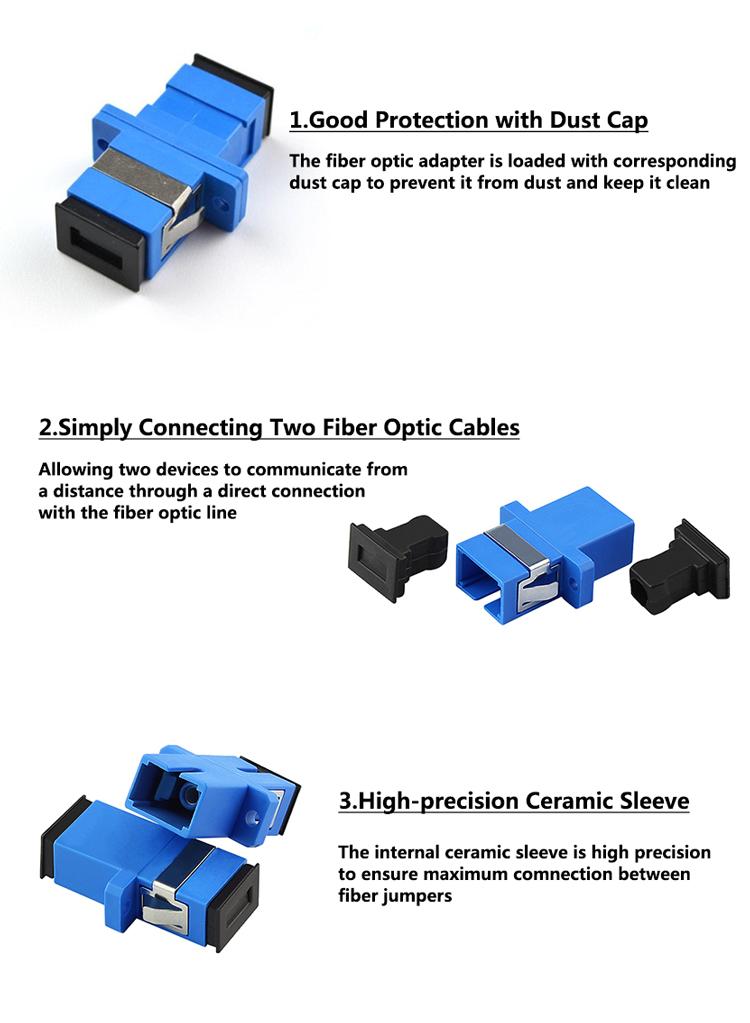

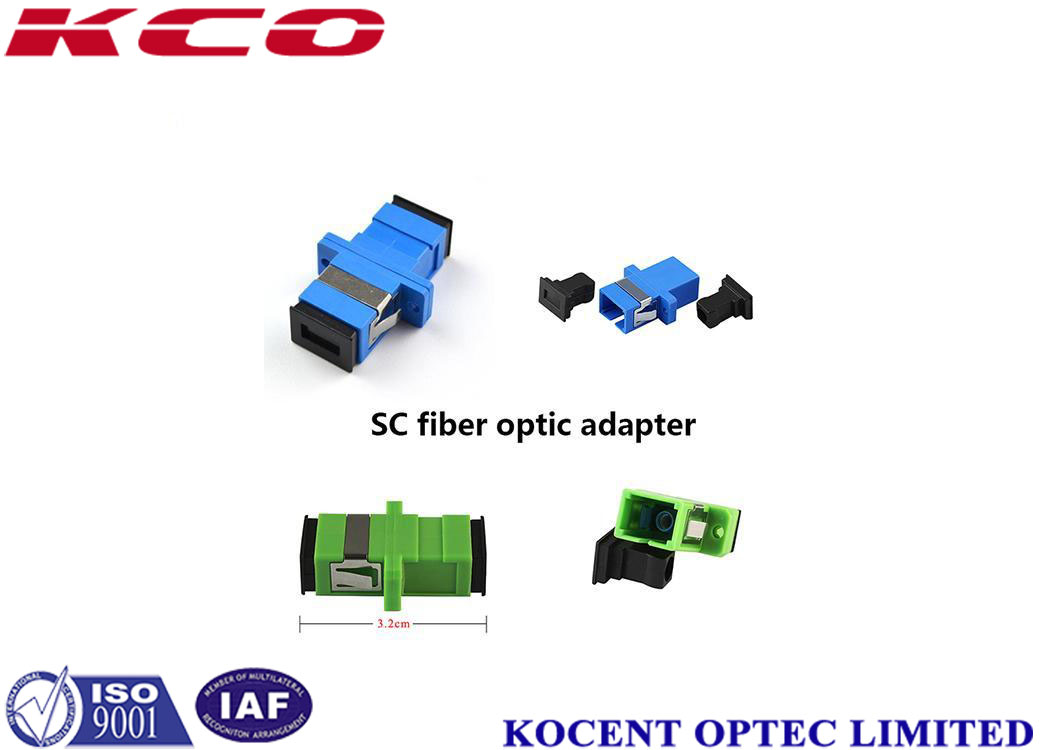

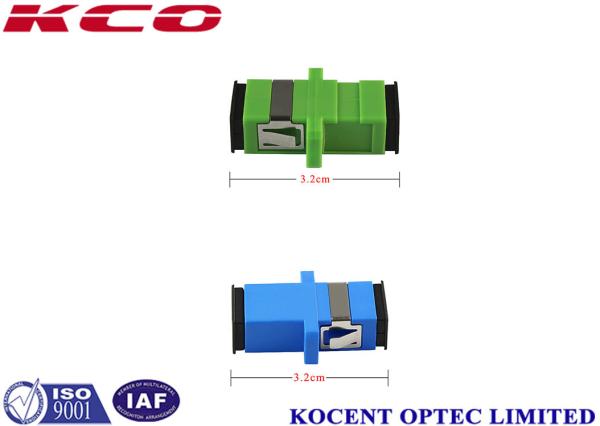

SC/UPC SC/APC fiber optic adapter front view SC/UPC SC/APC fiber optic adapter side view SC/UPC SC/APC fiber optic adapter close-up
Technical Specifications
ParameterSpecifications
Mating Connector TypeSC, LC, FC, ST, MU, D4, DIN, E2000, SMA
Fiber TypeSingle Mode | Multimode
Adapter ColorBlue, green, metallic | Beige, metallic
Testing Wavelength1310nm, 1550nm | 850nm, 1300nm
Insert LossTypical ≤0.15dB, max ≤0.2dB
Repeatability≤0.10dB
Exchangeability≤0.20dB
Durability1000 mating cycles, max ≤0.20dB
Housing MaterialPlastic or metal
Operating Temperature-20°C to +70°C
Storage Temperature-40°C to +85°C
Alignment SleeveCeramic (ZrO2) or customized
Channel NumberSimplex, duplex, quad
Reliability Testing
ItemTest NameAdditional Insertion LossAdditional Return Loss
1Mechanical durability<0.2dB<5dB
2Repeatability<0.2dB<5dB
3Lock strength<0.2dB<5dB
4Low strength<0.2dB<5dB
5High temperature<0.2dB<5dB
6Steaming<0.2dB<5dB
7Temperature cycle<0.2dB<5dB
8Vibration<0.2dB<5dB
9Drop<0.2dB<5dB
OEM/ODM Services
Custom branding options available for cables, packaging, labels, and other components. Our OEM and ODM services can accommodate your specific requirements.
Packaging & Shipping
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets. Available shipping methods:
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight
