ERW Tube Mill Line With Straight Seam High Frequency Welding

Categories High Frequency Welded Pipe Mill
Brand Name: TENGTIAN
Model Number: HG60
Place of Origin: CHINA
MOQ: 1SET
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets/Year
Delivery Time: 3 months
Packaging Details: Export waterproof and Seaworthy packing.
Certification: ISO9001,BV,CE
Price: $100000 to $1 million
Product name: High Frequency Welded Pipe Mill ERW tube mill line with straight seam high frequency welding
Application: Energy Supply Pipe,Natural gas,Petroleum,Drain Pipe
Voltage: 380V/220V
Weight: about 10 tons
Pipe diameter: 16-76mm
Thickness: 0.7-2.5mm
Keywords: High Frequency Welded Pipe Mill
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ERW Tube Mill Line With Straight Seam High Frequency Welding

ERW tube mill line with straight seam high frequency welding

The HG60 mill is intended for manufacturing of round pipe of Φ22mm-Φ76mm thickness is 0.8-3.5mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.


ERW Pipe making machine Technical Process:

Raw material(steel coil)→Uncoiling→shearing and butt welding→material accumulator→passively leveling→mill forming→high frequency welding→removing butts outside of weld seam→cooling→sizing→roughly straightening→fixed length cutting→runout table


Welded pipe making machine consists of the following parts:

1. Forming parts: Consist of seven frame of horizontal roll rack,four frame of empty curving rack,four frame of vertical roll rack and one frame of feeding rack

2. Welding parts: consists of welding five roller of extruding roll,two frame of scraping scar rack and one frame of polish rack

3. Sharping parts: consists of four frame of four roller rack

4. Electric control part: controlled by multipoint PLC point


Machine parts pics as belowe:


Doubel head uncoilerCage loop accumulator

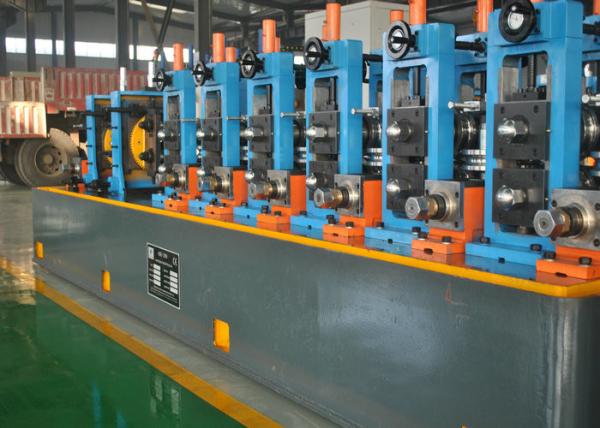

Automatic shearing and welderForming and sizing machine
Computer flying sawSolid high frequency welder
