| Brand Name: | KOMEG |
| Model Number: | KMHW-4750 |
| Certification: | CE/ROHS/FCC/ISO |
| Place of Origin: | China,Dongguan |
| MOQ: | 1set |
| Price: | negotiation |
| Payment Terms: | T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 30 working days after received your payment |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Product Name: | Walk-in Climatic Test Chambers |
| Temp. Uniformity: | +/-2 |
| Temp fluctuation: | +/-0.5 |
| Delivery: | 30-35 working days |
| Application: | reliability testing, research & development testing, failure analysis |
| Ambient temperature: | +5℃~+35℃ |
| Humidity uniformity: | +/-3%RH(>75%) +/-5%RH(≤75%) |
| Humidity fluctuation: | +/-2.5%RH |
4590L Walk In Stability Climatic Test Chamber For Defense Industry
, Aerospace Industry , Automatic Components

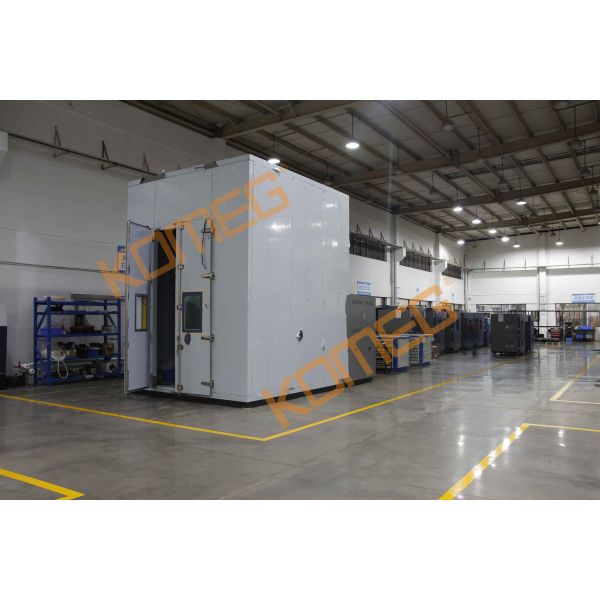

KOMEG Walk In Environmental Chamber is consist of Control Panel, electrical panels, moisturizingplate blower,heater,humidifier, freezer. It provides a large spare to test the temperature and humidityfor large-scaleparts,semi-finished products, it applied to test products that large-scale or the quantity, such as: computer terminals,vehicle parts.
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
| Model | KMHW-4590 |
| Volume | 4590L |
| Interior Dimensions | W 1700 × H 1800 × D 1500 mm Exterior size: approx: W 2800 × H 2100 × D 1700 mm (Excluding the protruding part like motor,ect) |
| Door | Single door, left open ,heating wire is installed at the door frames to prevent condensation at low temperatures |
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
| Standard accessories | φ100mm*1 located on the left and right of chamber, with rubber stopper and stainless steel cover |
| Control System | Balanced Temperature & Humidity Control System |
| Refrigeration system | Water Cooled Semi-hermetic compressor, single stage or cascade refrigeration system , CFC free refrigerant ( HFC-507 and HFC-23 ) |
| Controller | Panel: 7-inch LCD Touch panel, Chinese or English display selectable Operation model : Program or fix point running Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles |
| Temp. range | Maximum: 80 ºC,120 ºC;
|
| Humidity Range | 10%, 20%, 30% ~ 95% |
| Temp. constancy | ±0.5 ºC |
| Humidity constancy | ±2.5%R.H |
| Temp. uniformity | ±2.0 ºC |
| Humidity uniformity | ±5.0%R.H |
| Shelf for samples | Stainless steel sample holder 15 layers, carrying weight 30kg/layer. |
a. The chamber is assembled with self-made storeroom boards. The dimension and shape of it can be changed freely. It is assembled on site and can be transported, carries and relocated conveniently. The special silicon rubber imported from Japan is utilized as the base material for sealing and contracting for the assemble seams. The self-made storeroom boards employ the design and processing technology of frame structure, setting steel plates into the frame as inner part and outer covering and foaming into a whole body that boasts the distinctive features of high tightness, perfect sealing, wide range of temperature and humidity resisting, good warmness reserving and long life etc. of the industry.
b. Non-frosting operation and automatic defrosting loop, continuous operation in low humidity and temperature.

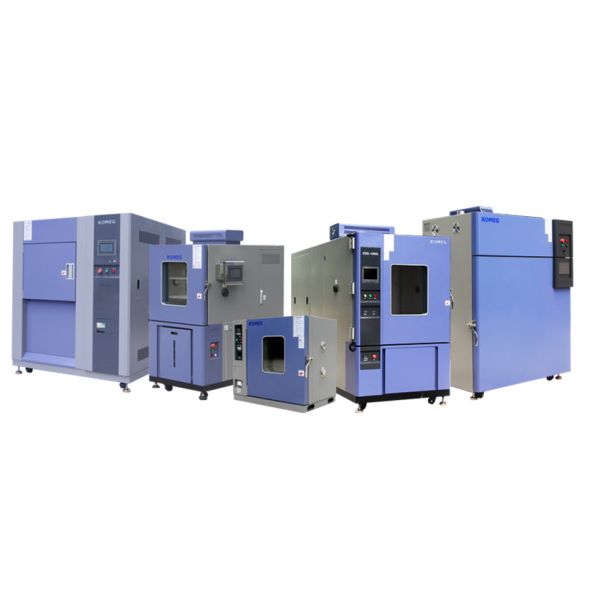

KOMEG is pioneer supplier for Environmental Testing Chamber in China with over 28 years’ experience. Our products include Climatic Test Chambers, Thermal Shock Test Chambers, walk-in Chambers, Drive-in Chamber, Burn-in rooms, Aging Test Chambers, Vibration Chamber, Temperature Humidity and Vibration three integrated Test Chamber, Drying Ovens, Salt Spray Testers and Medical Laboratory Equipment etc.
Temperature Humidity Test Chamber Series:
36L, 64L, 150L, 225L, 408L, 800L, 1000L, 1500L,2360L, 3000L and etc.
Walk in Chamber / Walk in Climatic Test Chamber / Walk in Temperature and Humidity Test Chamber / Aging Chamber series:
10CBM, 13CBM, 24CBM, 27CBM, 45CBM, 256CBM, 300CBM, 485CBM, 520CBM and etc.
|
