Gantry Type Auto Light Pole Welding Machine For High Mast Main Motor Power 10KW

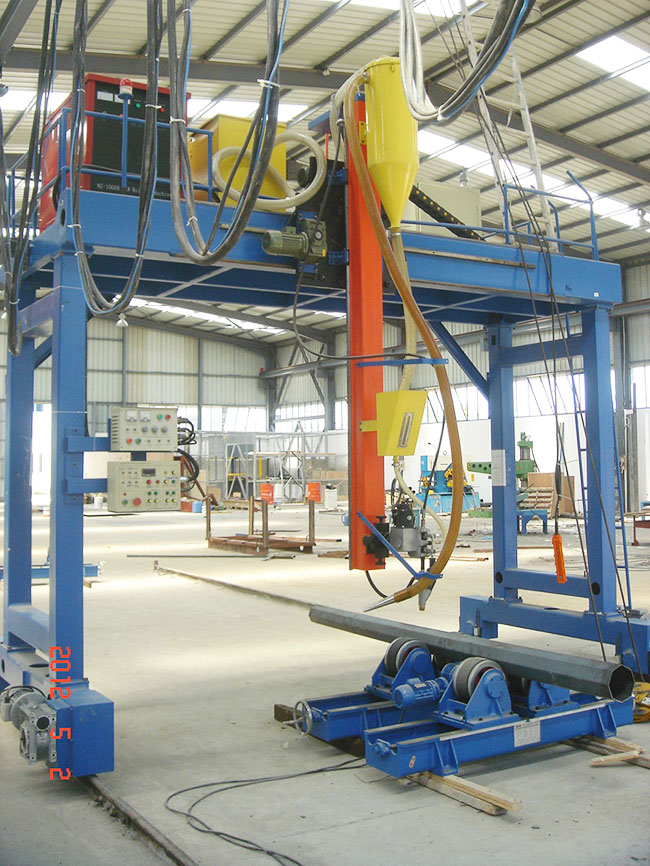

Gantry Type Light Pole Automatic Welding Machine for High Mast

This machine is specially designed for light pole automatic seam welding.

Welding method: Submerged Arc Welding/MIG Welding.

LIGHT POLE WELDING MACHINE is suitable for one shell type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.

The machine includes the following items:

Machine body

Submerged Arc Welding system, including welding wire feeding system

The flux recovering system

Structures:

This set of machine is mainly designed for the pole diameter above 500mm, normally 2 shells combined pole.

The machine includes the following items:

• Travel driving motor: YDS100-4 low speed motor 1 set
• Welding lifting choose SCWS-08-1.1W deceleration machine 1 set
• Flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m
• Submerged arc welding machine 1 set. Lincoln DC-1000
• Power cord 3×16m㎡, 60m
• Arc guidance 1 sets(including welding gun)
• Able movement pulley
• Electrical apparatus box 1 set control box 1 set

Technical Parameters:

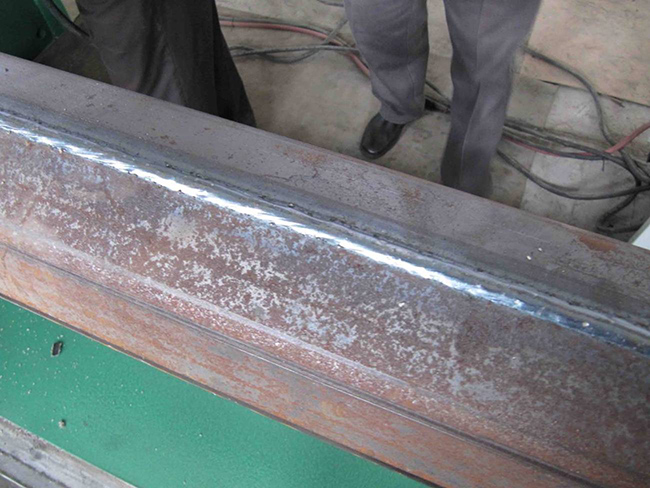

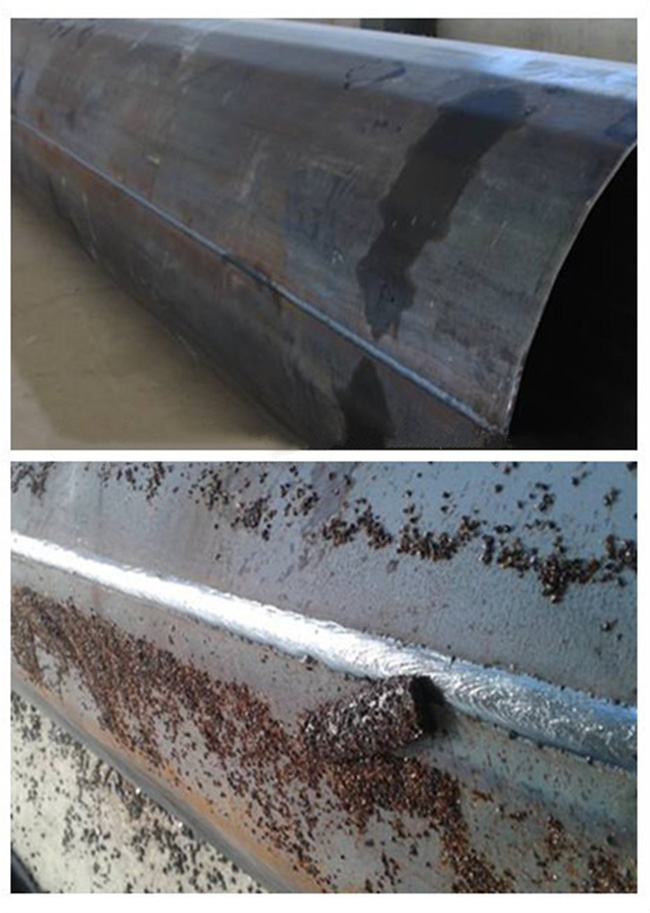

Woripiece Photos:

After-Sale Service:

♥ Warranty: one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material
