Super Fine Wire Annealing Machine Continuous Resistance Annealer For 0.05-0.1mm Online Annealing

Categories Wire Annealing Machine
Brand Name: NEWLEAD
Model Number: 24VT
Certification: ISO CE
Place of Origin: china
MOQ: 1 set
Price: Negotiation
Payment Terms: Western Union, T/T, L/C
Supply Ability: 10 sets /60 days
Delivery Time: 60 days
Packaging Details: wooden pallet
Usage: Super fine wire annealing
Inlet: 0.14-0.45mm
outlet: 0.05-0.10mm
Max speed: 1800MPM
Drawing drafts: 24
Motor: 11KW+3KVA+2.2KW
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

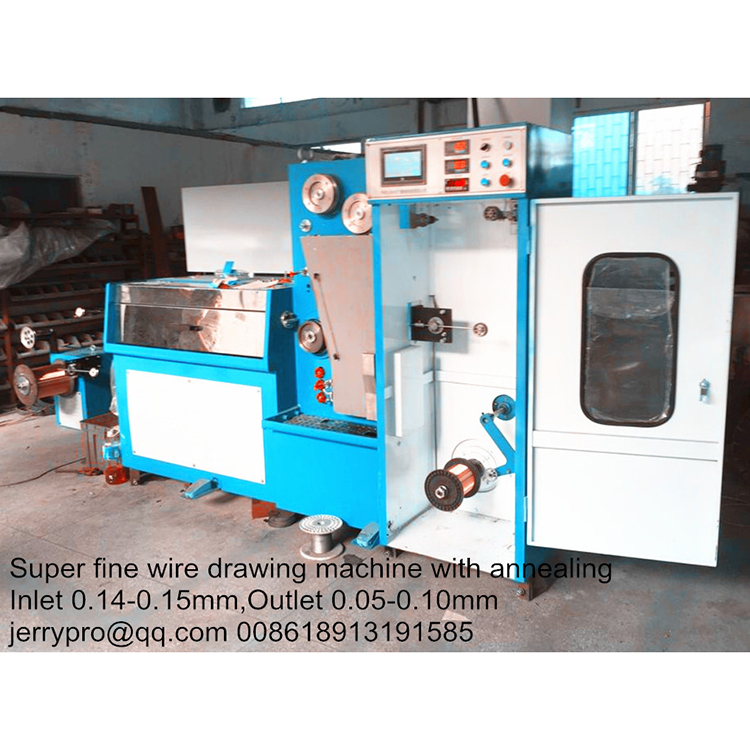

Super Fine Wire Annealing Machine Continuous Resistance Annealer For 0.05-0.1mm Online Annealing

Super fine wire Annealing machine continuous resistance annealer for 0.05-0.1mm online annealing


Design:

• corrosion-resistant drawing chamber and drawing lubricant supply

Increase in quality:

  • drawing dies and drawing cones sprayed with drawing lubricant for high wire surface quality

  • optoelectronic spool scanning with automatic wire traversing

  • DC Continuous Resistance Annealer with 3-zone annealing system for ideal wire drying

  • inline annealing for ideal grain structure and better down stream processing

    Increase in productivity:

    • straight wire path into the drawing dies through adjustable inclination of the drawing cones

    Energy and cost efficiency:

    • traversing drawing die holders (long lifetime of the drawing cones)


machine type22DT24VT
inlet diameter(mm)φ0.8-φ1.2φ0.14-φ0.45
outlet diameter (mm)φ0.1-φ0.4φ0.05-φ0.10
drawing line speed(MPM)20001800
main motor11KW11KW
annealing power16KVA3KVA
take-up motor3.7KW2.2KW
annealing powerDC. three-section annealing
suitable diameter of spoolφ300φ200-300
revise systemPID synchronous spooler
capacity for wire receiving50KG15-50KG
power source380V380V OEM
brakemagnetic brake
machine dimension2100L×1600W×1700H2068L×1538W×2074H
machine weight30002800
