Nema 34 Stepper Motor High Torque 3.5N.M - 12.2N.M With Gearbox stepper motor gear reducer

Categories Geared Stepper Motor
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Model Number: JK86HS
Certification: CE, ROHS,ISO9001
Price: US $52-120 / Pieces
MOQ: 3-10pcs
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Key word: gear stepper motor
Type: Hybrid
Step Angle: 1.8°
Holding Torque: 3.5N.m - 12.2N.m
Current / Phase: 2.8A - 6A
Voltage: 36V - 110V
Motor length: 67mm - 155mm
Wires: 4 / 8
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

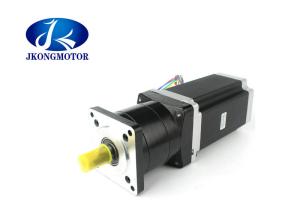

Nema 34 Stepper Motor High Torque 3.5N.M - 12.2N.M With Gearbox stepper motor gear reducer


High Torque Stepper Motor Nema34 3.5N.m - 12.2N.m With Gearbox Ratio 3:1 - 216:1


Genaral Specification of stepper motor gear reducer:
Housing Material : Metal
Bearing at Output : Ball Bearings
Max.Radial Load(12mm from flange) : ≤550N
Max.Shaft Axial Load : ≤500N
Backlash arcmin (arcmin) : ≤18

Electrical Specifications of nema 34 cnc stepper motor:


Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)(L)mmAΩmHN.mNo.Kg.cmg.cmKg
JK86HS68-30041.8683.01.27.13.540.810001.7
JK86HS68-28081.8682.81.43.92.480.810001.7
JK86HS78-55041.8785.50.4644.641.214002.3
JK86HS78-42081.8784.20.753.44.681.214002.3
JK86HS115-60041.81156.00.66.58.742.427003.8
JK86HS115-42081.81154.20.968.782.427003.8
JK86HS155-62041.81556.20.75912.243.640005.4
JK86HS155-42081.81554.21.25812.283.640005.4


Gearbox Electrical Specification of planetary gearbox:


StageOne stageTwo stageThree stage
Ratio3,4,5,610,12,16,20,24,30,3648,52.8,64,96,144,216
Length (mm) L27993107
Max.Input Rpm (Rpm)300030003000
Max.Radial load (N)550550550
Max.Shaft axial load (N)500500500
Efficiency (%)858075
Lubricating systemLong-term
