1/2 Inch - 2 Inch Y Strainer Carbon Steel A105 N CL800 SS304 Mesh SW / NPT Ends

Categories Y Type Strainer
Brand Name: Tengs Valve
Model Number: Y Type
Certification: ISO, CE
Place of Origin: China
MOQ: 1 Pc
Price: Negotiable
Supply Ability: 150 Pcs
Delivery Time: 30 Days
Packaging Details: Seaworthy Plywoods
Body Material: Forged Carbon Steel A105
Screen: SS304, SS316 (L)
Size: 1/2in - 2in
Pressure Rating: Class 800LB - 800#
Connection Ends: SW, Socket Weld, Npt, Threaded, Screwed
Other: OEM available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1/2 Inch - 2 Inch Y Strainer Carbon Steel A105 N CL800 SS304 Mesh SW / NPT Ends

Forged Strainer Y Type Carbon Steel A105 N CL800 SS304 Mesh SW / NPT Ends


Quick Details

1. Product: Forged Strainer Y Type

2. Sizes: 1/2" -2"

3. Pressure rating: ANSI 150LB - 600LB, 800LB, 800#

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: Forged Carbon Steel A105 N, LF2

6. Screen: Stainless steel (304SS, 316SS)

7. End connection: SW, NPT


Generally

1. Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.

2. Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;

B) Operating Pressure(Mpa): 0.6 ~ 13.0 Mpa

C) Body Material: A105 N, LF2, SS304, SS304L, SS316, SS316L etc.

D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.

E) Strainer Element Material: Stainless steel, Duplex Stainless Steel

F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: ISO5208 / API598


Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.


Y Type Strainer Features

A compact type strainer with low fluid resistance and requiring less installation space.

The Y type strainer can be widely used for removing dirt and dust from pipelines.

Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.


Carbon Steel Temperature-pressure rate
CL150-285 P.S.I @100° F

CL300 - 740 P.S.I @100° F

CL600 -1480 P.S.I @100° F

CL800 -1975 P.S.I @100° F

CL1500 - 3705 P.S.I @100° F

CL2500 - 6170 P.S.I @100° F


Descriptions

1. Forged Y Type Strainer Standards


1. Design and manufacture:BS 5352
2. Inspection and test:API 598
3. Structure feathers:Bolted bonnet, welded bonnet, Pressure sealing bonnet
4. End connections:
SCREWEDANSI B1.20.1 (NPT)/BS21 /BSP)
BUTTWELDANSI B16.25
SOCKET WELDINGANSI B16.11
FLANGEDANSI B16.5

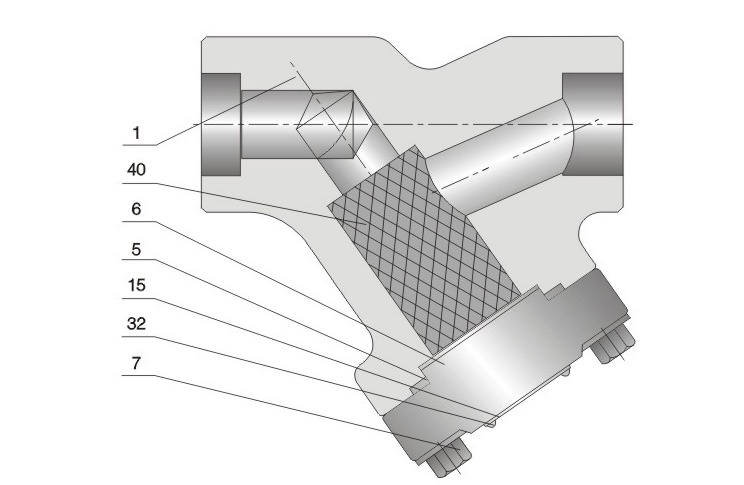

Forged Y Type Strainer Drawing

2. Main Parts and Material List For Forged Y Type Strainer


No.Part nameMaterial
1BodyA105(N)A350-LF2A182-F11
5GasketGraphite+304SS/316SS
6BonnetA105(N)A350-LF2A182-F11
7BoltB7L7B16
15NameplateStandards
32RivetH62
40Screen304SS/304LSS/316SS/316LSS

3. Main Connection Dimensions For Class 800LB

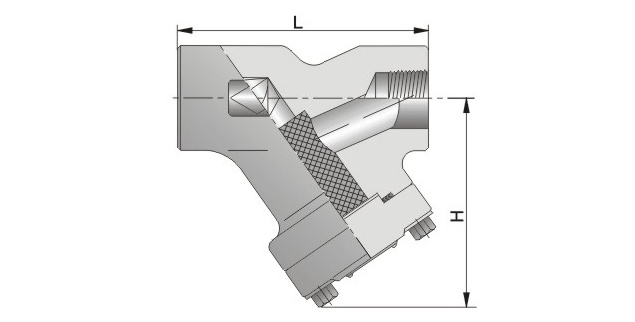

Forged Y Type Strainer Dimensions Drawing 800LB

Bolted bonnet : Full port or Reduced port

Size

(NPS)

R.P-1/23/411 1/41 1/22
F.P.1/43/81/23/411 1/41 1/2
Face to face (mm)L989898120140140170
Height (mm)H707070100110120120
Weight(kgs)2.22.22.14.28.98.910
