| Categories | Extruded Fin Tube Machine |
|---|---|
| Brand Name: | RELIANCE |
| Model Number: | Reliance-1119 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Delivery Time: | Ex-work within 2 weeks after order. |
| Packaging Details: | Solid fumigated plywooden export box. |
| Certification: | CE & ISO 9001 |
| Payment Terms: | T/T |
| Supply Ability: | One set per week. |
| Price: | N/A |
| Name: | Low Fin Tubes Fining Machine |
| Tube Material: | carbon steel, stainless Steel,copper, bronze etc... |
| Process: | Extrusion |
| Tube OD: | 12.7mm (Min.) |
| Tube Length: | No limit |
| Fin Pitch: | 19FPI,26FPI,28FPI |
| Fin Thickness: | ~0.3mm average |
| Voltage: | 415V / 50HZ (as per client's requirement) |
| Package: | plywood Box (export Packing) |
| Training: | Supplier's site OPERATION Training |
| Company Info. |
| JIANGSU RELIANCE THERMAL EQUIPMENT CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Extrusion Low Fins Tubes Machine , OD12mm ~ OD 25.4mm, 26 FPI / 28FPI / 30FPI / 36FPI
Details
| Name | Low Fin Tube Machine | Brand/Mode No | Reliance/ Mode No:1119 |
| Tube Material | 1. carbon steel,stainless steel 2. Copper/Brass/Brone 3. Titanium 4. Aluminum alloy | Popular Fins Material | Intergral tube, same as tube material |
1. Machine characters
One complete set of extrusion low fin tube Machine is consists
a. Finning head (Not including input and output racks)
b. Cooling systems for finning head
c. One FREE group is installed into machine before ex-work.
d. Drawing of finning input racks and output racks
e. Technical know-how(Operation Manual in English)
f. Operation training: Reliance's site

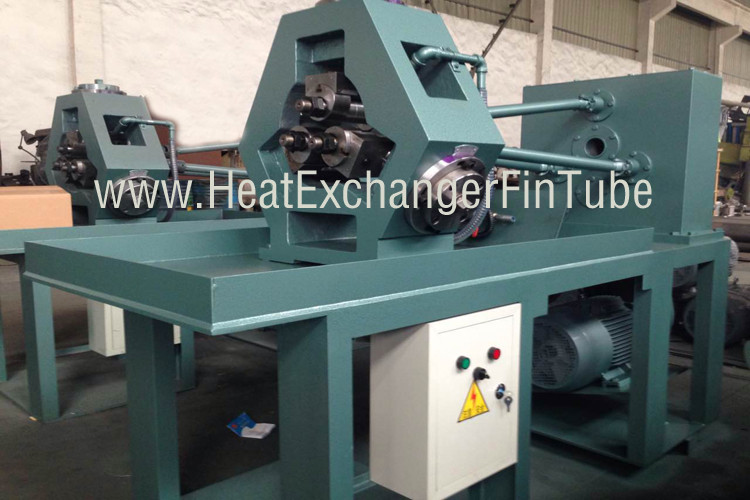

2. Machine Photos

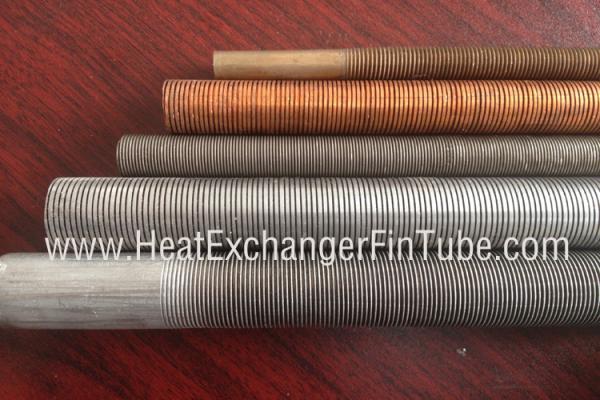

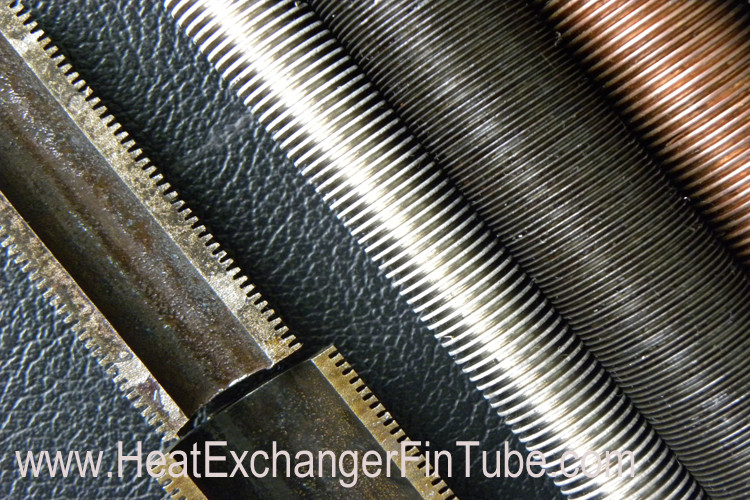

3. Products photos
|
