100% Full Space 20m*25m Modular Frame Concert Canopy Tent With Glass Wall

Categories Glass Wall Tents
Brand Name: Carpa Tent
Model Number: CTA
Certification: SGS, ISO9001
Place of Origin: Guangzhou, Guangdong, China
MOQ: 1 set
Price: Nigotiable
Payment Terms: T/T, Western Union, , L/C, D/A, D/P
Supply Ability: 30,000 square meter per month
Delivery Time: within 25 days
Packaging Details: 1)solid carton boxes. 2) pearl film or clear film. 3) PVC carry bags.
Max. Wind Load: 80-100km/h ( 0.3-0.5kn/sqm )
Roof Covers: 850g/sqm Blockout PVC Fabric
Flame Retardant: DIN4102 B1/M2/B1
Side Walls: Glass Wall
Features: Waterproof/Flame Retardant/Wind-Resistant
Connectors + Base Plates: Hop-Dip Galvanized
Custom design: Available
Roof Fabric Color: White
Application: Weddings / Parties / Events
Tent Frame: Aluminum Alloy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100% Full Space 20m*25m Modular Frame Concert Canopy Tent With Glass Wall

100% Full Space 20m*25m Modular Frame Concert Canopy Tent With Glass Wall


General Description

Carpa glass wall system adopts high-class tempered glasses panels, Aluminum sub-frame, Aluminum T frame with locks, Aluminum or galvanized steel ground frame, making your party, wedding, event
more luxury and more spotlighting than soft PVC sidewalls. The glass wall tents seem like a house, and Single or double wing doors can be incorporates into the
glass wall system.


Material Guarantee

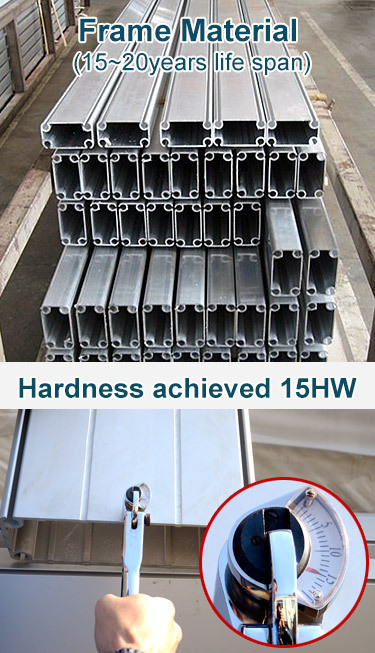

Main Profiles

Materials: Hard pressed extruded Aluminum Alloy GB6061/T6

Features: Anodized surface handling, silver color, sturdy and never rust;

Cover

Density: 850g/sqm block-out white or 950g/sqm transparent fabric for roof

Glass Wall

Materials:PVC coated polyester fabric

Features:Water proof, UV resistance, Fire retardant(DIN4102,B1,M2), flame retardant (German standard DIN4102 B1/French standard M2/Chinese standard B1)

Temperature endurance: -30°C~ +70°C.

Components

Superior enclosure with hot dip galvanized steel,the thickness over 60um;














Tents Specification

A-Frame Tent Type
ModelWidthLengthBay distanceSide heightRidge heightMax. wind load
CTA0066mUnlimited3m2.70m3.90m80km/h
CTA0088mUnlimited3m2.70m4.30m80km/h
CTA01010mUnlimited3m2.70m4.70m80km/h
CTA01212mUnlimited5m3.00m4.90m100km/h
CTA01515mUnlimited5m4.00m6.40m100km/h
CTA01818mUnlimited5m4.00m6.90m100km/h
CTA02020mUnlimited5m4.00m7.20m100km/h
CTA02525mUnlimited5m4.00m8.00m100km/h
CTA03030mUnlimited5m4.00m8.90m100km/h
CTA04040mUnlimited5m4.00m10.50m100km/h
CTA05050mUnlimited5m4.00m12.00m100km/h



Character & Feature

  1. 100% re-locatable, and unobstructed free span space;
  2. Rainproof, fire retardant, UV-protection, can be environmentally controlled in any climate;
  3. Very easy and very fast to install and dismantle;
  4. Our factory operation strictly conducted in accordance with ISO 9001 quality control standards, we own The CE/SGS (TUV) quality management system certificate.

Packing Details

  • All the little hardware parts packed in solid carton boxes.
  • All the aluminum frame packed in pearl film or clear film.
  • Tops and side walls packed in PVC carry bags.
  • Glass walls, glass doors, ABS walls packed in transportation racks.


Tent Accessories

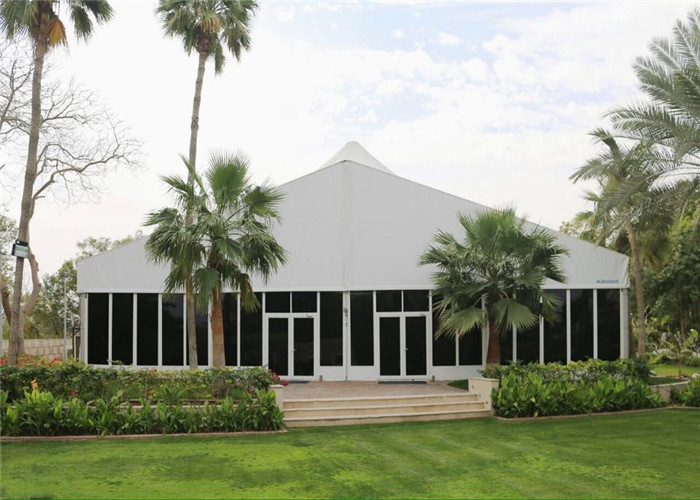

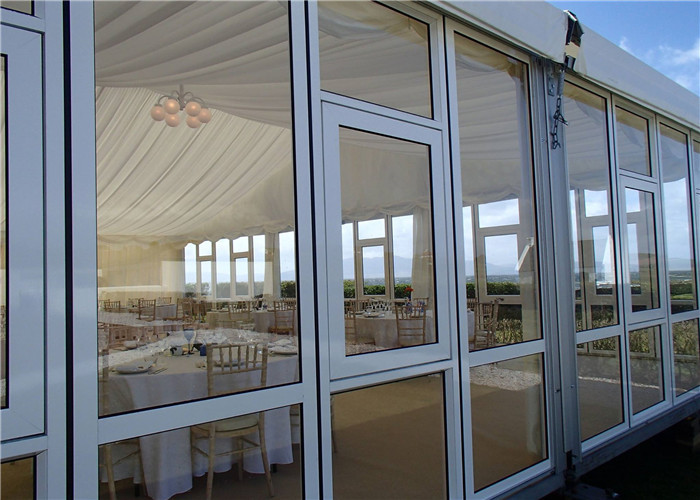

Clear Photos




Our Advantages



We warmly welcome you come to visit our factory and check our sample tents.
