| Categories | Oxygen Generator System |
|---|---|
| Brand Name: | JUNFANG |
| Model Number: | JFO-200 |
| Certification: | CE/ISO |
| Place of Origin: | Henan, China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time: | 7-20 work days |
| Name: | Oxygen Generator System |
| Oxygen purity: | 93%±2% |
| Dew point: | ≤-40℃ |
| Extract gas state: | gaseous state |
| Principle: | Compression |
| Oxygen pressure: | 0-0.5Mpa |
| Customized service: | Yes |
| Voltage frequency: | 380V220V50HZ |
Aquaculture Chemical Sewage Treatment Oxygen Generator System

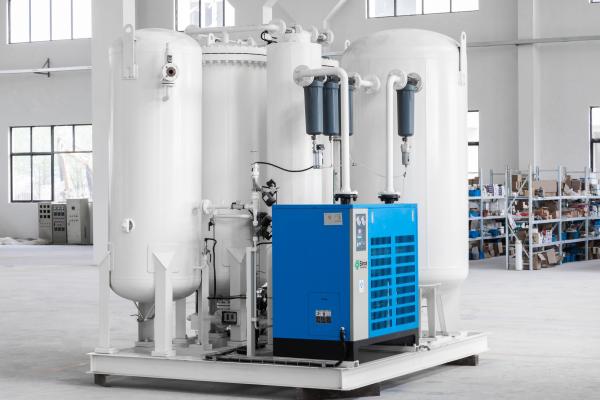

Oxygen Generator System
The raw air is compressed by the air compressor and enters the post-stage air storage tank. Most of the oil, liquid water, and dust adhere to the container wall and flow to the bottom of the tank and are regularly discharged from the drain valve. Part of it enters the compressed air purification system with the airflow.
| Model | Oxygen flow(Nm3/h) | Oxygen purity(%) | Overall dimension (mm) |
| JFO-3 | 3 | 93-96 | 1200x1200x1800 |
| JFO-5 | 5 | 93-96 | 1200×1200×20000 |
| JFO-10 | 10 | 93-96 | 1600x1500×2150 |
| JFO-20 | 20 | 93-96 | 1800x1700x2550 |
| JFO-30 | 30 | 93-96 | 1900x1700x2600 |
| JFO-50 | 50 | 93-96 | 2100×2000x2750 |
| JFO-100 | 100 | 93-96 | 5500x1550x3200 |
| JFO-150 | 150 | 93-96 | 6000×1800×3500 |
| JFO-200 | 200 | 93-96 | 6600×2000x3700 |
During the design and production, we strictly install the production process, and all products must go through strict tests after the production is completed, and only after the stable pass can they meet the standard.
|
