| Categories | Copper Busbar |
|---|---|
| Brand Name: | YUTAI |
| Place of Origin: | China |
| MOQ: | 1 ton |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 ton/month |
| Delivery Time: | 5 |
| Packaging Details: | Standard export package with care to prevent percussive damage or deformation |
| Name: | Copper Busbars |
| Feature: | Good conductivity |
| Surface Treatment: | Mill, Polishing, Mirror, etc |
| Standard: | JIS ASTM DIN EN ISO |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching |
| Cu (Min): | 99.9% |
| Application: | Distribution Centres |
| Grade: | T1, T2, TP1, TP2, C1100, C1200, etc |
What is a busbar?
Busbar is a key component used in the electricity and energy industries to conduct current between points A and B.
Examples of applications:
Distribution centres
Control centres
Transformers
Electric motors
Generators
The main material of the busbars is copper due to its good electrical conductivity. Aluminium is also used as an alternative material, but its electrical conductivity is not as good as that of copper.
| Dimension Details :- | Thickness |
| 1 mm (min) | |
| 2 mm (min) | |
| 3 mm (min) | |
| 5 mm (min) | |
| 6 mm -50 mm | |
| Width | |
| 10 mm - 50 mm | |
| 10 mm - 100 mm | |
| 10 mm - 150 mm | |
| 10 mm - 200 mm | |
| 10 mm - 250 mm | |
| Specifications :- | IS: 191, 613 & 1897, BS EN 13601:2002, ASTM B187 |
| Cross section :- | upto 3000 mm² |
| Standard :- | EN 13601: 2002, EN 13602: 2002 |
| Conductivity :- | Above 97% IACS min in Half Hard |
| Above 99.95% in annealed | |
| Purity :- | Copper - 99.9% |
| Specifications (OFC) :- | Copper: 99.99%, O |
| 2: < 10 ppm | |
| Copper: 99.90%, O | |
| 2: < 100 ppm | |
| Type :- | Rectangular, square and any corner radius, Full Round Edge |
Feature
• Greater conductivity for excellent current carrying ability
• Crack-free bends
• Developed for long-functional service
• Good dimensional control for excellent contacts
• Users specification solution

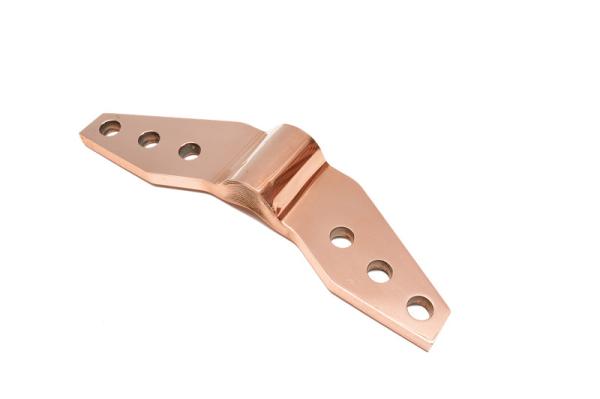

Product Show
Q2. Whether your company supports Trade Assurance order?
Yes , we can (100% product quality protection; 100% on-time
shipment protection; 100% payment protection)
Q3. Can we get the some samples? Any charges?
Yes,you can get available samples in our stock.If the samples from
new production, we will charge some reasonable cost,
but this amount will be deducted from your first order.
Q4. How do we build up business relations with your company?
Send us your requirement which includes size, coating info,
parameters, quantity, destination .
Q5. What is the MOQ?
We can accept small orders.Please feel free to contact us, we can
meet your requirements.
Q6. What's your advantage?
With high-quality products and efficient customer service, we
adhere to the principle of customer first.
Q7. How long is your delivery time?
Prompt or as your request.
Q8. What is your terms of payment ?
30%TT in advance and the balance against of copy of B/L.
|
