| Categories | Security Insect Screen |
|---|---|
| Brand Name: | YFR |
| Model Number: | insect screen |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Payment Terms: | L/C, D/A, D/A, T/T, Western Union, Western Union, MoneyGram |
| Supply Ability: | 10000m2/month |
| Delivery Time: | 12-15days |
| Packaging Details: | pallets |
| Material: | stainless steel 304/316/316L |
| wire diameter: | 0.5-1.0mm |
| Mesh: | 8mesh-12mesh |
| width: | 0.5-1.5m |
| Length: | 30m/roll |
| Screen netting material: | Stainless Steel |

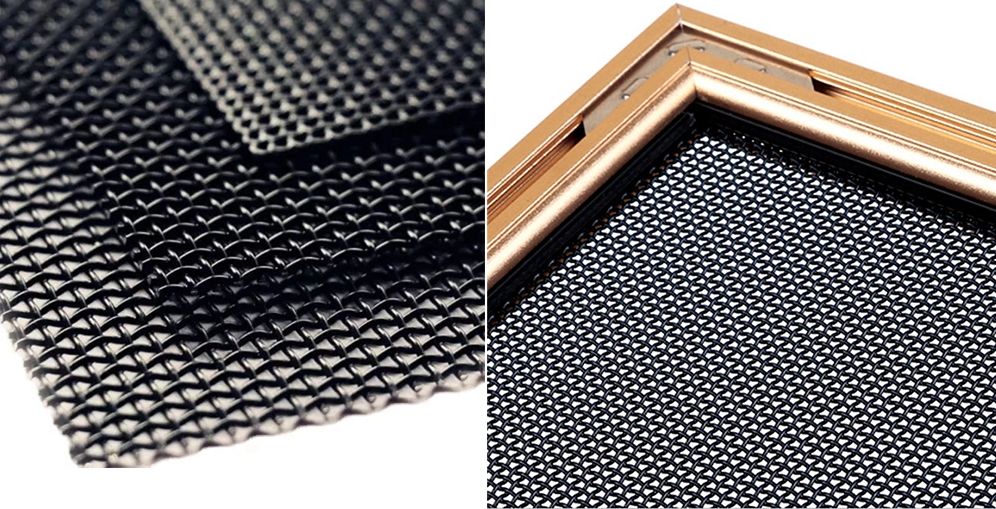

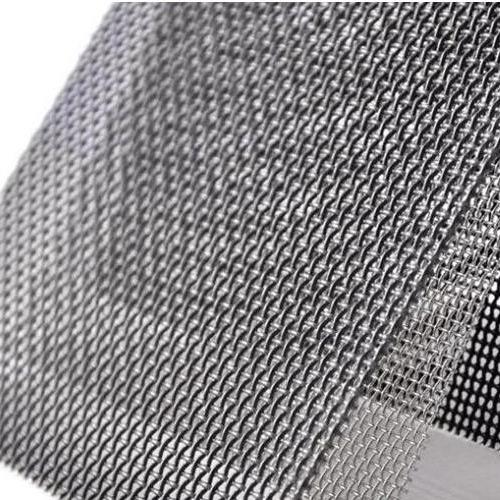

Stainless Steel Security Window Screen Insect Screen
Stainless Steel security screens are made of high-strength stainless steel wire diameter heavy-duty precision loom. The surface ofthe diamond mesh is sprayed and matt finished, mounted on aluminum doors and windows, and organically integrated into one. It hashigh-quality, simple and powerful, anti-shear, anti-impact and other high-quality performance, truly reflects the advantages ofanti-theft, insect-proof, ventilation, beauty, safety and so on.
Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire,
12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm
1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,
| Item | Security Mesh | Safety Mesh/Pet Mesh | |||||
| Material | 304 and 316 stainless steel / galvanized | 304 stainless steel | |||||
| Wire Diameter | 1/.039 | 0.9/.035 | 0.8/.031 | 0.7/.028 | 0.6/.024 | 0.55/.022 | 0.5/.02 |
| Before Coating(mm/inch) | |||||||
| Mesh (per inch) | 10×10 | 11×11 | 11×11 | 12×12 | 14×14 | 14×14 | 14×14 |
| Standard Colors | matt black, shinning bright, matt white, matt grey | ||||||
| Standard Widths | 0.914m/3ft, 1.22m/4ft, 1.52m/4.99ft | ||||||
| Standard Lengths | 31.2 meter or 102 feet per roll, customized length as request | ||||||
| Weaving Method | plain woven | ||||||
| Package | preferably flat sheet | flat sheet or roll | |||||
| Note | special specifications available upon request with minimum order quantity | ||||||
specifications | C | Si | Mn | P | S | Cr | Ni | Other | Note |
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | ≤18.0-20.0 | ≤8.0-10.5 | ||
SS304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | ≤18.0-20.0 | ≤8.0-10.5 | ||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 10.0~14.0 | Mo:2~3 | |
SS316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 10.0~14.0 | Mo:2~3 |
Light duty specification list
| Product name | Specification | Introduction | ||
| Mesh/Inch | Wire diameter | Roll size (m) | ||
| Stainless Steel insect screen | 16 × 16 | 0.35mm | 0.6 x 30.5 0.9 x 30.5 1.2 x 30.5 | Material: ss304, ss316 |
| 18 × 18 | 0.23mm | |||
| 18 × 14 | 0.28mm | |||
| 20 × 20 | 0.18mm | |||
| 24 x 24 | 0.22mm | |||
For high traffic areas, such as doors or windows, you can select our heavy duty stainless steel insect mesh. The mesh can be installed to protect windows or doors; it can also play a part to keep insects out, but also provide extra security without comprising ventilation.
Heavy duty specification list
| Product name | Specification | Introduction | ||
| Mesh/Inch | Wire diameter | Panel size (mm) | ||
Stainless steel fly screen mesh | 10 × 10 | 0.9mm | 1500 x 2500 1300 x 2600 1200 x 2000 1200 x 2400 1000 x 2400 | Material: T 304, T 316 |
| 11 × 11 | 0.8mm | |||
| 12 × 12 | 0.7mm | |||

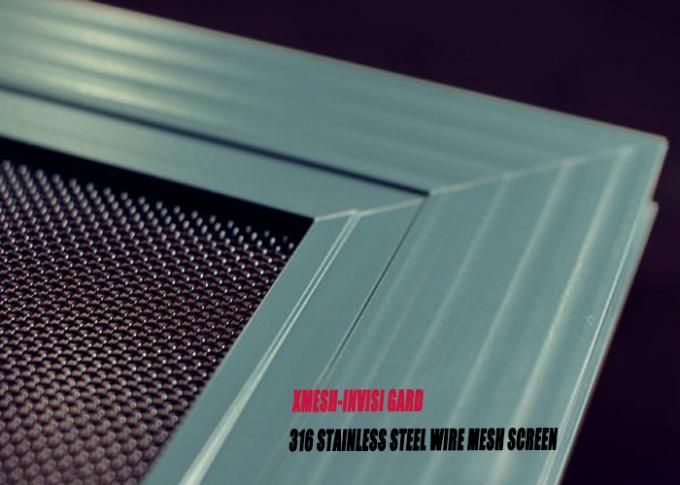

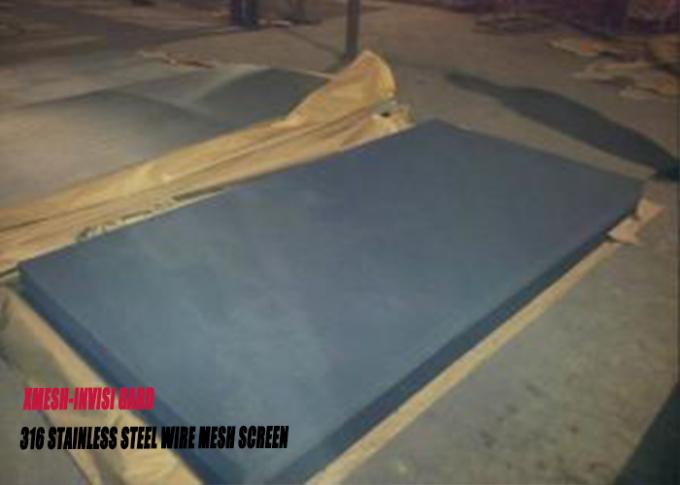

STAINLESS STEEL SECURITY WINDOW SCREEN MESH/STAINLESS STEEL
SECURITY MESH SCREEN
Stainless Steel security screens are made of high-strength
stainless steel wire diameter heavy-duty precision loom. The
surface ofthe diamond mesh is sprayed and matt finished, mounted on
aluminum doors and windows, and organically integrated into one. It
hashigh-quality, simple and powerful, anti-shear, anti-impact and
other high-quality performance, truly reflects the advantages
ofanti-theft, insect-proof, ventilation, beauty, safety and so on.
|
