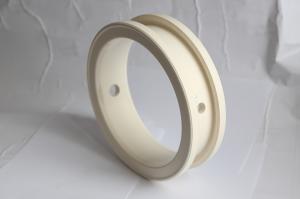

CSM Soft Seated Butterfly Valve Rubber Seat 1 - 54 Inch Size Elastic

CSM Soft Seated Butterfly Valve Rubber Seat 1 - 54 Inch Size Elastic

Chlorosulfonated polyethylene, short called as CSM.

1.1 Excellent resistance to ozone, weather, chemical resistance and discoloration.

1.2 Good heat resistance, continuous use temperature 120-140 °C, intermittent use temperature up to 140-160 °C.

1.3 Because it contains more chlorine, it has flame resistance and burns very slowly. When it is removed, it will extinguish itself.

1.4 Good oil and heat resistance, comparable to acrylonitrile 40-containing nitrile rubber, but not aromatic.

1.5 Vulcanizate has excellent dielectric properties.

1.6 Low temperature resistance.

Scope of application: Mainly used for industrial products, wire and cable sheathing, hoses, equipment lining, coatings, construction such as waterproof coating, rubber flooring, pool lining, etc. and automotive parts.

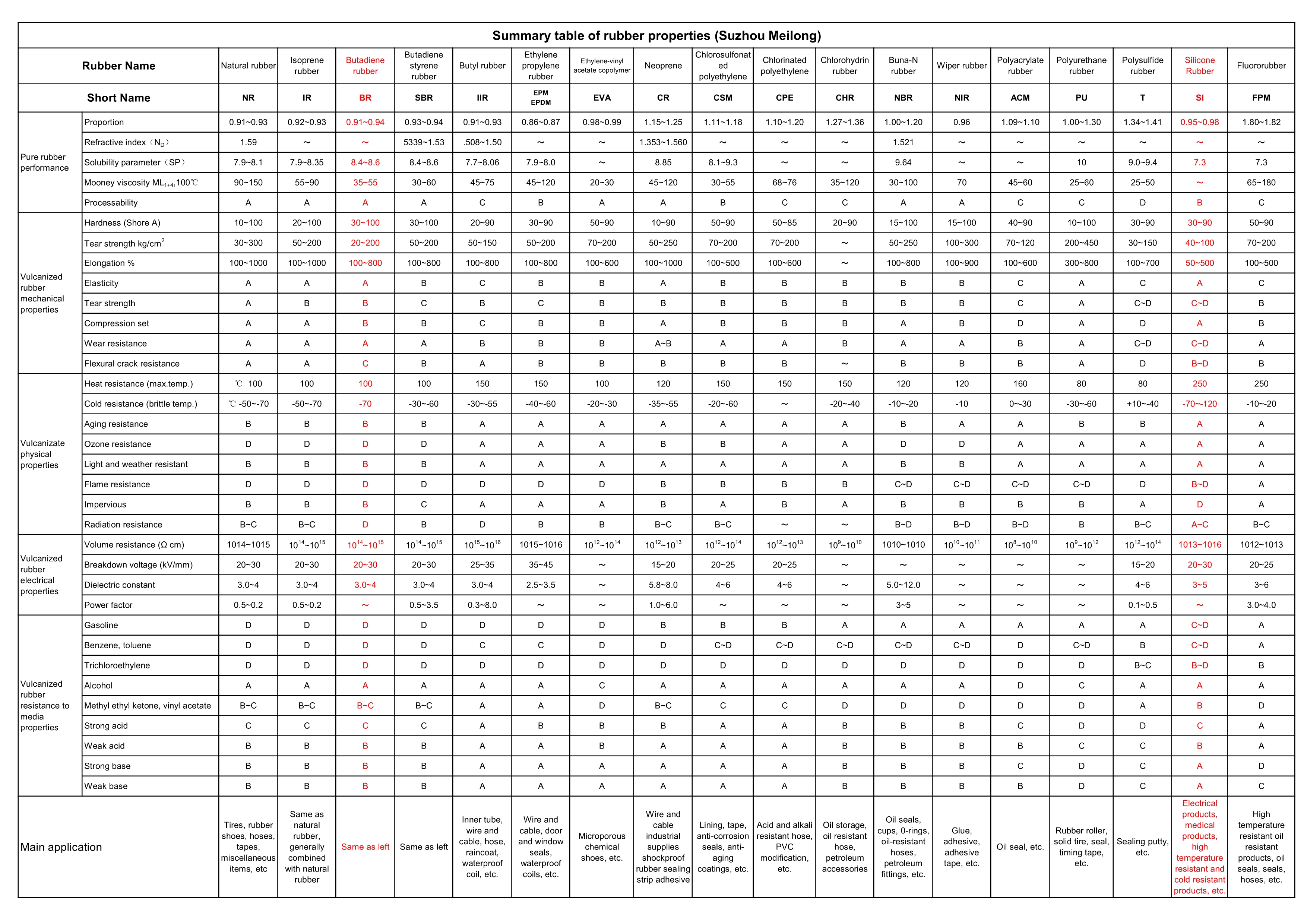

Material Quick Selection Table:

With 20 years of operating experience, Suzhou Meilong Rubber & Plastic Products Co., Ltd, with its self-developed formula of the rubbers, has obtained the German KTW, W270, British WRAS, US NSF61/372, French ACS and other water treatment industry international certifications, as well as the FDA and domestic drinking water related regulations.

Our main production lines are: all kinds of rubber valve seat for concentric butterfly valve, including pure rubber seat and with reinforcing material valve seat, size range from 1.5 inch - 54 inch. Also resilient valve seat for the gate valve, centerline valve body hanging glue, rubber disc for the check valve, O-ring, rubber disc plate, flange gasket, and rubber sealing for all kinds of valves.

Applicable mediums are chemical, metallurgy, tap water, purified water, sea water, sewage and so on. We select the rubber according to the application media, working temperature and the wear-resistant requirements.
