44 Awg Polyurthane Enamel Coil Wire To Guitar Pickup

Categories Guitar Pickup Wire
Brand Name: Ruiyuan
Model Number: 0.05mm
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin: China
MOQ: 2kg
Price: Negotiation
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Delivery Time: 2-15 days
Packaging Details: Carton
Product name: 44 AWG Polyurthane guitar pickup wire
Insulation: Polyurethane
Size: 0.05mm
Application: Guitar pickups coils
Quantity: 1.5kg/roll
Key word: 44 AWG Polyurthane guitar pickup wire
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

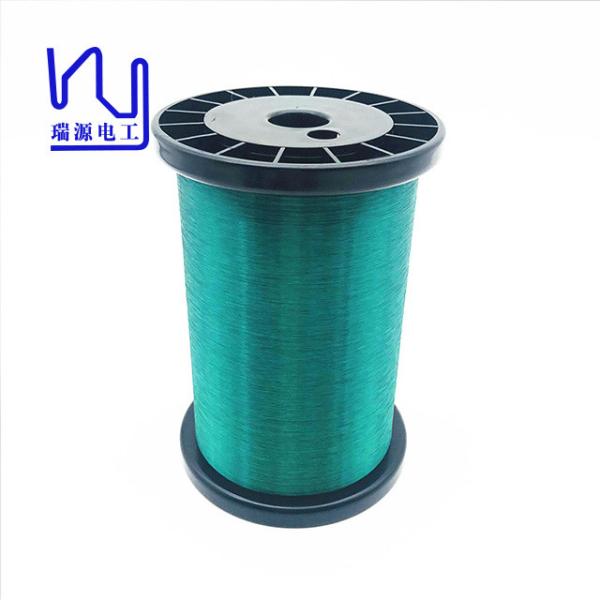

44 Awg Polyurthane Enamel Coil Wire To Guitar Pickup


44 AWG Polyurethane guitar pickup wire

Rvyuan has been “Class A” provider for guitar pickup craftsmen and pickups makers around the world over two decades. Apart from universally used AWG41, AWG42, AWG43 and AWG44, we also help our customers explore new tones with different sizes on their requests, such as 0.065mm, 0.071mm etc. Most popular material at Rvyuan is copper, there are also pure silver, gold wire, silver plated wire available if you need.


Test Item

Standard Value

Test Result

Conductor Diameter

0.050±0.002mm

0.050mm

Thickness of insulation

Min. 0.007

0.0094mm

Overall diameter

Max. 0.060mm

0.0594mm

Continuity of covering
(50V/30m)

Max. 60 pcs

Max. 0 pcs

Breakdown voltage

Min. 400V

Min. 1,628V

Resistance to softening

Continue 2 times pass

230℃/Good

Solder test(390℃±5℃)

Max. 2s

Max. 1.5s

D.C Electrical resistance(20℃)

8.6-9.0 Ω/m

8.80 Ω/m

Elongation

Min. 12%

23%

Product

44 AWG Polyurthane guitar pickup wire

Conductor diameter

0.05mm

Key word

44 AWG Polyurthane guitar pickup wire

Coating

Polyurthane
