Banbury Internal Mixer Rubber Kneader Machine 25L 45L 125L 180L

Categories Rubber Kneader Machine
Place of Origin: Shandong, China
Brand Name: HUALONG
Model Number: X(S)N55 X(S)N75 X(S)N110
Certification: ISO,CE
Packaging Details: standard packing
Supply Ability: 50 Set/Sets per Month
Price: $20000
MOQ: 1 set
Delivery Time: 30 days
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: PLC, Motor, Gear
Tilting Angle(°): 45
Compressed Air Pressure(MPa): 0.8 MPa
Feeding Mode: Front
Warranty: 1 years
Key Selling Points: High Productivity
Applicable Industries: Farms, rubber machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

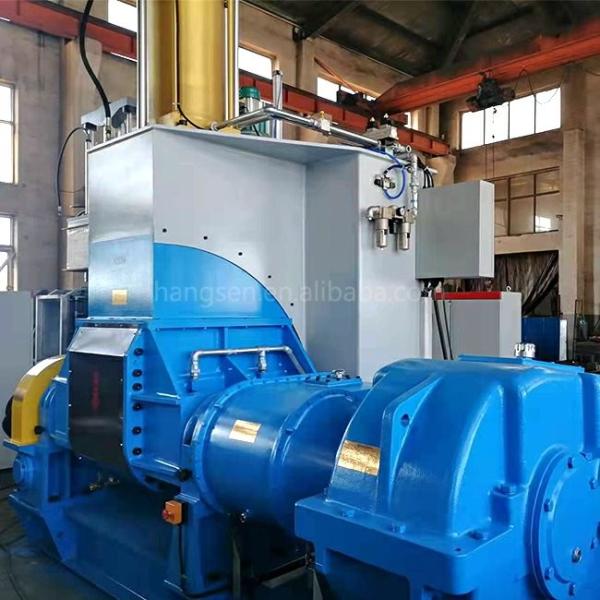

Banbury Internal Mixer Rubber Kneader Machine 25L 45L 125L 180L

Factory Price Internal Lab Rubber Productcts Dispersion Rubber Kneader Machine


Brief Introduction:

usable for rubber or plastic plasticzing and mixing or rubber and plastic blending.


Features:

1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled

2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about even distribution of the stock.

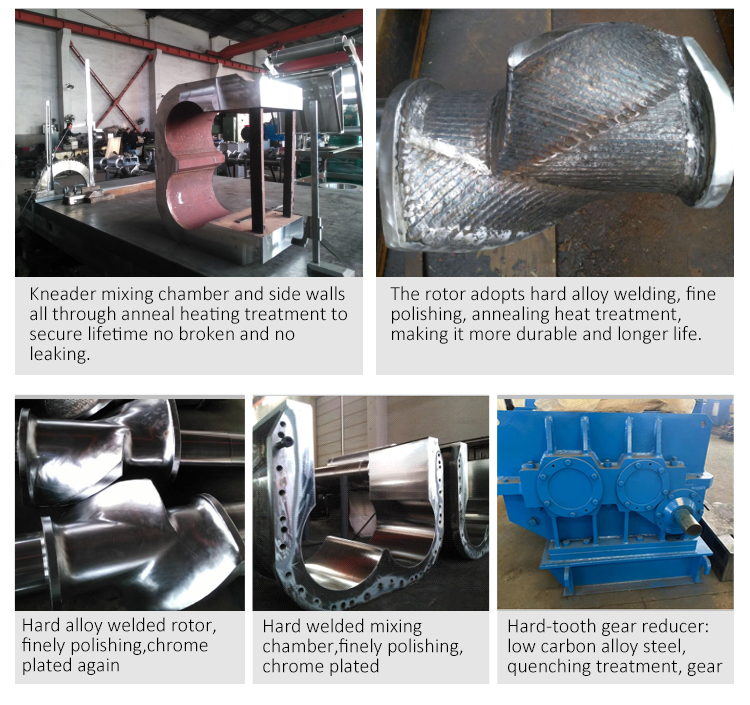

3. The rotor wings are built up by welding with the abrasion-proof carbide alloy to resist abrasion and corrosion.

4. Stock is fed through the rear door of the framework (or another port) and discharged by the mixing chamber tilting forward by 140°.

Model

X(S)N-

10X32

X(S)N-

20X32

X(S)N-

35X30

X(S)N-

55X30

X(S)N-

75X30

X(S)N-

110x30

X(S)N-

150x30

Total volume of

mixing chamber

25L45L75L125L180L250L325L

Working volume

of mixing chamber

10L20L35L55L75L110L150L

Driving motor

power

15KW30KW55KW75KW110KW185KW220KW

Tilting motor

power

1.1KW1.5KW2.2KW2.2KW4KW4KW5.5KW
Tilting angle140°140°140°140°140°140°140°

Rotational speed

of the rotor

(front/rear)

32/23.5

r/min

32/25

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

Pressure of

compressed air

0.5-0.8

MPa

0.5-0.8MPa0.5-0.8MPa0.6-0.8MPa0.6-08MPa0.6-0.8MPa0.6-0.8MPa

Capacity of

compressed air

≥0.5m³/min≥0.7m³/min≥0.9m³/min≥1.0m³/min≥1.0m³/min≥1.5m³/min≥2.0m³/min

Pressure of

cooling water

0.2-0.4

MPa

0.2-0.4MPa0.3-0.4MPa0.3-0.4MPa0.3-0.4MPa0.3-0.4MPa0.3-0.4MPa

Pressure of

heating steam

(plastic mixing)

0.5-0.8Mpa0.5-0.8Mpa0.5-0.8Mpa0.5-0.8Mpa0.5-0.8Mpa0.5-0.8Mpa0.5-0.8Mpa

Overall

dimension

2580X1300

X2280mm

2630X1520

X2550mm

3200X1900

X2950mm

3280X1930

X3070mm

3330X2620

X3340mm

3930X3000

X3660mm

4200X3300

X3900mm

Weight3300Kg4500Kg6500Kg7800Kg10500Kg14500Kg19500Kg

FAQ

I: Why choose us?

l.More than 30 years history of SHENGHUALONG factory.

6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 30 countries.

2.ISO: 9001, CE, BV certification approval.

3.Service timely, promise to give solution within 12 hours, guarantee customer trouble free.

4.Short delivery date, no delay. Accept urgent order for prompt shipment.

Q2: What about delivery date?

It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, no delay.

Accept urgent order for prompt shipment.

Q3: What's the warranty statement?

We warrants all the products manufactured by us to free from defects in material and workmanship. Under normal use of a period of 12 months or 36 months after the date of the original purchase.

And we have after warranty service: video technical support, online support, spare parts will be offered to you.

Q4: What about oversea service ?

We will arrange oversea setting up and training works if customer need. Customer should pay for accommodation, tickets and salary.
