Name: 165mm Illumination Haze Measurement Instrument 5 Inches
Brand: CHN spec
Price: 1 USD

Categories

Haze Measurement Instrument

Brand Name:

CHN spec

Model Number:

CS-700

Certification:

Place of Origin:

China

MOQ:

Price:

negotiable

Payment Terms:

L/C, T/T, Western Union, MoneyGram

Supply Ability:

1000 per month

Delivery Time:

5-7 days

Packaging Details:

Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm

Instrument Color:

White

Product Name:

Haze and Transmission Test Machine

Application:

Glass Haze Measurement

Light Source:

C,D65 and A

Standard:

ASTM and ISO

Power:

110-240V

Warranty:

1 year

Instrument Weight:

7kgs

Interface:

USB

wavelength:

400-700nm

wavelength interval:

10nm

geometry:

d/0

display:

5 inches

illumination:

16.5mm

aperture size:

21mm

haze resolution:

0.01unit

16.5mm Illumination Haze Measurement Instrument 5 Inches

0.01unit Haze Resolution 16.5mm Illumination Haze Measurement Instrument / Transmittance Haze Meter

Color and Haze Meter CS-720/Haze Meter CS-700

It is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.

Part 1. Instrument Introduction
1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.

2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

3. Open measurement area, no limit on sample size. Vertical measurement is also available.

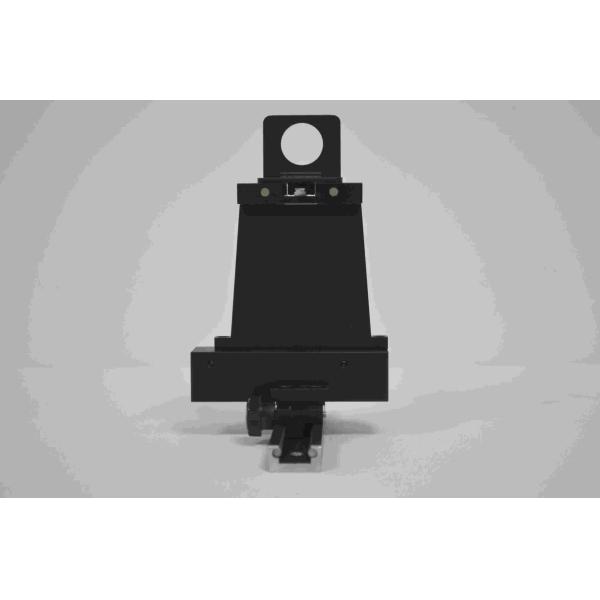

4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.

5. Instrument is with haze and transmittance measurement software.

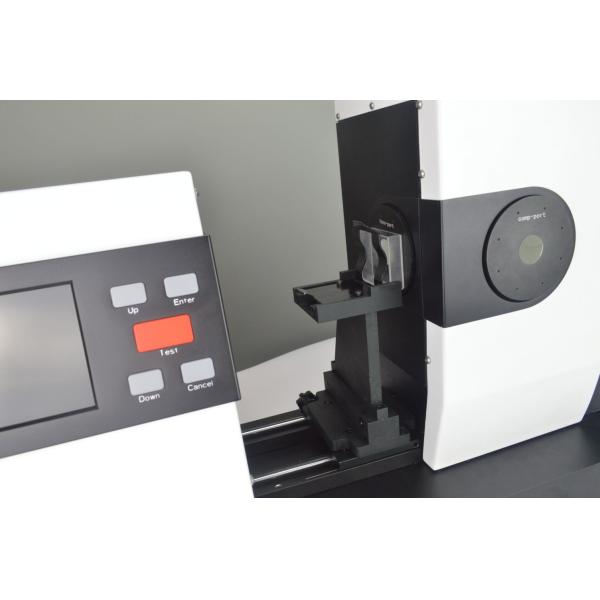

Part 2.Instrument Detail

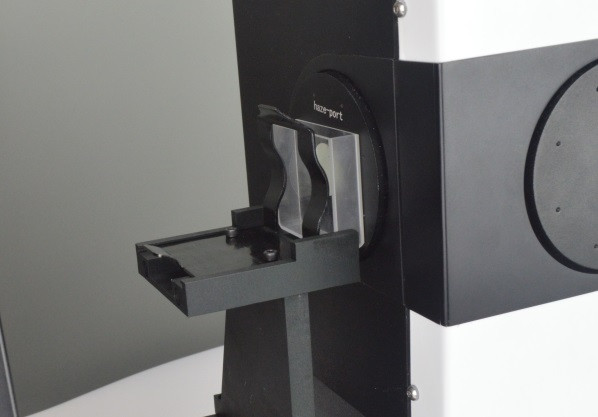

Liquid Measurement Sheet Material Measurement

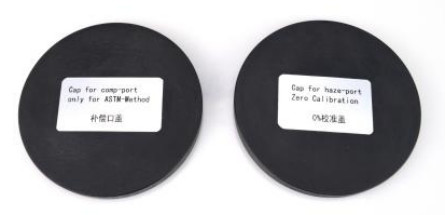

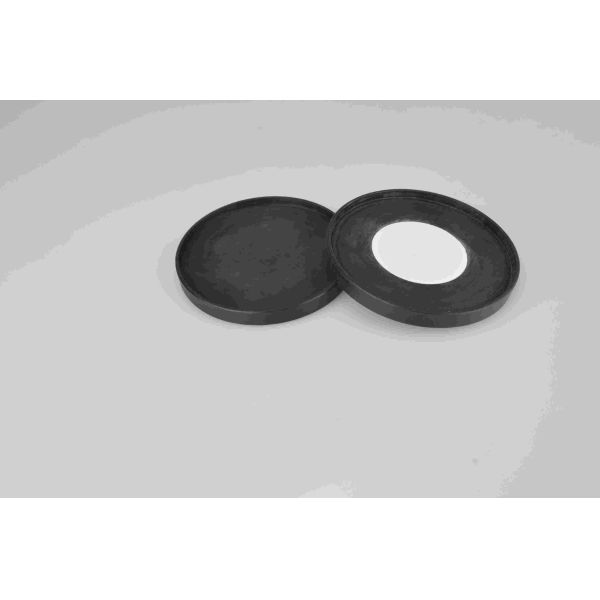

Cap for Compensation Port 0% Calibration Cap

Part 3. Technical Data

Type	Haze Meter CS-700

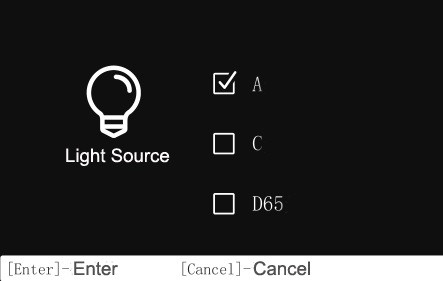

Light Source	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044 ISO13468/ISO14782
Parameters	HAZE,Transmittance(T)
Spectral Response	CIE Luminosity function y
Wavelength	400-700nm
Wavelength Interval	10nm
Geometry	0/d
Measurement Area/Sample Port	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	≤0.1
Sample Size	Thickness ≤150mm
Display	5 inch TFT LCD screen
Memory	20000 value
Interface	USB
Power	220V (with power cable)
Working Temperature	10-40 ℃
Storage Temperature	0-50℃
Size (LxWxH)	598mm X 247mm X 366mm
Standard Accessory	PC software (Color QC)
Optional	Measurement Fixture, Haze standard film

Part 4. Application Field

CHNSpec Technology （Zhejiang）Co.,Ltd. was found in 2008, and we are specializes in the R&D, production and sales of colorimeters, spectrophotoemters, haze meters, gloss meters and spectral analysis instruments, and is a leading producer in the color measurement field in China.Oue products have been widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory..We are national high technology enterprise.Till September of 2018, Hangzhou CHNSpec Technology has received 11 invention patents ,3 software copyright patents and one American invention patent.In addition there are more than 10 invention patents in the announcement state. We have published more than 20 papers which more than 10 papers in SCI and EI and others are in the national first grade journal of science and research.

Our goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility, and greater value, thus optimizing system functionality and improving operation efficiency.We wish create value for customers and achieve win-win and common development and open a new era.

CHNSpec’s one-stop service gives you complete control over the sourcing, distribution, sales, delivery and after-sales services. In addition, our attention to detail and quality of work, paired with years of industry experience, make us your perfect partner to produce outstanding results. We also offer a significant security advantage to you as we are the only organization with trusted and experienced key staff involved in the product sales. It also means effective cost control and short lead times between sales and deliveries. We put customers upon everything else, and we are trying our best to satify your all needs.We sincerely support the best services for out customers

Our quality assurance program ensures that all products continuously conform to standards, from when it was sourced to when it is awaiting delivery at our warehouse. All of our products are being tested by QC and verified by 3rd party to ensure all the specifications are strictly met.

CHNSpec will always provide on time delivery. From order taking to deliveries, we ensure all products are sent out to esteemed customers on time. Before-sales and after-sales service is paramount to us, and constantly ingrained into our staff. All CHNSpec personnel are well-equipped with deep product knowledge and trained in the marketing and sales aspect of our products. Lastly, all product queries are important to us, no matter the size and scale of it.
