Brand Name: | LKY |
Model Number: | DIN 1480 |
Certification: | CE, ISO |
Place of Origin: | CHINA |
MOQ: | 1 ton |
Price: | Negotiable |
Payment Terms: | T/T |
Supply Ability: | 200 tons per month |
Delivery Time: | 60 days |
Packaging Details: | Carton + Pallet |

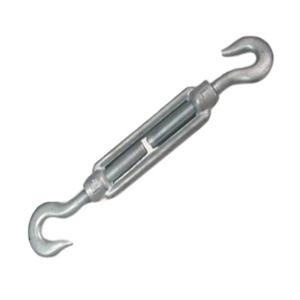

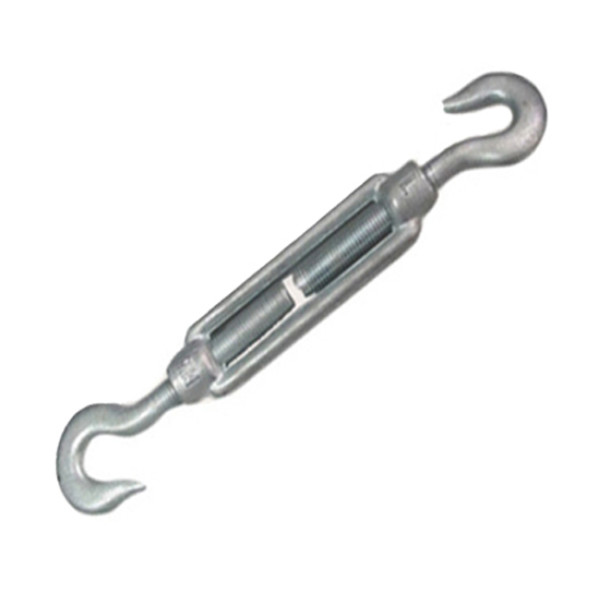

Product Name: | Electric Galvanized DIN 1480 Turnbuckle with Hook and Hook |
Material: | Carbon Steel |
Surface: | Electric Galvanized |
Size: | M5-M25 |
Type: | hook&hook |
Packing: | Cartong + Pallet |
Company Info. |
HUIXING INDUSTRY (QINGDAO) CO.,LTD. |
Verified Supplier |
View Contact Details |
Product List |
This product is made by high quality C15 steel with drop forged process. It can resists pitting and corrosion by most chemical, and is particular resistant to saltwater corrosion. And its hook and hook type can be used in the occasion of been removed often. So, it can be widely used in large construction site, large factory, shipping and bridge constraction because of its special performance and appearance.
product details:
1. Model NO.:DIN 1480
2. Material:C15
3. Type:Hook & Hook
4. Usage:Marine Industry
5. Installation:External
6. Condition:New
7. Surface:Electric Galvanized
8. Technology:Drop Forged
9. Size:M5-M25
10. Export Markets:Global
11. Packing:Carton with Pallet
12. Standard:ISO, CE, SGS

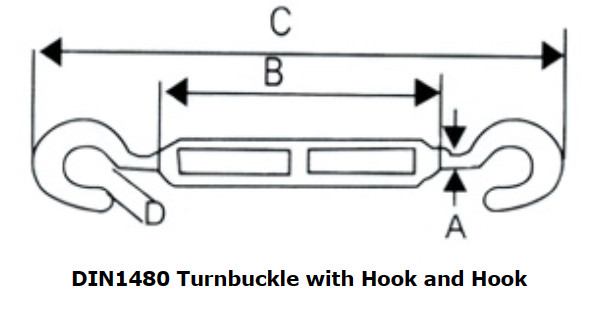

Specification:
A | B | C | D | WLL | WT |
(mm) | (mm) | (mm) | (mm) | (T) | (Kg) |
M5 | 70 | 130 | 9 | 0.1 | 0.08 |
M6 | 100 | 160 | 9 | 0.25 | 0.11 |
M8 | 125 | 200 | 10 | 0.35 | 0.21 |
M10 | 150 | 245 | 11 | 0.5 | 0.34 |
M12 | 200 | 300 | 14 | 1 | 0.65 |
M16 | 250 | 400 | 18 | 1.5 | 1.3 |
M20 | 300 | 480 | 20 | 2.3 | 2.5 |
M10 | 325 | 520 | 22 | 3.2 | 3.93 |
M25 | 350 | 560 | 26 | 4.5 | 5.89 |
