Double Output Shaft Square Right Angle Worm Gear Reducer Motor JGY-370S 6/12/24V 6-160RPM Self-Locking Reducer Motor

Categories DC Worm Gear Motors
Brand Name: ASLONG
Model Number: JGY-370SZ
Certification: CE
Place of Origin: China
MOQ: 1
Price: negotiation
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per days
Packaging Details: bubble + carton
Home improvement: 12v dc motor
Usage: home applicance
Commutation: Brush
Motor type: PM big power brush dc motor with reducer
gear arrangement: worm gear box reducer
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

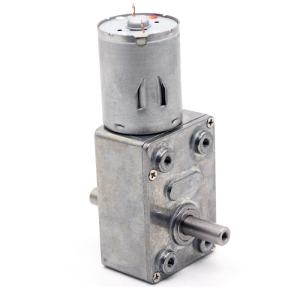

Double Output Shaft Square Right Angle Worm Gear Reducer Motor JGY-370S 6/12/24V 6-160RPM Self-Locking Reducer Motor

Jgy370 Dual Shaft DC Worm Gear Motors

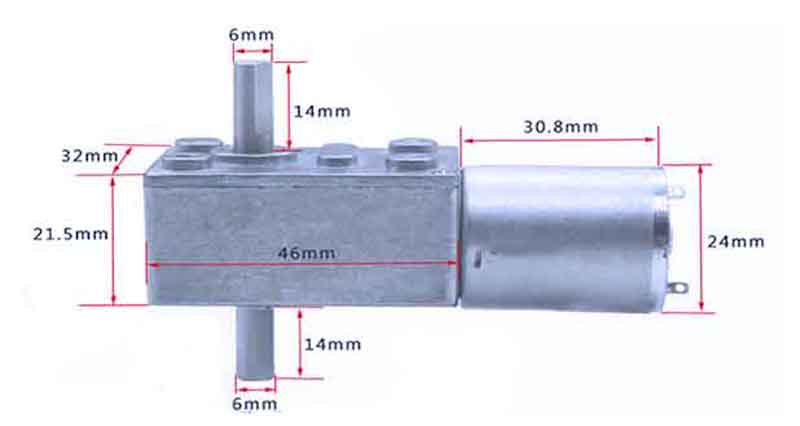

JGY -370sz dual shaft worm gear motor


Worm gearbox Micro Dc Gear Motor Description:

Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:


JGY-370

JGY-395

JGY-385

5840-31ZY

5840-36505840-555JGY-24305882-4260

Description:

1. Standard Operating Conditions

1-1 Rated Voltage:6v 12v 24v.

1-2 Direction of Rotation:CW when viewed from output shaft side

1-3Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.

1-4Storage Temperature:Temperature range of -20C~+60C

2. Measuring Conditions:

2-1Motor Position:To be place t horizontally when measuring

2-2Power Supply: Regulated DC power supply

-- No load speed:4-115rpm.

-- Robotics, Small Appliance, Fanner, Electric Curtain;

-- Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device

-- Electric motor,low noise,low current and no spark.

Ratio:1/37.3,1:65/,1:90/1/150,1/200,1/260,1/324,1/600,1/972/1:1800 1:2900

Motor Engine : 12V 6000R 24V8500R


Remark:Pls confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering,we will random send one for this type,hope your kindly understanding.

* worm gear motor Technical datasheet:


TypeModel:JGY-370Parameter
VoltageNo LoadLoad TorqueStallReducer
RatedSpeedCurrentSpeedCurrentTorqueOutputTorqueCurrentRatiosize
Volt.VrpmmArpmmAkg.cmWkg.cmA1:00mm
6606V160601283000.223237.346
6V10060803000.52626046
90
6V4060322700.8215215046
6V2460192702220225046
6V1960152704.5230232446
6V106082606.7260260046
6V660526092ban297246
6V460326015.92ban2170046
6V2602260302ban2290046
126012V160451282700.741.741.737.346
12V100458027011.771.76046
12V4045322302.21.7111.715046
12V2445192303.71.7181.725046
12V1945152304.81.7241.732446
12V1045823091.7ban1.760046
12V6455220141.7ban1.797246
12V4453200251.7ban1.7170046
12V2452200431.7ban1.7290046
246024v160261281800.41.52137.346
24v10026801800.81.5416046
24v4026321801.81.59115046
24v24261918031.515125046
24v1926151803.81.519132446
24v1026818071.535160046
24v6265180111.5ban197246
24v4263180201.5ban1170046
24v2262180401.5ban1290046
