| Categories | Tension Compression Force Sensor |
|---|---|
| Brand Name: | FIBOS |
| Model Number: | FA403 |
| Certification: | ISO CE RoHS |
| Place of Origin: | Jiangsu, China |
| MOQ: | To Be Negotiated |
| Price: | To Be Negotiated |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Pieces per Month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | 1.Opp bag 2.Custom box 3.According to your request |
| Product name: | Tension Compression Force Sensor |
| Capacity: | 10,20,50,75,100,150kN |
| Rated output: | 2.0±10%mV/V |
| Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.1%F.S. |
| Material: | Stainless steel |
10-150kN Stainless Steel Tension Compression Force Sensor
1. Descriptions
10-150kN Stainless Steel Tension Compression Force Sensor FA403 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA403 can be used to measure tension and compression force 10kN,20kN,50kN,75kN,100kN and 150kN capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±0.05mV/V.
2. Specifications
| Product name | Tension Compression Force Sensor |
| Capacity | 10,20,50,75,100,150kN |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.2%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 2x3000mm |
| Weight | 0.2kg |
| Material | Stainless steel |

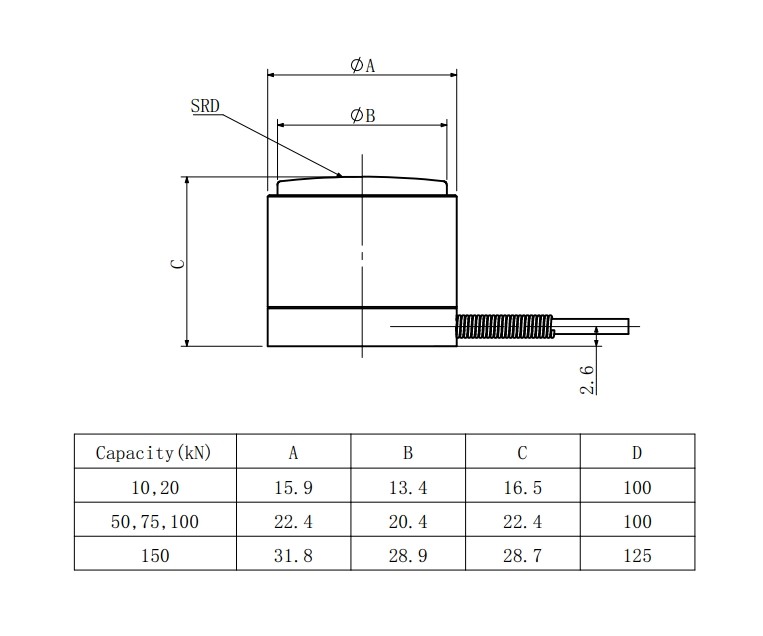

3. Dimension
4. Application
10-150kN Stainless Steel Tension Compression Force Sensor FA403 can be used in machine building.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
|
