Name: 5 Ton XCMG Wheel Loader Cummins Engine ZL50GN With Earthworks
Brand: XCMG
Price: 1 USD

5 Ton XCMG Wheel Loader Cummins Engine ZL50GN With Earthworks

XCMG Wheel Loader 5 Ton Cummins Engine ZL50GN With Earthworks

Product Features of loader

Main parameters

Rated load: 5 ton

Bucket capacity : 2.5~4 M3

Operating weight:17.5 ton

Main configuration

Optional parts:

* Grasping grass pliers / Sliding fork / Standard bucket/ Side dumping / Light material Blade bucket 3.5m3 /4m3/4.5m3,2.5m3 bucket.

Performance Highlights:

Heavy load for the condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
The largebucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
160kN breakout force handle allkinds of materials with ease,≥3.5m high dumping capacityhandle the severe conditions with ease.

Product Parameters

Overall dimensions	Overall length (bucket on the ground)	8165 mm
	Overall width	2850 mm
	Bucket width	3016 mm
	Overall height	3485 mm
	Wheel base	3300 mm
	Tread	2250 mm
	Min. ground clearance	450 mm
Specification	Rated capacity	5000 kg
	Bucket volume	2.5 m3 (Bucket for rock)
		3 m3 (Standard bucket)
		3.5 m3 (Bucket for light material)
		4 m3 (Bucket for light material)
Operating weight		17500kg±300kg
Traveling speeds	Forward1/Reverse 1	0~11.5/0~16.5 km/h
	Forward 2/Reverse 2	0~38 km/h
	Forward 3/Reverse 3
	Forward 4/Reverse 4
	Max. tractive force	165±5kN
	Max. climbing gradient	30 º
	Max. dumping angle	45 º
	Max. dumping height	≥3100 mm (main cutting edge)
	Dumping reach	≥1100 mm (main cutting edge)
	Dumping angle of bucket	≥45 º
Max. Breakout force	Breakout force of bucket	170 KN
	Breakout force of lifting	134 KN
	Maximum digging depth	40 mm (the bucket bottom is level)
	Lifting time of boom	≤6 s
	Total cycling time	≤11 s
Min. Turning radius	Outside of the bucket	7300 mm
	Center of the tyre	6400 mm
	Turning angle of the chassis	35 º
	Oscillating angle of the rear axle	±12 º

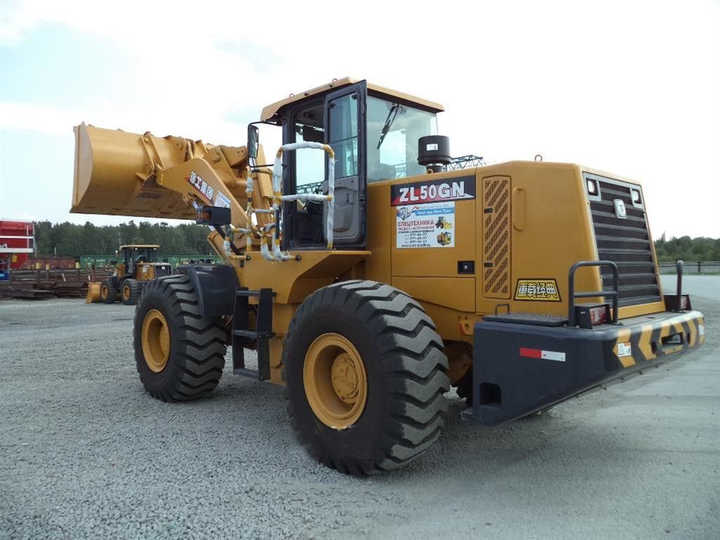

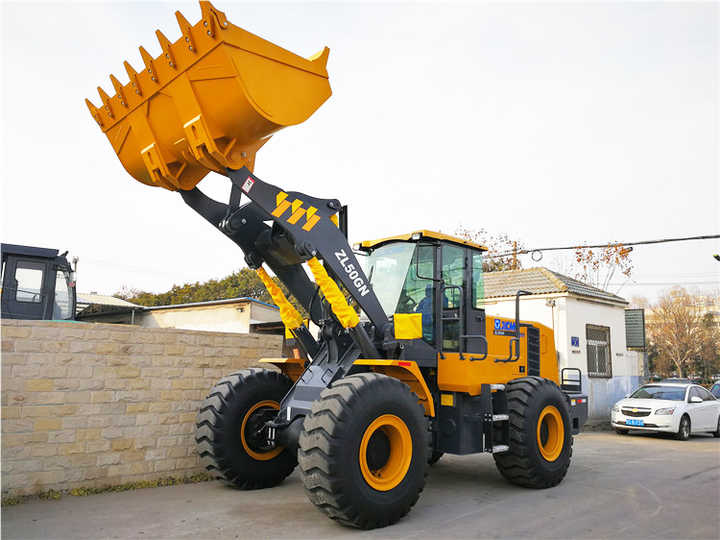

Photo Show

Product Tags:

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shandong Heavy Industry Machinery Co.,Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Wheel Loader
Brand Name:	XCMG
Model Number:	ZL50GN
Certification:	ISO9001
Place of Origin:	CHINA
MOQ:	1 Piece
Price:	Negotiation
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000pcs/month
Delivery Time:	Full Payment 15-30 Work Days
Packaging Details:	by Sea/by Bulk/by Frame/Container
Rated loading capacity:	5T
Power:	126kw
Bucket capacity:	2.5m3
Wheel base:	3300 mm
Tread:	2250 mm
Min. ground clearance:	450 mm
Rated capacity:	5000 kg
Max. tractive force:	165±5kN
Breakout force of bucket:	170 KN
