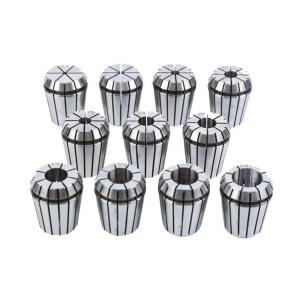

DIN6499B Standard ER Collet 65Mn Material Machining Collet ER25

ER Collet with 65Mn Material & DIN6499B Standard er collet chucks

High Accuracy Clamping 1-20mm CNC ER32 Spring ER Collet ,It is a kind of cylindrical fixture used to imprison drilling and milling tools or milling tools, also known as Er collet. It can also be used to fix and strengthen a kind of fixed locking device of parts to be processed. Er spring chuck has large clamping force, wide clamping range and good precision. It is widely used in boring, milling, drilling, tapping, grinding and carving. Er chuck, a kind of spring chuck, is generally used for CNC tool holder

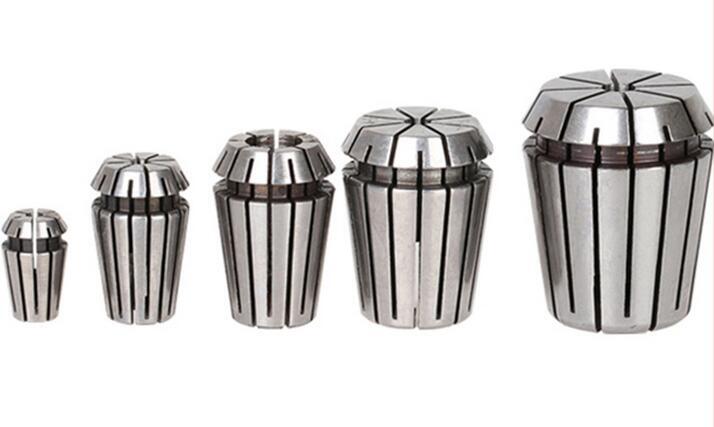

ER Collet Chuck Set /ER20 ER32 ER25 ER40 ER16 ER Collet for drilling milling tapping grinding er collet

1.ER Collets are applied for a variety of processing,including drilling, milling,tapping&grinding.
2.material: 65Mn er collets. standard: DIN6499B

3.hardness:HRC 44-48.

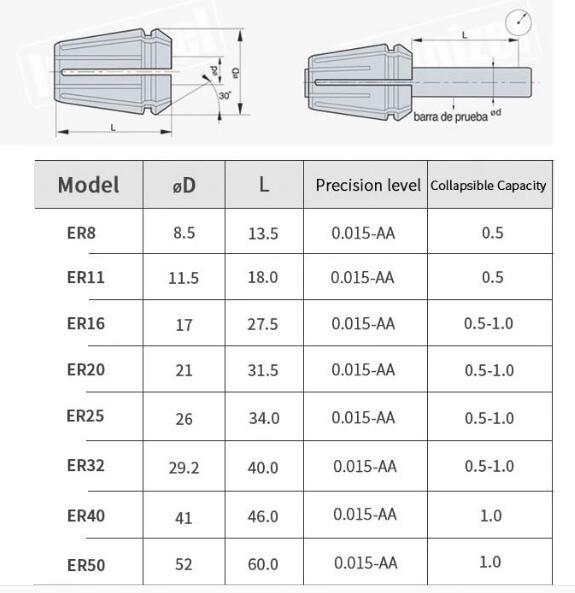

4. full size: ER8,ER11,ER16,ER20,ER25,ER32,ER40,ER50.

spring ER collet is a type of collet that is used to hold tools in place in a machine spindle. It is commonly used in milling, drilling, and turning operations. The collet consists of a cylindrical body with a series of slits that allow it to expand and contract. Inside the collet, there is a set of springs that provide the necessary gripping force to hold the tool securely.

The spring ER collet is designed to be used with ER collet chucks, which are typically found in CNC machines. The collet chuck has a matching taper that allows the collet to be inserted and tightened. When a tool is inserted into the collet, it is held in place by the springs, which exert a radial force on the tool.

One of the advantages of using a spring ER collet is its versatility. It can accommodate a wide range of tool sizes, as long as they are within the collet's specified range. This makes it a cost-effective solution for shops that use a variety of tool sizes.

Another advantage of the spring ER collet is its high gripping force. The springs inside the collet provide a strong clamping force, ensuring that the tool remains securely in place during machining operations. This helps to minimize tool slippage and improve machining accuracy.

In conclusion, a spring ER collet is a versatile and reliable tool holding solution for CNC machines. It provides a strong gripping force and can accommodate a wide range of tool sizes, making it a popular choice in the machining industry.

JINING QINFENG MACHINERY HARDWARE CO.,LTD Chinese Machine ToolAssociation member units,production of spring chuck`s professional factory , known as machine tool accessory manufacturing experts. The fixed assets of 10million yuan,with CNC Lathes,CNC milling machines,machining centers,high-precision grinding,cylindrical griding, etc.more than 180 sets of advanced equipment.Self-development, Production of collets,milling chuck,quick change chuck ,tapping chucks,machine tool accessories and other top-selling across the country To, and exported to the U.S.,JAPAN,Taiwan and other countries and regions, and can take over fro m sample to map processing. Advanced production Equipment, strong technical force and perfect management system, excellent product quality ,the majority of uses. We always adhere to the [dry quality, fist class" business policy and [the pursuit of customer satisfaction is the biggest,"the service Business philosophy.

JINING QINFENG MACHINERY HARDWARE CO.,LTD. is willing to work with friends to create a better tomorrow. Main product o services: machine tool accessories;milling chuck series; top series; collet series; tapping chuck system column; quick-change chuck series; adjustable sets of series; to sample processing. Industry: machine tool accessories chuck top, thimble CNC tool. JINING QINFENG MACHINERY HARDWARE CO.,LTD, the company all staff sincerely hope to establish business relations with customers from home and abroad on the basis of mutual benefit, for the development of bilateral economic, hand in hand, create brilliance.
