BT40 APU13-105 BT Tool Holder Keyless Drill Chuck 13mm Clamping Range Drill Chuck

BT40 APU13-105 Keyless Drill Chuck, 1mm-13mm Clamping Range drill chuck keyless,chuck tool

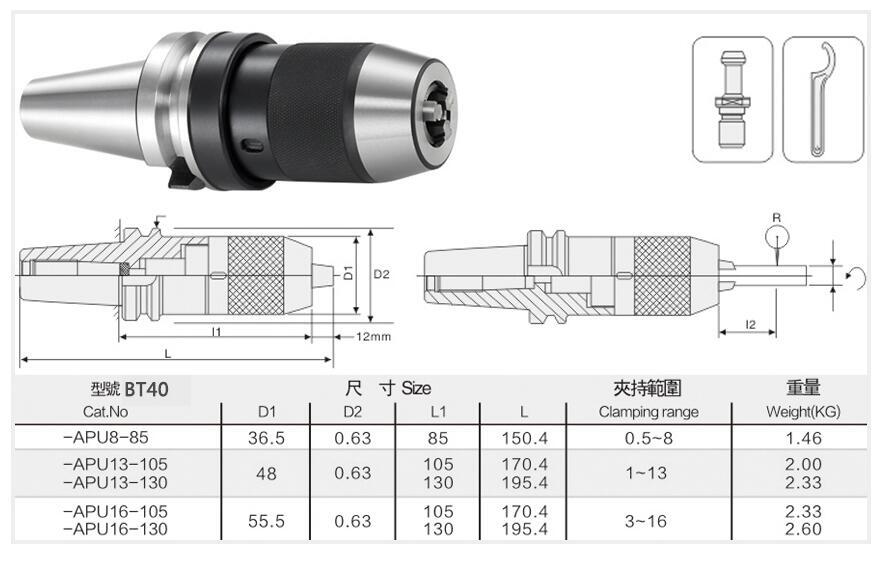

BT40 APU Drill Chuck Keyless drill chuck,BT APU drill chuck ,There are five common types of tool holder for BT40 drill chuck: the clamping range of BT40 APU8-85 is 0.5mm-8mm, the clamping range of BT40 APU13-105 is 1mm-13mm, the clamping range of BT40 APU13-130 is 1mm-13mm, the clamping range of BT40 APU16-105 is 3mm-16mm, and the clamping range of BT40 APU16-130 is 3mm-16mm. BT APU drill chuck is made of titanium alloy 20CrMnTi. After heat treatment, it has better elasticity and wear resistance, high precision, stable performance and wear resistance. BT APU drill chuck Tool handle hardness 58-60 degrees, low noise, low wind resistance, high repetitive clamping accuracy. BT APU drill chuck mainly used for drilling, milling, reaming, tapping and grinding tool holder use.

Features for CNC BT40 Integral 1-13mm Keyless Type Drill Chuck
1.Drill Chuck Material: alloy steel 40Cr
2.Keless drill chuck Brand name: XZH
3.Bt Tool Holder Hardness: 56-58
4.Drill Chuck taper tolerance: <at3
5.Tool Holder Carbon depth: 0.8mm±0.2mm
6.CNC drill chuck Max run out : <0.005mm
7.Surface roughness: Ra<0.005mm
8.Precision and RPM: G6.3 or G2.5
9.Tool Holders For Cnc Machines,Standard for shank body: MAS403 & B6339

BT APU DRILL CHUCK

1.This integrated design can prevent drill chuck separate accidently with arbor.
2.High precision,big grip force,high Reliability.
3.Flimsy parts are shaped by quenching.
4.Self-tighting feature automatically increase gripping proportional to incrased torque to prevent tool shank sliping.

Tool Holders For Cnc Machines,BT APU collet chuck MAS403 are often applied on precise milling,drilling or other CNC processing.
And the cooling type is customizable according to our customers' requirement with:
Tool Holder Form A, without cooling supply
Form AD, central cooling supply
Bt Tool Holder Form AD+B, central cooling and internal coolant through the collar

Machine tools BT-APU Integrated Keyless Drill Chucks , Drill Chuck with 8mm 13mm 16mm size are made of high quality steel material, with hardness of HRC56-60. We produce all size of BT ER tool holders including BT30/40/50 APU tool holder series. We also manufactures kinds of CNC machine tool accessories including collet chucks, pull studs, retention knob, spanner and wrench and other related products.
