| Categories | SMT Cover Tape Extender |
|---|---|
| Brand Name: | KangHongJin |
| Model Number: | M11 series |
| Certification: | RoHS |
| Place of Origin: | Guangdong, China |
| Product Name: | M11 series |
| Material: | PET |
| High Light: | Splice tape extenders, SMT splice cover tape extender, Smt Cover Tape Extender, SMT anti-static cover tape extender |
| DESCRIPTION |

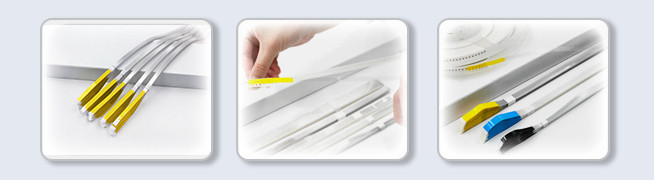

SMT Cover Tape Extenders are designed to extend cover tape when little or no leader is available. |
| This avoids wasted components and reduces the feeder load time. Quickly adhere the pre-cut strips |
| and elongate reels of all sizes. Ideal for partially cut reels. |
Part (reel) | Dimensions (pc) | Package |  |
| M1108 (8mm) | 396mm x 5mm | 500pcs/box | |
| M1112 (12mm) | 396mm x 7mm | 500pcs/box | |
| M1116 (16mm) | 396mm x 9mm | 500pcs/box | |
| M1124 (24mm) | 396mm x 18mm | 250pcs/box |
 |
| APPLICATION | ADVANTAGES |
1. Strips of PET tape used as a leader to avoid | 1. Non-skid leader tape material |
wasted components | 2. Strong adhesive bond |
2. Perfect for use on partially cut reels | 3. Reduce lost components |
3. 32mm-44mm widths available upon request | 4. Reduce feeder load time |
4. All sizes available in 396/508mm length |
INSTRUCTIONS
1. Remove the release liner to reveal the adhesive side. |
2. Align with the front edge of the carrier tape. |
3. Stick the complete adhesive strip onto the component cover tape and press firmly. |
4. Feed the non-adhesive side into the feeder. |
 |
