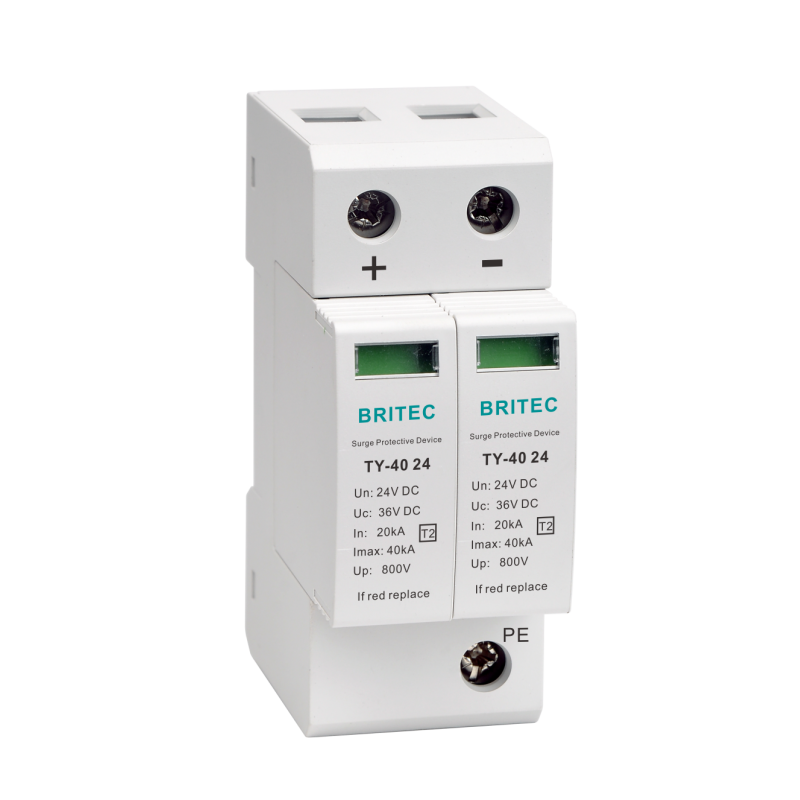

TY-40 24V 40KA DC Surge Protection Device with Thermoplastic UL94-V0 Material for Solar Systems

TY-40 24 24V Solar Surge Protection Device DC SPD Type 2

Professional DC surge protection device designed for industrial applications with Type 2 classification and 40KA surge capacity.

Applications

Direct current surge protection and over voltage protection in low voltage DC power supply systems
Overvoltage protection for electronic equipment powered by direct-current power supply

Product Details

Specification	Value
SPD classification according to IEC61643-31	Class II
Operating Voltage Un	DC 24V
Max. Continuous Operating Voltage Uc	DC 36V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level Up	＜800V
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Technology	MOV
Format	Plug-in modular
Protection Mode	+/PE,-/PE
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20
Standards compliance	IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1

Dimensions

Product Features

C-level overvoltage protection device designed according to IEC and GB standards
Protects electrical systems and equipment from thunder and instantaneous over-voltage
Available in various power supply voltages with corresponding specifications
Removable assembly for easy plug and unplug operation
High temperature resistant plastic with excellent tightness and easy wiring installation
Guide rail installation for simple operation
Temperature control circuit technology with built-in over current breakers and thermal fuse circuit breakers
High energy MOVs with specific thermal disconnections and failure indicators
Dustproof, anticorrosion and other protective functions
Parallel installation on DC networks for common and different modes protection
Long-term stability in relatively harsh environments
Remote signal port for remote alarm control

Product Advantages

Modular design
No follow currents
High MOV resistance
Customizable color and logo
35mm DIN rail mounted
High discharge capacity
Customizable packaging
Mechanical status indicator
Easy changing of surge protection module

Company Information

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs including AC surge protectors, DC surge protection, LED lighting surge arresters, data surge protective devices and more. Located in Yueqing, Zhejiang, China with convenient transportation, excellent quality, competitive prices and reliable service.

Certifications

Frequently Asked Questions

Q1. Where is your factory?

A: Our factory is located in Yueqing city, Zhengjiang Province.

Q2. When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please tell us in your e-mail so that we will pay more attention to it.

Q3. How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality. If you need the sample, we will charge for the sample fee and express fee. Moreover, the sample fee can be refunded after you place the order to us.

Q4. What kind of files do you accept for drawing?

A: PDF, Core Draw, high resolution Jpg, etc.

Q5. Can you do the design for us?

A: Yes, we have a professional team having rich experience in design and manufacturing. Just tell us your idea. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
