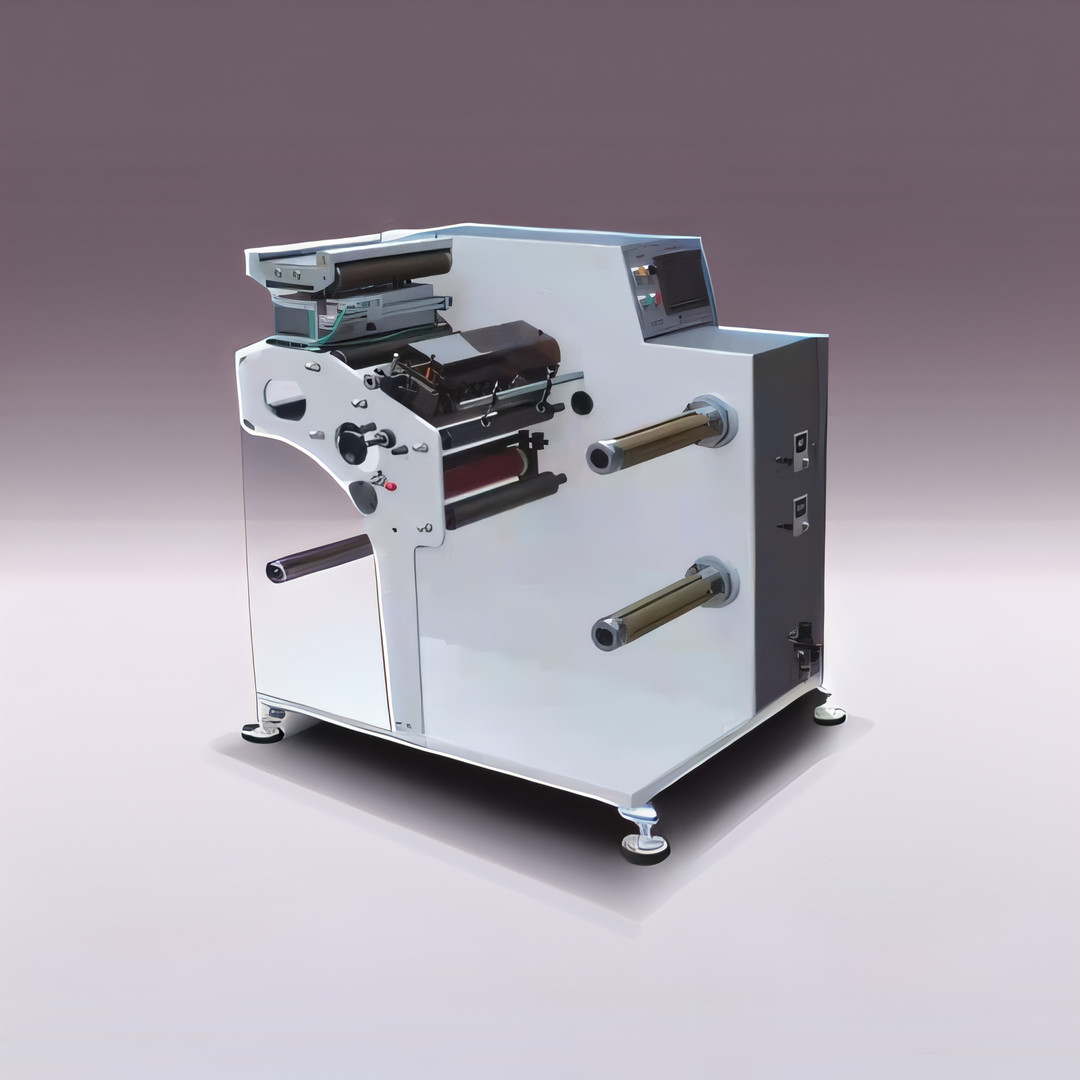

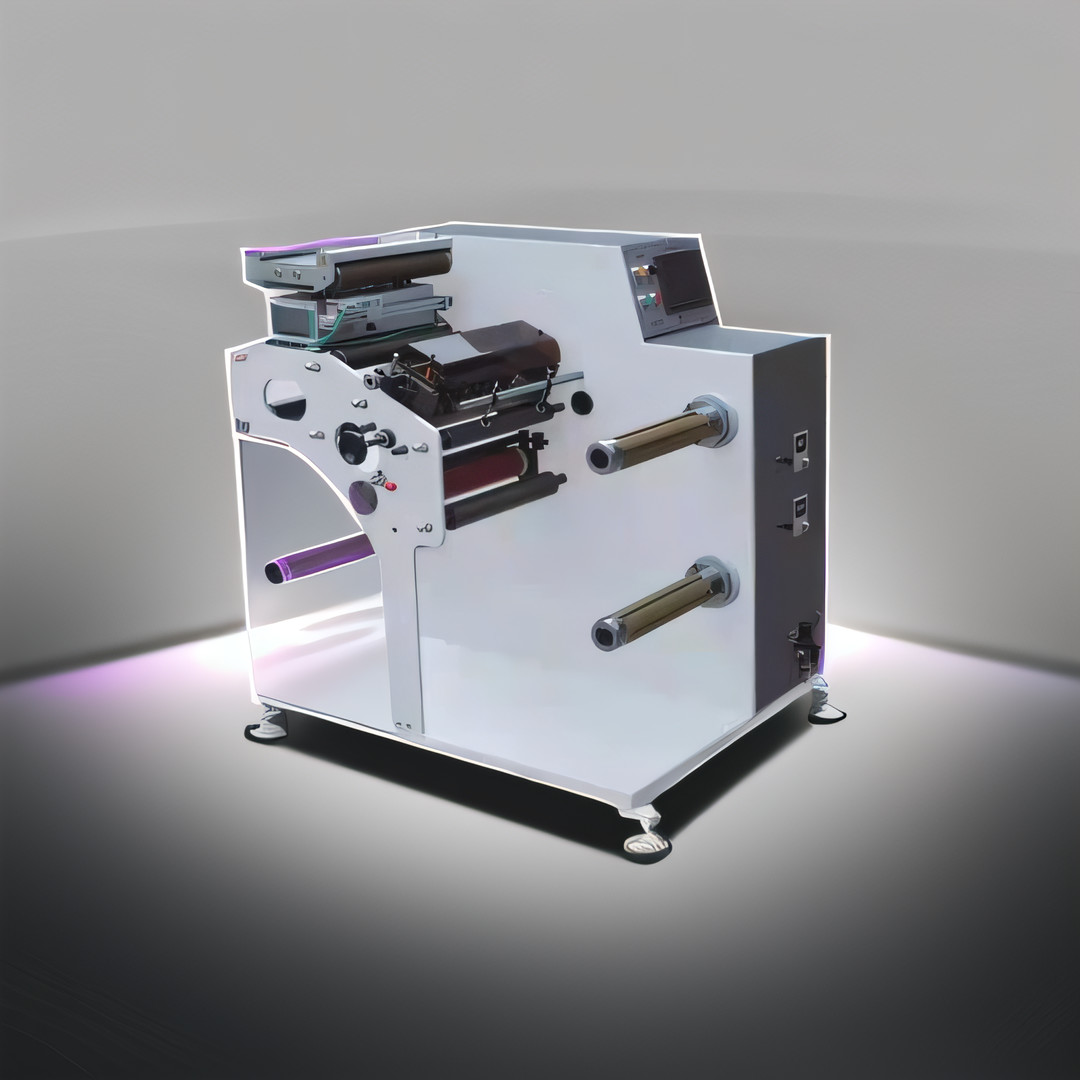

HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL

HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL

Product Description:

This machine is a product independently researched and developed by our company. It is a narrow label medium speed slitting machine, a high-end fully servo unwinding and rewinding taper tension system, with imported famous brand web guide system, the turret rewinding air shaft fully automatic rotation and transposition device, and a preparatory air shaft preparation device that greatly improves production efficiency. It supports the exchange of multiple specifications of inflatable shafts, meter/number counting, static treatment, no material to reduce speed or stop function, with high operation humanization, etc.

Applications:

This is a narrow label medium speed slitting machine. It is essentially a machine designed for handling paper or other thin materials characterized by intricate customization.

Customization:

HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL

Brand Name: Supreme
Model Number: FQ-350FZ
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: TT;LC
Supply Ability: 40sets/month
Slitting Speed: 200m/min
Max Rewinding Diameter: 600mm
Max Material Feeding width: 350mm
Warranty: 1 Year
Model: FQ-350FZ
This HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL is a high speed slitting and rewinding machine for narrow-range slitting of printed materials. It adopts full servo motor, PLC control system, with high speed, high precision, stable performance, durable, and is specially designed for high speed slitting and rewinding of adhesive label paper. It is suitable for narrow web label slitting, automatic high speed slitting machine, etc. Its maximum rewinding diameter is 600mm and maximum material feeding width is 350mm, with a slitting speed of 200m/min. The packaging is fumigation wooden box, and the minimum order quantity is 1. We offer 1 year warranty and accept TT;LC as payment terms. The delivery time is 20-30 working days, and our supply ability is 40sets/month.

Support and Services:

Our team of engineers and technicians provides technical support and services for HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL. We provide a comprehensive range of services for your machine, including installation, maintenance, troubleshooting, repair, and upgrades.

Our technical support and services are designed to ensure that your machine is running optimally and efficiently. We use the latest diagnostics and techniques to identify and resolve any issues quickly and efficiently. Our team of experts are available to answer any questions or address any concerns you may have about your machine.

We are dedicated to providing the best technical support and service for your HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL. If you have any questions or need assistance, please don't hesitate to contact us.

Packing and Shipping:

HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL packaging and shipping involves placing the machine in a container and securing it with film wrap, or other protective materials. The container is then sealed and shipped to its destination.

FAQ:

Q: What is the brand name of HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL?

A: The brand name of HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL is Supreme.

Q: What is the model number of HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL?

A: The model number of HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL is FQ-350FZ.

Q: Where is the HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL produced?

A: The HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL is produced in China.

Q: Does the HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL have a CE certification?

A: Yes, the HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL has a CE certification.

Q: What is the minimum order quantity for HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL?

A: The minimum order quantity for HIGH SPEED 320 AUTOMATIC SLITTER REWINDER LABEL SLITTING MACHINE WITH MINI SLIT WIDTH 16MM PAPER ADHESIVE STICKER LABEL is 1.

Feature:

1:Unwinding+web guide: adopts an independent servo taper tension control system, with preset automatic no material speed reduced or stop. web guide adopts ultrasonic edge guidance

2:Slitting station: Portable circular knife cutting structure, quick disassembly and assembly, optional flat knife, with high-pressure vacuum waste suction system

3:Rewinding: Taper tension control system, rotating device greatly saves roll changing time, ensuring label alignment with paper core during roll changing

4:Counting: The counting system adopts a well-known German brand, ensuring a calculation accuracy of 1/10000. Transparent materials require the purchase of additional special sensors

Technical Data

型号	model	FQ-350FZ	FQ-450FZ
最快分切速度	Max. Slitting speed	200m/min
最大进纸宽度	Max web width	350mm	450mm
最小分切宽度	Min. Slitting width	16mm
剪切刀具数量	Cutter installed	8sets
最大放卷直径	Max. Unwinding Dia	600mm
最大收卷直径	Max. Rewinding Dia	600mm
气压要求	Air supply	0.8mpa
重量	weight	500kg/600kg
外形尺寸	Dimension(L*W*H)	1100*1000*1200mm/1100*1100*1200mm

About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!

Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
