PV On Grid Solar Power System Mounting With Metal Ground Screw Hardware

High efficiency mounting hardware metal ground screw 33kw complete home solar system pv on grid system

❖ General mode:

Commercial on grid solar system is the power from PV Array will be provided by the load,the excess electric can be fed to the grid,it is suitable for the country which the local grid is stability.

Product List	30kw on grid solar			33kw on grid solar	36kw on grid solar	40kw on grid solar
PV module	550w*55pcs			550w*60pcs	550w*66pcs	550w*72pcs
PV combiner box	2 Input 2 output			3 Input 3 output	3 Input 3 output	4 Input 4 output
Inverter	Growatt on grid 30kw			Growatt on grid 33kw	Growatt on grid 36kw	Growatt on grid 40kw
Monitor	Wifi Module			Wifi Module	Wifi Module	Wifi Module
Battery	No			No	No	No
Mounting System	Roof mounting/Ground mounting (Design by your requirement)
Accessories	MC4 Connector,PV cable,Installations

❖ Solar Panel

* Power:540~560W

* The quantity of Cell:144PCS
* Solar cells size:182*91mm
* Dimensions:2279x1134x35mm(LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Encapsulation:EVA
* Backsheet:Composite film
* Frame:Anodized aluminum profile
*Junction Box:Rated current:25A,IP68

❖ On Grid Solar Inverter

* Rate Power: 25KW/30KW/33KW
* MPP voltage range:200V-1000V
* AC Voltage Regulation:220V/380V,

* AC grid frequency:50Hz/60Hz
* Max PV Power:37.5KW/45KW/49.5KW

* MPPT Efficiency :99%
* AC grid connection type:3W+N+PE
* Nominal voltage:580V
* No. of MPP trackers:2pcs
* Max. input current per MPP tracker:26A

❖ Accessories

* PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)

* MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

❖ Accessories

* PV DC Cable

4mm2 or 6mm2

* Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrenc

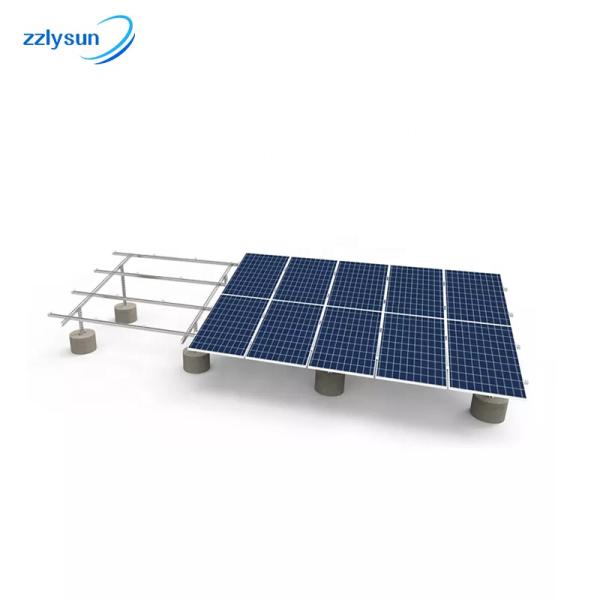

❖ Mounting Bracket

1. Good Appearance
2.Easy and flexible installation.

3.Diversified design
4.Light dead-weight
5.Save installation materials

❖ Advantage

The home on grid soar system are suitable for the country,which are the payment bill is expensive .It can save the pay bill without the battery investment ,the excess electric can fed to the grid for earnings.

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.

❖ Plywood Package

The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.

2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.

FAQ

1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.

       Zhengzhou Lingyang New Energy Technology Co., Ltd. was founded in 2016. The company had committed to the new energy industry for 10 years old,is mainly engaged in the research, development, production and sales of solar modules. The capacity of the first phase automatic assembly line has reached an annual capacity of 1GW. The product sales network covers more than 60 countries and regions worldwide,which provide customers with whole system integration solutions for development, design, construction, operation and maintenance. It has successful cases in solar power system (on grid, off grid and hybrid storage), portable solar kits, solar water pump, solar street light, solar home appliances and etc.

      The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment. It has developed a distributed and industrial and commercial photovoltaic power station project together with large enterprises such as Longji, Trina solar, CHINT ,JA solar ,Jinko solar and the leading enterprise of photovoltaic components. At the same time it exported to Germany, Sweden, Romania, Estonia, Poland, Lebanon, Ghana and other countries and regions, to achieve the development of sales regions and the rapid growth of business.

     Lingyang Technology Company takes the global perspective, focus on the customers and product requirement, and it committed to digitizing and intelligentization of each power station, providing a complete integrated solution for future smart energy, and promoting the long -term development of the clean energy industry.
