100W-250W UFO LED High Bay Light IP65 Waterproof 180lm/W High Efficacy

Categories UFO LED High Bay Light
Brand Name: CODT
Model Number: CODT-HB(100W~250W)-H3
Certification: CE, RoHs,CB
Place of Origin: SHENZHEN CHINA
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per day
Delivery Time: 5-20 working days according to the quantity
Packaging Details: 46*46*20cm
Ip rating: IP66
Lamp luminous flux(lm): 160
Input voltage(v): DC36-48V
Working lifetime(hour): 100000
Working temperature(℃): -20 - 65
Power: 100W 150W 200W 250W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

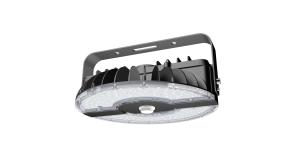

100W-250W UFO LED High Bay Light IP65 Waterproof 180lm/W High Efficacy

100W ~250W IP65 waterproof LED high bay fixtures 180lm/w high efficacy


Features:


▪ Ultra slim heat sink design makes the lamp lighter and better in heat dissipation

▪ High lumen SMD3030 chip, luminous efficacy 180lm/w

▪ Waterproof IP65,high thermal conductivity housing

▪ Beam angle 120 degree PC lens with transmittance 92%

▪ Support all kinds of intelligent sensors(Microwave, Daylight, Camera)


Specifications:


Technical Data

Model NumberCODT-HB100W-H3CODT-HB150W-H3CODT-HB200W-H3CODT-HB250W-H3
Power100W150W200W250W
Luminous Efficacy160lm/W160lm/W160lm/W160lm/W
Lumen Output16000lm24000lm32000lm40000lm
LED Quantity154pcs210pcs288pcs308pcs
Dimensionφ340*113mm
CCT3000K 4000K 5000K 6000K (Custom Option)
CRI>80Ra
System Efficiency≥90%
Lens120°

Electrical Details

Input VoltageAC100-277V/347V/480V
Power Frequency50-60Hz
Output VoltageDC36-48V
Power Efficiency>92%
Power Factor≥0.95
Total Harmonic Distortion≤15%
DimmableYes (Optional)

Other Details

IP RatingIP65
Lifespan100,000+ Hours
Storage Temperature-20º~65ºC
Operating Temperature-20º~65ºC
Luminaire Net Weight4.7KG(100W) 4.8KG(150W) 4.9KG(200W) 5KG(250W)
CertificationUL,DLC Premium,SAA,TUV,VEET,CB
Color of housingBlack(customized)

Packing Information

Part NumberN.T(KGS)G.W(KGS)Pcs/CartonCarton Size (cm)
CODT-HB100W-H35.78.5146*46*20
CODT-HB150W-H36.58.5146*46*20
CODT-HB200W-H36.58.5146*46*20
CODT-HB250W-H36.59146*46*20



Application:


Widely use in workshop,factory,warehouse,stadium,exhibition hall,supermarket,court,etc.

FAQ:


Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.


Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
