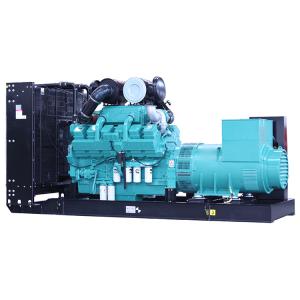

China Standby Power Perkins Cummins 600KW 800KW 1000KVA KTA38 Series Diesel Genset
Product characteristics:
1. Our cooperate with famous diesel engine -Powered by famous
CUMMINS engines.
2. Equipped with famous Brushless alternator - Optional Stamford,
Leroy Somer, Marathon, Meccalte.
3. Equipped with 50°C radiator with fan, enough engine cooling
system guarantee long time working
4. Equipped with advanced generator set control system, ATS system,
remote control system, parallel operation system, optional control
model, Deep sea, Smartgen, ComAp,
5. Generator set use High-quality steel are thickness canopy -- 2MM
to 6MM
6. Generator equipped with 24V DC battery with charger, battery
connects wire.
7. New design of turn-back type for air inflow & air outlet which
can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water
outlet & oil outlet for easy maintenance
Generator Specifications:
| Engine manufacturer | Chongqing Cummins Engine Co., Ltd. | |||||||||||
| Engine brand | Cummins | |||||||||||
| Engine model | KTA38-G5 | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Engine output(kW) | ||||||||||||
| Standby power rating | 970 | |||||||||||
| Prime power rating | 881 | |||||||||||
| Type | 4-Cycle, 12V Cylinder | |||||||||||
| Aspiration | Turbocharged and aftercooled | |||||||||||
| Bore * Stroke (mm) | 159 * 159 | |||||||||||
| Displacment (litre) | 38 | |||||||||||
| Compression Ratio | 13.9:1 | |||||||||||
| Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | |||||||||||
| Alternator brand | Leroysomer | |||||||||||
| Alternator model | LSA49.3L10 | |||||||||||
| Control system | AREP | |||||||||||
| A.V.R. | Included | |||||||||||
| Voltage regulation | ±1.0% | |||||||||||
| Insulation system | Class H | |||||||||||
| Protection | IP23 | |||||||||||
| Rated power factor | 0.8 | |||||||||||
| Winding pitch | Two thirds | |||||||||||
| Winding leads | 6 | |||||||||||
| Frequency (Hz) | 50 | |||||||||||
| Voltage (V) | 400 | |||||||||||
| Phase | 3 | |||||||||||
| Output ratings (kVA/kW) | ||||||||||||
| ----------------Cont.H-40°C | 1000/800 | |||||||||||
| ----------------Standby-27°C | 1130/904 | |||||||||||
| THF | <2% | |||||||||||
| TIF | <50 | |||||||||||
| Max. overspeed (Rev/Min) | 2250 | |||||||||||
| Bearing | Single | |||||||||||
Product Details
Detection and protection function
Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm
Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit
Optional features
RS485 (DSE7320)RS485(DSE7320)
Fuel level display and low-alarm
Water level low-alarm
Water Pre- heating in low temperature
ATS
Automatic parallel (DSE6120 / DSE7320)
Other self-definition functions
big power 1mva silenced diesel generator set price
1. Can you accept small order?
A: Yes, we can accept trial order, it is the starting of business. But according to different product the price may be higher as normal quantity.
2. What is your company product range?
A: We are a professional turbocharger supplier, OEM and ODM are welcome.
3. Do you inspect the product? How?
A: Yes, each step of production and finished products will be carried out inspection by QC before shipping.
4. What is your payment terms?
A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.
5. What about your factory production capacity?
A: 200pcs per month.
6.What kind of transactions you can accept.
A: We can accept FOB, CIF, CFR.
|
