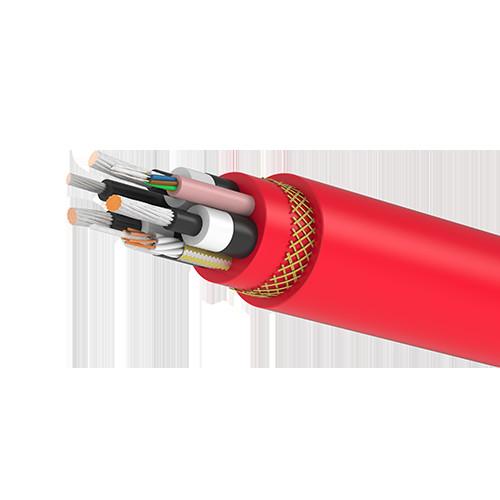

(N)TSKCGEWOU-SR FO Flexible Trailing Cable 12.7/22kV With CAT 6 Optical Fiber Cu/EPR/EPR/FO/5GM5/Braid/5GM5 is a specialized flexible trailing cable designed for use in heavy-duty applications, such as in mining, industrial, and material handling operations.

Its robust structure and advanced components ensure optimal performance, even under extreme mechanical and environmental stresses.

Product Overview

This 12.7/22 kV flexible trailing cable is built to withstand harsh conditions and provide reliable power and data transmission. It incorporates advanced insulation, a durable outer sheath, and integrated optical fibers for enhanced communication and control functions.

This cable is well-suited for applications in industries such as mining, harbors, and open-pit material handling systems where high voltage, flexibility, and durability are essential.

Key Features:

Voltage rating: 12.7/22 kV

Conductor material: Copper (Cu)

Insulation: EPR (Ethylene Propylene Rubber)

Optical Fiber: Integrated for enhanced communication

Armor: Braided for extra strength and durability

Outer sheath: Heavy-duty rubber compound (5GM5)

Application Scenarios

This cable is particularly designed for use in environments where high mechanical stress and extreme weather conditions are present.

Its flexibility makes it ideal for applications with frequent reeling and unreeling operations. Below are the most common use cases:

Open-pit mining: Provides reliable power to large material handling machines.

Industrial cranes and shipyard cranes: Ensures a stable connection during movement.

Reel-guided power systems: For cranes, stackers, reclaimers, and other large-scale machinery.

Harbor operations: Suitable for ship-to-shore cranes where robust power transmission is required.

Material handling in stockyards: Designed to perform in environments exposed to corrosive elements, oil, and heavy machinery.

Why Optical Fiber?

This (N)TSKCGEWOU-SR FO cable integrates optical fibers under the German VDE standard to facilitate real-time data transmission, enhancing control and monitoring capabilities in industrial applications.

The optical fiber arrangement includes 12 fibers or 2x12 fibers in G62.5/125, G50/125, or E9/125 configurations.

By combining power and communication in a single cable, operators can reduce system complexity and installation costs while ensuring consistent performance.

CAT6 optical fibers are integrated into the cable, providing:

Enhanced communication: Ensures seamless data transfer over long distances.

Real-time monitoring: Enables better control over machinery and systems in remote areas.

Data transmission in harsh environments: Optical fibers are protected by the cable's robust design, allowing them to function reliably even in extreme conditions.

Technical Specifications

Below is a detailed breakdown of the cable’s technical specifications:

Advantages of Using the (N)TSKCGEWOU-SR FO Cable

High Flexibility: Built with finely stranded copper conductors and a reinforced braided structure, this cable is highly flexible, allowing it to operate in environments with high reeling speeds and frequent directional changes.

Durability: The combination of EPR insulation, 5GM5 rubber sheath, and braided armor makes the cable resistant to mechanical wear, abrasion, and torsional stress.

Weather Resistance: This cable is designed for outdoor use, withstanding UV exposure, ozone, and moisture. Its rugged outer sheath ensures long-term durability in the harshest of conditions.

Chemical Resistance: The cable is resistant to oils, chemicals, and other corrosive substances, making it ideal for industrial applications in environments where exposure to such materials is common.

Integrated Optical Fiber: With 12 or 24 optical fibers embedded, this cable allows for enhanced data communication and monitoring capabilities, making it a valuable asset in smart industrial environments where real-time data transmission is crucial.

Fire and Safety Compliance: The cable meets the standards set by DIN EN/IEC 60332-1-2 for fire resistance, making it safe for use in environments where fire hazards are present.

Temperature and Mechanical Parameters

The (N)TSKCGEWOU-SR FO cable is built to perform in extreme temperatures and withstand substantial mechanical stress.

The thermal and mechanical properties of the cable include:

These parameters ensure that the cable can handle extreme mechanical stress while maintaining operational efficiency.

Its design minimizes the risk of damage under torsional loads and offers excellent resistance to mechanical wear in dynamic environments.

Application in Mining and Industrial Operations

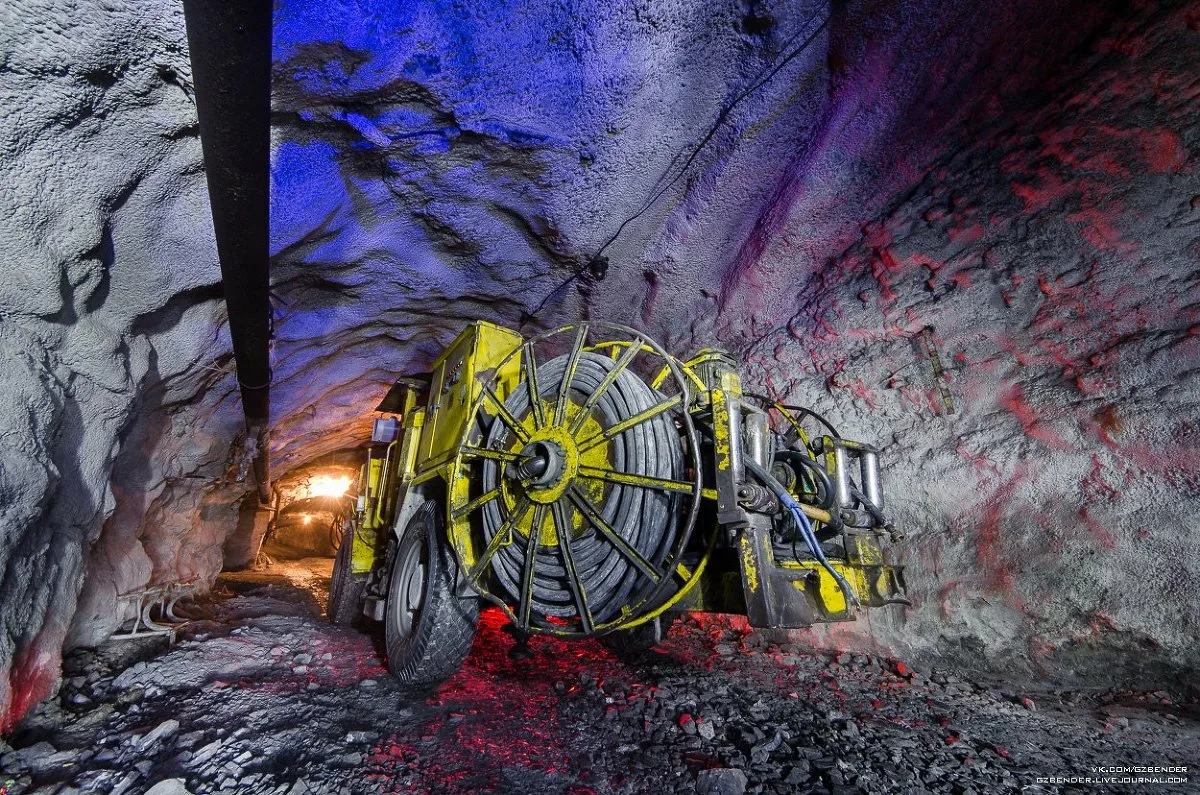

This cable's exceptional flexibility and durability make it ideal for mining operations, where the machinery operates in extreme conditions. The 12.7/22 kV voltage rating ensures the reliable delivery of power to large material handling machines, including cranes, stackers, and reclaimers.

The integrated optical fiber further enhances its functionality by allowing for data transfer, which is essential in automated systems and remote-control operations.

Additionally, the cable’s chemical resistance and fire compliance make it a perfect choice for industrial operations where safety and longevity are crucial. It can be used in environments exposed to harsh chemicals, ensuring uninterrupted power and data transmission in such settings.

Conclusion

The (N)TSKCGEWOU-SR FO Flexible Trailing Cable 12.7/22kV is engineered to provide high-performance power and communication solutions for industries that demand reliability and durability in harsh conditions.

Its combination of copper conductors, EPR insulation, and optical fiber makes it an ideal choice for heavy-duty applications such as mining, material handling, and industrial operations.

For customers looking for a solution that can handle extreme mechanical stress, provide reliable power transmission, and support real-time communication, this cable offers the perfect blend of flexibility, strength, and safety.

With its high resistance to chemicals, abrasion, and extreme weather, this cable is built to perform and last, even in the most challenging environments.

Feel free to reach out for further details, pricing, or to request a custom cable design to suit your specific application needs.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
