| Categories | Air Source Heat Pump Water Heater |
|---|---|
| Brand Name: | Longpu |
| Place of Origin: | China |
| MOQ: | 10 sets |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000sets per month |
| Delivery Time: | 25 days |
| Packaging Details: | cartons,wooden case |
| Material: | Stainless Steel |
| Application: | Hot Water Supply,cooling And Heating |
| Rated Heating capacity: | 2750W |
| Heat exchange method: | Internal 316L Stainless Steel Coil Tube |
| Capacity: | 100L,150L,200L |
| Rated input power/current: | 720W/3.4A |
| Maximum heating power: | 1500W |
| Energy Source: | Air Energy |

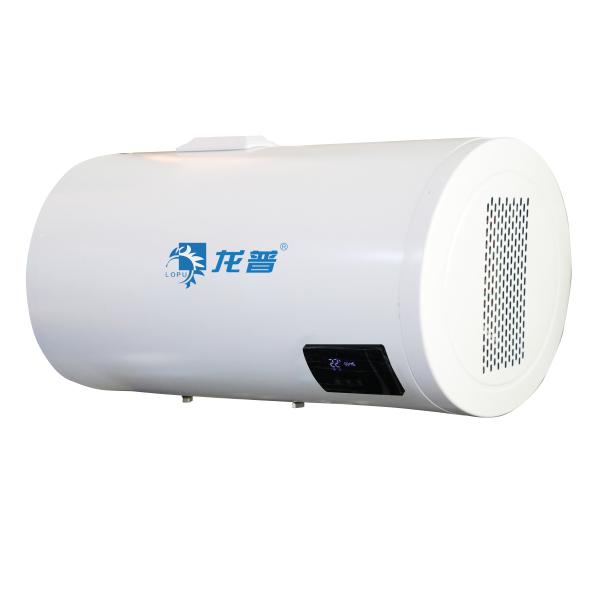

The Longpu air source heat pump integrated machine adopts an integrated design of the heat pump host and water tank, making installation and maintenance convenient.The enamel water tank has excellent anti-corrosion performance and the system operates under pressure. The water tank uses advanced microchannel heat exchangers, which are perfectly combined with the heat pump host, and can comprehensively meet the needs of households for central hot water.The noise level of this unit is not more than 52DB(A). It also has a capacity of 100L, 150L and 200L. It is an ideal device for residential and commercial areas.
Capacity:100L,150L,200L
Material of inner tank:enamel water tank
Energy Source :Air energy
Heat exchange method:Internal 316L stainless steel coil tube
Rated input power/current:720W/3.4A
Maximum heating power:1500W
Rated Heating capacity:2750W
Noise:≦52DB(A)
Application:hot water supply,cooling and heating
| Air energy heat pump integrated machine | ||||||
| Capacity | Overall dimension of water tank(mm) | Gross weitht/ Net weight(kg) | Structure of heat exchanger | Install | Rated input power | Rated heating Capacity |
| 100L | φ500*1505mm | 71/66Kg | Inner coil | Vertical | 720W/3.4A | 2750W |
| 150L | φ500*1850mm | 80/74Kg | ||||
| 200L | φ500*2195mm | 91/85Kg | ||||
| 100L | φ500*1505mm | 72/66Kg | External coil | Vertical | 720W/3.4A | 2750W |
| 150L | φ500*1850mm | 80/74Kg | ||||
| 200L | φ500*2195mm | 91/85Kg | External coil | Horizontal | 215W/1.03A | 750W |
| 60L | Φ470*1000mm | 61/57Kg | ||||
| 80L | φ500*1050mm | 70/65Kg | ||||
| Electric-heating power | 1500W | |||||
| Noise | ≦52DB(A) | |||||
| Plate material and thickness of inner tank(mm) | Material: enameling steel plate Thickness:2.0mm Process:The inner surface is first sandblasted and then enameled. | |||||
| Thickness of enamel layer | 0.15-0.5mm | |||||
| Material and thickness of outer shell(mm) | Outer shell Material:PCM colored steel plate, Out shell thickness: 0.4mm Out shell color:Gray white color, Printing on out shell: can be customized | |||||
| Size of inlet and outlet pipes and medium pipes | The inlet and outlet are G1/2 "internal threads; The inlet and outlet of refrigerant are respectively G5/8 "and G7/16" external threads; The drain outlet is G3/4 "internal thread. | |||||
| Heat exchange method, material and area of heat exchanger | Internal 316L stainless steel coil tube,Length=18M (Φ9.52mm) | |||||
| heating pipe | Heating pipe is optional,Power 2000W | |||||
| Thickness of Polyurethane Thermal Insulation Layer(mm) | 42mm | |||||
| Rated working pressure of inside tank of water tank | 0.70MPa for inner tank | |||||
Longpu air energy integrated heat pump system is an ideal choice for residential and commercial applications. It is equipped with an enamel water tank with capacity up to 200L, and a maximum heating power of 1500W. The internal 316L stainless steel coil tube helps to ensure efficient heat exchange. Longpu air energy heat pump system is the perfect solution to your energy-saving needs.
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
|
