| Categories | CNC Bending Machine |
|---|---|
| Brand Name: | MAZS |
| Model Number: | MAX-1409 |
| Certification: | CE, ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Delivery Time: | 60 - 80 days |
| Packaging Details: | Standard packing for sea transportation |
| Price: | RMB/USD/EURO |
| Max. bending speed: | 0.2 second/time |
| Max. bending width: | 1400mm |
| Bending height: | 170mm |
| Motor total power: | 34KW |
| Loading method: | Suction cup type |
| Position method: | Y axise three positioning rulers |
| Suitable material: | Stainless steel, aluminum plate, cold plate, and other metal material |
| Panel sheet thickness: | 0.35 - 1.6mm |
| Sheet size: | Max. 1400mm * 1400mm |
| Panel requirement: | Smooth panel surface, no punching nor holes, suction cup adsorption |

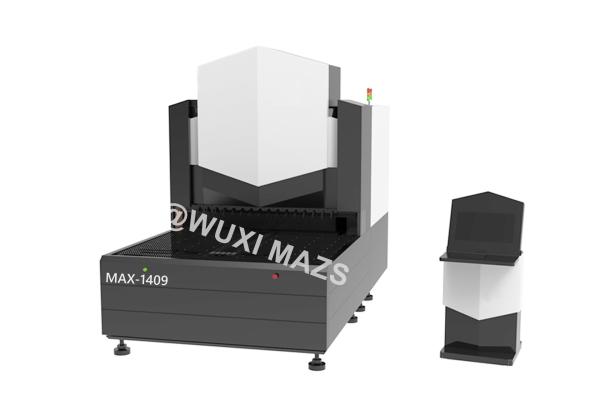

MAX-1409 Intelligent automatic panel bender adopts suction cup loading method.
The whole intelligent panel bender is designed and produced in accordance with high-precision machine tool standards. Used on smooth panel surface, no punching, no holes, which benefits suction cup to adsorb. The intelligent automatic panel bender has been iteratively upgraded in multiple versions, stable and reliable, supporting long-term operation, which greatly improves the production efficiency of bending enterprise.
Technical Parameters:
| MAX-1409 Technical parameters | |
| Feeding structure | Suction cup |

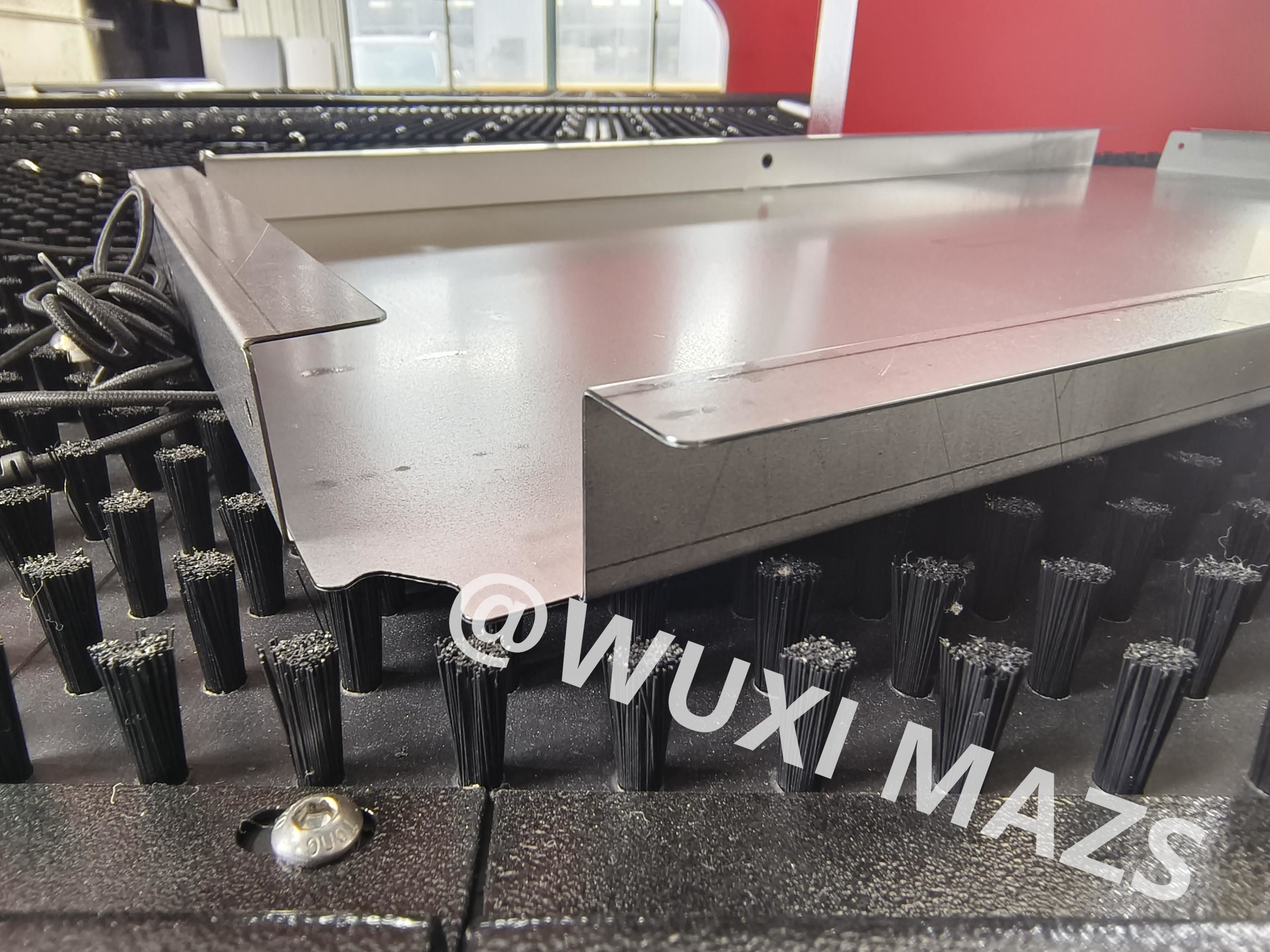

| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Max bending speed | 0.2 second/time |
| Max feeding speed | 90m/min |
| Max.bending width | 1400mm |
| Max.Bending size | L 1400mm X W1400mm |
| Max. Bending height | 170mm |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Rated power | 380V |
| Total Motor power | 34KW |
| Average power | About 1.5KW |
| Noise | About 50 dB |
| Machine size | L 365cm X W 190cm X H 290cm |
| Total weight | About 10 tons |
| User operating environment | Win7 and above operating system |
| Max. Bending width | UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold panel 1.2mm UTS 265N/mm2 aluminium panel 1.6mm |
| Min. Panel width | 0.35mm |
| Four side forming min. Inner size | About 140mmx210mm |
| Double side forming min. Inner size | About 140mm |
| Bending angle | 0-180 degree |
| Axis | 9 |
The intelligent automatic panel bender bending sheet metal does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
We provide technical support and service for Automatic Sheet Metal Panel Bender.
Our technical support and service includes:
We also provide on-site technical support and service, if necessary.
|
