35kv CCV Lines 150+90+65 XLPE Extruder Machine For Power Cable 240 / 300 / 630 Square Mm

Categories CCV Lines
Brand Name: Hongli
Model Number: 6-35KV
Certification: CE,ISO
Place of Origin: hebei
MOQ: 1 set
Price: 600,00$-950,000$
Payment Terms: T/T, L/C
Supply Ability: 10 set per month
Delivery Time: 90-120 days
Packaging Details: wooden packing
Name: CCV Lines
Size: 630
copper size: 35-630 square mm
aluminum size: 50-800 square mm
max cable diamater: 75mm
inverter brand: Yaskawa
extruder size: 150+90+65
motor brand: siemens
main power: 75KVA
factory size: more than 135 meters
XLPE close size: 36m+12m+54m
cable weight: 10kg/m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

35kv CCV Lines 150+90+65 XLPE Extruder Machine For Power Cable 240 / 300 / 630 Square Mm

150+90+65 XLPE EXTRUDER MACHINE 35kv Ccv Line For Xlpe Power Cable 240, 300, 630 Square Mm


About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,


Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
1. Application
This CCV line is used to make 3 layers co-extrusion cables, voltage from 6 kv to 35 kv.
2. Main machine list
6 - 35 kV CCV Line Main Machine List
S/NITEMQuantity
1Double Gantry type 2500 pay-off machine1 set
2Accumulator1 set
3Belt type haul-off1 set
465+150 +90 extruders1 set
53 layers co-extrusion cross-head1 set
6Upper seal1 set
7Heating tubes1 set
8Catenary control system1 set
9Pre-cooling tubes1 set
10Water gas balance system1 set
11Cooling tubes1 set
12Lower seal1 set
13Lower belt type haul-off1 set
14Double Gantry type 3150 take-up machine1 set
15PLC + Touch screen Control system1 set

3. Main Technical parameter
6 - 35 kV CCV Line Main Technical Parameter
S/NITEMSPECIFICATION
1Insulation voltage range6 - 35 kV
2Cross-section rangeCopper: Ø 35- 630 mm²
Aluminum: Ø 50 - 800 mm²
3Max. cable weight10 kg/m
4Max. Cable diameterØ 70 mm
5Line speed0.3 - 30 m/min
6Max vulcanization tube temp.450 ºC
7Technology methodNitrogen for coring
Water for cooling
8Catenary coefficient200 -150
9Tube styleSemi- catenary
10Heating tube length36 m < 6 zones heating>
42 m < 7 zones for heating >
48 m < 8 zones for heating >
54 m < 9 zones for heating >
11Pro cooling tube length6 - 13 m
12Cooling tube length54 m < 6 zones for heating >
66 m < 7 zones for heating>
72 m < 8 zones for heating >
84 m < 9 zones for heating >
13Working pressure0.8 - 1.6 MPa
14Nitrogen purity 99.5%
15Extruder style65+ 150 + 90 or
80+ 175+ 100 < high speed>
16Power consumption1050 kVA 380 V 50 Hz
17Water consumption15 m³/h
Water pressure: 0.2 - 0.6 MPa
18Air consumption0.5 m³/h, 0.6 - 0.8 MPa
19Nitrogen consumption4 - 8 m³/h,
Purity: 99.5%
Pressure: 0.2 - 0.6 MPa

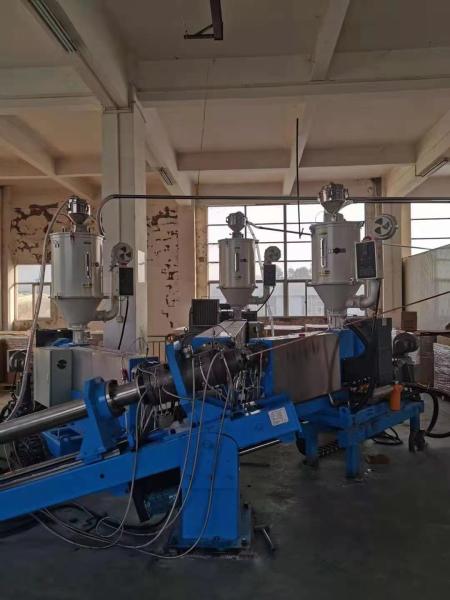

4. Main Machine Photos
