CO-1X1CP 10GE Poe Switches IEEE802.3 Protocols Extend IP Ethernet Transmission

Product Description:

CO-1X1CP is a 10GE POE solution device it is designed to extend IP Ethernet transmission and inject power into a remote PD beyond the 100 meters limit of Ethernet network. The adaptive port can automatically adapt to the 10/100/1000/10000M(POE)networks, and can automatically adapt to the full duplex or half duplex mode; It also adopts High-Quality and High-Speed Network IC and the most stable POE Chip. This model can provide seamless connection for 10GE Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / at / bt standards. The Non-POE devices are forcibly powered and only transmit data.

It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.

Features:

• Items	CO-1X1CP

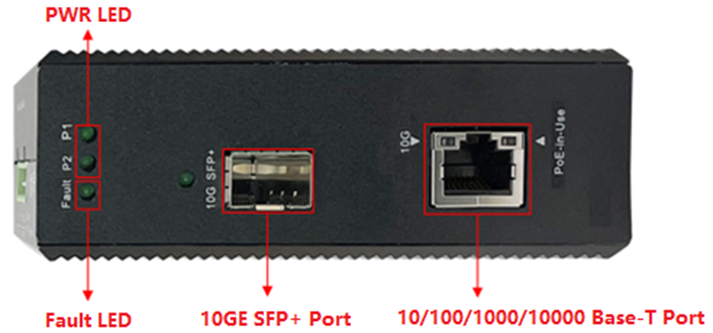

  Connector Type	1*10/100/1000/10000M(POE)+1*10GBase-SR/LR SFP+ interface Ports
  Network Protocols	IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x;IEEE802.3bt/at/af
  Network Media	10BASE-T: Cat 3,4,5,6 UTP(≤100 meter) 100BASE-T: Cat 5,6 UTP(≤100 meter) 1000BASE-TX: Cat5,6 or more UTP (≤100 meter) 10000BASE-TX: Cat5,6 or more UTP (≤100 meter)
  Power Supply	Removable 6-pin terminal block Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin5/6 for Power 2. DC Input:44-57V Maximum power consumption: 4.36w (PoE without load)
  POE power	IEEE802.3af(15.4W)
  	IEEE802.3at(30W)
  	IEEE802.3bt(71.3W)
  Working Environment	Operating Temperature: -10℃ ~ 65℃; Storage Temperature: -20℃ ~ 85℃; Operating Humidity: Max 95%, non-condensing Storage Humidity: Max 95%, non-condensing
  MTBF	100,000 hours
  Weight	270g
  Outline dimensions	107mm (L)*77mm (W)*37.5mm (H)

Customization:

Color Optic Poe Switches (CO-1X1CP) offer superior security for CCTV networks with IEEE802.3 network protocols. Our switches are built with 10BASE-T/100BASE-T/1000BASE-TX network media and come with QoS for guaranteed performance. Our Poe Switches feature Web/CLI/SNMP management, and are in stock with fast delivery from China.
