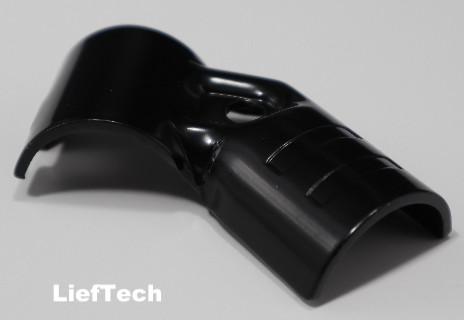

2.5mm thickness 45 Degree Pipe Joint Fitting electroplating surface

2.5mm thickness 45 degree direct pipe fittings pipe joint system connector

Product introduction

The 45 degree direct metal joint need one pair of M6 * 25 bolts to complete the installation process. The thickness of paralle single-side swivel metal joint is 2.5mm, which can ensure that it has a strong bearing capacity. The surface of the joint will be punched with stripes or dots during stamping, so as to better increase the friction between the joint and the pipe and make the whole structure more firm. After the joint is grinded, the burr on the joint surface can be greatly reduced or even completely cleared, effectively reducing the risk of injury to workers in the workplace. And the surface treatment of the joint adopts electroplating, which can effectively prevent its rusting and prolong the service life of the joint.

Features

1. Two equipotential lines on both sides of the product, so the installation position of the tube can be known when using. Auxiliary user installation.

2.The thickness of the product is up to 2.5, 25% thicker than most products, with stronger performance and higher bearing capacity.

3. Holes are reserved on the surface of the product, and self-tapping screws can be inserted later to better fix the pipe.

4. Products can be customized with logos and marked with models according to different needs of customers.

Application

Only one piece of W-10B and one piece of W-10A can complete the assembly of two lean pipes connected at 45 degrees. This set of components can be widely used at the 90-degree corner of the shelf. It is connected with three pipes through two components to form a stable triangular structure. Make the shelf more firm and not easy to deform. Moreover, the connection between the connector and the lean pipe conforms to human mechanics. 45 degree direct metal joint is often used in various material racks and lean pipe workbench.
