| Categories | LED Flat Panel Retrofit Kit |
|---|---|
| Brand Name: | Noonlight |
| Model Number: | N-TF-SLK-2X2FT |
| Place of Origin: | China |
| Certification: | DLC, ISO9001, Rosh, ETL, |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 30 day(s) |
| Payment Terms: | T/T, AliPay, PayPal |
| Supply Ability: | 3000 pcs/day |
| CRI: | >80 |
| Material: | White Powder Painted Steel |
| Beam Angle: | 120° |
| Application: | Office/School |
| Lifespan: | 50,000 Hours |
| Power: | 16W/20W/24W/27W |
| Input Voltage: | 100-277VAC Or 100-347VAC Or 347-480VAC |
| Luminous Flux: | 2500-5000LM |
| Company Info. |
| Zhongshan NoonLighting Co., Ltd. |
| View Contact Details |
| Product List |
Utilizing a Class P Programmable LED Driver, Axen Lighting strives to deliver exceptional efficiency of up to 125lm/w. The 4 step power adjustable driver allows users to control the CRI>80 and CCT tunable, which is available in 3000K, 3500K, 4000K and 5000K.
The driver also has multiple customizable features, such as a 5-100% 0-10V dimmable feature which is flicker free and allows the users to dim to off. Additionally, Axen Lighting also offers a built-in infrared sensor (PIR) and Motion Sensor as well as a built-in emergency driver option.
For convenience, it also has an auxiliary to connect low voltage sensor/BLE or other IOT network to its driver for a more synchronized and efficient user experience.
Specification:
Model No | DLC | Input Voltage | Rated Wattage | Lens | Color | Rated Lumen @3000K | Rated Efficacy | Viewing Angle | Rated Lifetime | Replacing |
| Power Adjustable, CCT Tunable, 0-10V Dimmable, Troffer LED Fixture, Standard Version | ||||||||||
N-TF-22-16-XX-WC1- [BLANK,HV]- [S1, S2, S3, S4, S5, S6, BLANK)--[SL, F] | P | 120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable | 27W | Frosted | 30K 35K 40K 50K | 3375LM | 125LM/W | 120 ° | L70> 50000hrs | 60W - 200W Incandescent |
| 24W | 3000LM | |||||||||
| 20W | 2500LM | |||||||||
| 16W | 2000LM | |||||||||
Schools, offices, conference room, hospitality etc.

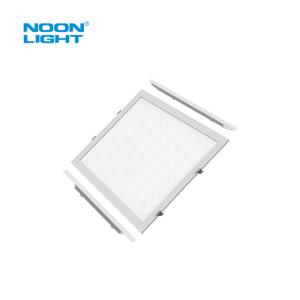

Our LED Flat Panel Retrofit Kit is the perfect solution for 2x2 LED ceiling light panels. With a backlit design, this 2x2 LED Panel Retrofit kit features a 50,000-hour lifespan and is available in a variety of sizes, colors, and powers.
We offer full technical support and after sales service for our LED Flat Panel Retrofit Kit. Our team of experienced engineers is on hand to provide assistance with product installation, service and maintenance. We also provide a wide range of spare parts and accessories for our products, as well as comprehensive product warranties. In addition, we offer customized solutions for any unique requirements that you may have.
|
