36 Circuits Through Bore Slip Rings With Large Dielectric Strength 440VAC/VDC

Categories Slip Ring Solutions
Brand Name: Haurem
Model Number: HRCM75
Certification: CE RoHS
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000pieces/month
Delivery Time: 2 weeks ARO
Packaging Details: Standard/On Request
Advatage: Good transmission current and signals
Channel: 1~56
Electrical Noise: Max 30mΩ
Feature: hollow shaft slip ring, rotating slip ring
Operating Humidity: 60%RH or higher
Rotating Speed: 500RPM
Temperature: -20℃~+80℃
Voltage Rating: 1000VAC/VDC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

36 Circuits Through Bore Slip Rings With Large Dielectric Strength 440VAC/VDC

36 Circuits Through bore slip rings with a Large Dielectric Strength and Voltage of 440VAC/VDC
PRODUCT DESCRIPTION

HRCM120-2FO series slip ring is a high-precision unit that integrates transmission of electricity and optical signal. Special construction and manufacturing technique permit its independence and anti-interference between the two. With a reliable transmission, it takes the leading position with originality in its field.

The quality of the part is certified by a series of stringent in-house tests and acknowledged by customers with a stable and reliable signal transmission. Stable performance allows signal transmission with no surge kind interference or data package loss.


Specifications


Circuits9circuits* 10A, 35circuits*2A, 1* Fiber
Working Voltage240 VDC
Dielectric StrengthBetween circuits≥500V@50Hz
Insulation100MΩ@100VDC
Electrical Noise≤15mΩ
Working Speed0~100 rpm
ContactPrecious Metal
HousingAluminum Alloy
Wire SizeAWG17# /28#
Lead Wire Length

Rotor:1000±5 mm

Stator:1000±5 mm

Wavelength1310-1650mm
Insertion Loss<2dB
Return Loss>40dB
Optical Fiber TypeSingle mode
Connector TypeST
Temperature-40°C~+85°C
Humidity≤60%RH
IPIP54

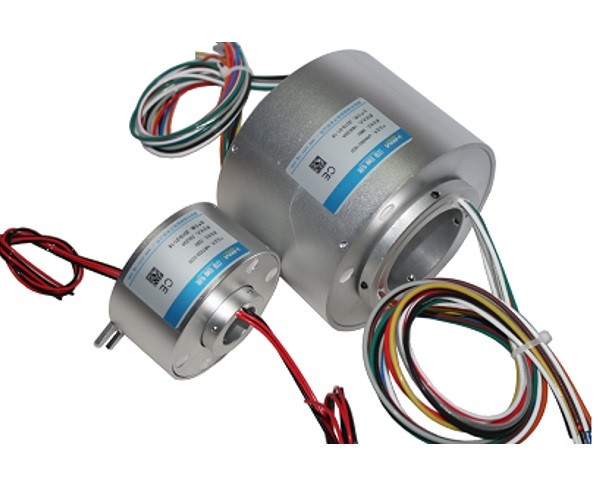

Product display

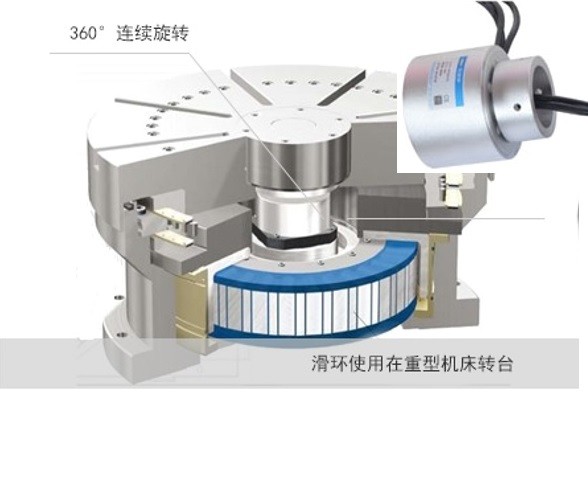

Product Application



Our company profile


Our Haurem conductive slip rings are widely adopted in Wind energy, Aerospace,Industrial automation,Intelligent robots,Engineering machinery,Measurement instruments,Medial equipments,Packaging machinery,Security etc. fields. They are specialized in continuous transmission for medium and pressure of power, signal,pneumatic,hydraulic under 360° unrestrained rotation to make sure the whole system will be steady rotating without any damage to the prone wires.


According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
