| Categories | Stainless Steel Welded Pipe |
|---|---|
| Brand Name: | Shangle |
| Model Number: | welded tube |
| Certification: | Stainless Steel Welded Pipe |
| Place of Origin: | CHINA |
| MOQ: | 1ton |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Tons per Month |
| Delivery Time: | 7-15 working days after receiving payment |
| Packaging Details: | In wooded cases or pallets,or as for clients requirement |
| Keywords: | Stainless Steel Welded Tube |
| Usage: | Industry/Construction |
| Tolerance: | ±1% |
| Technique: | Cold Rolled Or Hot Rolled |
| Price Term: | CIF CFR FOB EX-WORK |
| Welding Line Type: | ERW |
| Company Info. |
| Wenzhou Shangle Steel Co., Ltd. |
| View Contact Details |
| Product List |
ASTM A358 CL.1 TP316L S31603 1.4404 Stainless Steel Welded Pipe
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
ASTM A358 316/316L Pipe has been serving the need of gas and oil industry, power plants, shipbuilding, automotive and many other industries also. This type of alloy is leading in the transportation industry for carrying water, gas, oil, etc, from one place to another.
ASTM A358 CL1 - ASTM A358 Class 1 Pipe shall be double welded by
processes employing filler metal in all passes and shall be
completely radiographed.
ASTM A358 CL2 - ASTM A358 Class 2 Pipe shall be double welded by
processes employing filler metal in all passes, no radiography is
required.
ASTM A358 CL3 - ASTM A358 Class 3 Pipe shall be single welded by
processes employing filler metal in all passes and shall be
completely radiographed.
ASTM A358 CL4 - Same as ASTM A358 Class 3 except that the weld pass
exposed to the inside pipe surface may be made without the addition
of filler metal.
ASTM A358 CL5 - ASTM A358 Class 5 Pipe shall be double welded by
processes employing filler metal in all passes and shall be spot
radiographed.
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | – | – | – | 0 | – | 16.0 | 2.00 | 10.0 | – |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 |
MECHANICAL PROPERTIES OF TP316 / 316L CLASS 1 EFW PIPES
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Equivalent Material:
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316 | S31600 | 316S31 | 58H, 58J | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
| 316L | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
Applications:
-Cryogenic Industry
-LNG Gas
-Offshore Industry
-Process Plants
-Sub Sea
-Refineries etc.

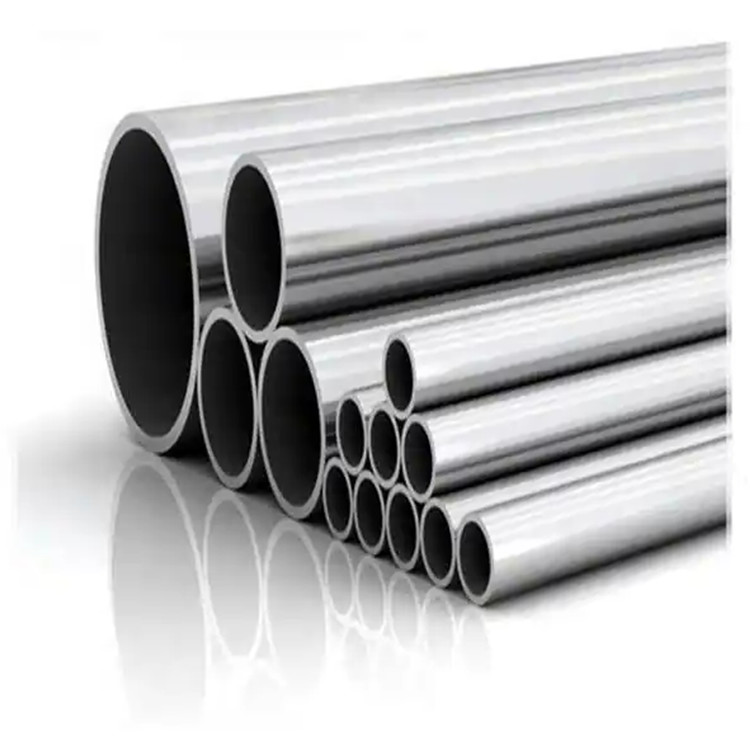

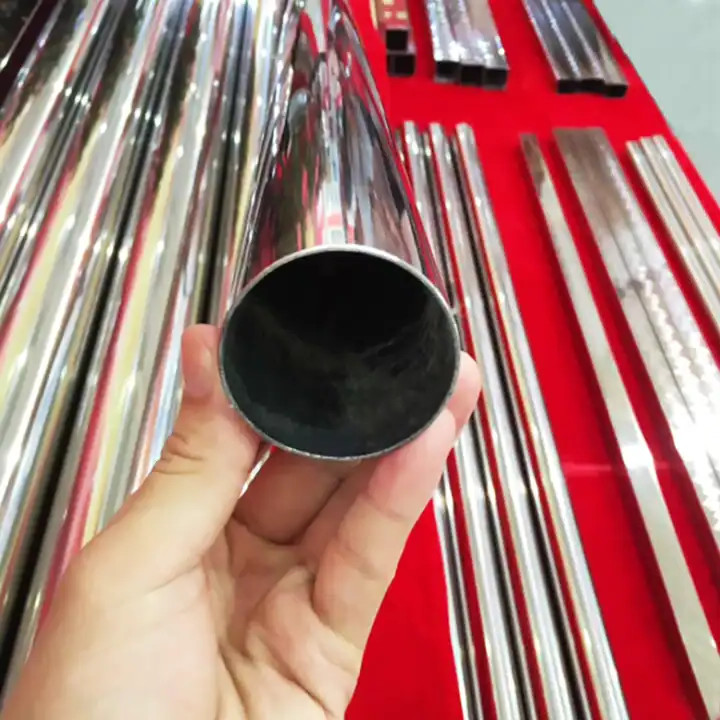

Detail image
|
