Reverse Vehicle Camera Monitoring System AHD 1080p Night Vision Camera

Vehicle Camera Monitoring System Reverse monitoring visual 7 - inch display all - in - one machine

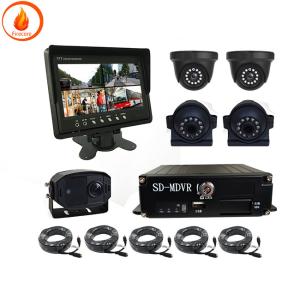

Reverse camera : 1 hemisphere camera : 2 side view cameras : 2 7 - inch monitors : 1 3G 4-way DVR : 1 15M waterproof extension cable : 5 pieces

Color 7 - inch (full new screen) LCD display can be connected to DVR / cameras etc Four video inputs are connected to a 3G recorder for recording The video output of the recorder is connected to the display and real - time images of the four cameras are displayed at the same time when turning on Priority is given to starting the reverse camera when reversing Working voltage : 12V - 40V . The product has high temperature resistance shock resistance and water resistance

Product standard configuration :
1 . 1 7 - inch monitors support AHD720P / 1080P / CVBS with 12 built - in car models to choose from
1 AHD 1080P high - definition night vision camera
3 . Four acoustic visible digital radars
4 . One set of radar adapter and extension cables

Camera :
Chip image sensor : 1 / 3 "GC2053
Effective pixels : 2 million
Actual horizontal wide - angle : 110 degrees
Diagonal angle : 170 degrees
Night vision : LED/IR night vision
Reverse image : mirror image
Mirror/original switch : No
TV system : NTSC
Video output : CVBS RCA connector (1.0VP -P, 70OHM)
Minimum illumination : 0.01 Lux/F = 1.2 (0 Lux and IR on)
Power supply : DC12V
Power consumption : 120mA
Working temperature : -20 ℃ -75 ℃ RH 95% MAX
Storage temperature : -40 ℃ -80 ℃ RH 95% MAX
Waterproof grade : IP67

Display :
1 . 7 "AHD 1080P display
2 . Display mode : can switch between full screen 16:9 and 4:3 display modes . In 16:9 mode the car model is overlaid with the image and in 4:3 display mode the car model is displayed separately from the image
3 . Shockproof and easy to carry design
4 . Built in digital radar overlay + reverse image
5 . Multiple vehicle model display modes and alarm distance prompts can be set according to actual needs (optional)
6 . Built in Chinese / English and BIBI voice prompts for alarms
7 . It adopts a one line bus transmission without the need for a radar host box and is easy to install
8 . Panel configuration menu function buttons
9 . Adopting dedicated and special high sensitivity digital radar anti - interference and low false alarm rate
10 . Adopting anti - interference shell design and external installation without the need for openings
11 . Radar detection may reduce the sensitivity and accuracy of the radar based on different environments and surface cleanliness and the detection function only assists in safe driving
