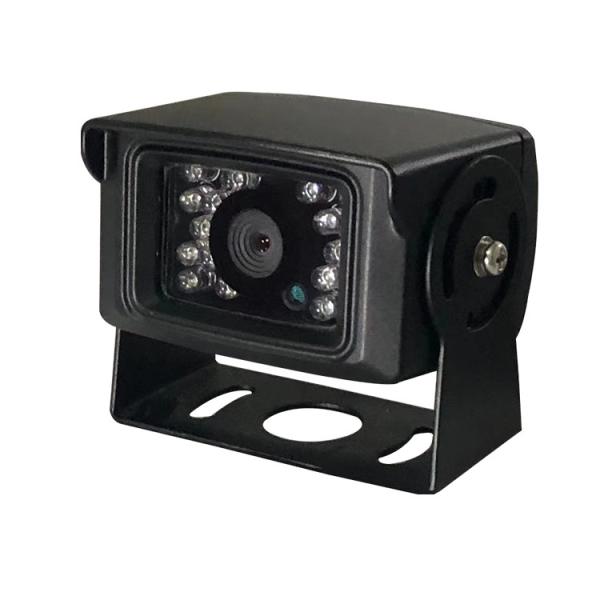

vehicle Car Surveillance Camera reversing AHD rear view camera

AHD Car Camera Infrared night vision bus reversing camera AHD rear view vehicle image

Parameters :
Image sensor : COLOR CVBS/AHD
● Clarity : CVBS - 700 cable/720P/960P/1080P
Color standard : PAL/NTSC
● Infrared distance : ≤ 10 meters (18 night vision lights)
● Adopting Qualcomm bright high - definition wide - angle dedicated lenses
Visual angle : approximately 120 degrees/140 degrees/160 degrees optional
3D noise reduction high image quality fast dynamic video response no trailing shadows vivid colors and fast sensitivity recovery .
Equipped with curved glass protection design it can achieve large angles without scratching the lens and causing blurry images .
● Synchronization method : Internal synchronization
Gamma correction : 0.45
Signal to noise ratio : ≥ 48dB (AGC Off)
Electronic shutter On : EIA 1/60~1/100000 Sec CCIR 1/50~1/100000 Sec
Off : EIA 1/60 Sec CCIR 1/50 Sec
Gain Control (AGC) : Automatic
Video output : 1.0Vp - p 75 ohm
● Connection wire : 4 - core aircraft connector (optional RCA/4 - core S terminal/6 - core S terminal)
Waterproof level : IP68 (waterproof process for submer

Based on technological research and innovation and after more than a decade of development we have a deep technological accumulation and leading market share in fields such as AI video intelligent recognition vehicle monitoring and recording blind spot radar, reverse rearview wireless transmission monitoring etc . We have also obtained multiple appearance patents and utility model patents and have CF FCC ROHS and other certifications which are widely used in buses trucks special vehicles engineering vehicles agricultural vehicles etc Forklifts and other types of transportation and vehicles

Sai Te Mei specializes in designing large vehicle environments wide range of working voltage applications a wide range of product types high - definition visual effects and high stability product quality . Its core technology style which integrates one plug and two plug installation driving monitoring and reverse view has been widely recognized in the market and praised by many customers . The products are exported in large quantities and are committed to Yutong Jinlong Neoplan Ankai and Heli Forklifts in China Supporting services from well - known domestic automobile manufacturers such as Sany Heavy Industry . Exported to markets in Europe America and Southeast Asia highly trusted by customers

Shenzhen Firecore Technology Co., Ltd., has been established for more than 15 years, is a focus on vehicle video image surveillance products research and development, manufacturing, and sales of national high-tech enterprises. With a strong R & D team and its patented products, Firecore has been a strong supplier of commercial vehicle enterprises at home and abroad and will be committed to becoming a strong supplier of commercial vehicle enterprises around the world for a long time.

Professional and Product Diversity: Firecore not only manufactures and develops in-vehicle video surveillance products but also covers closed-circuit surveillance equipment such as CCTV cameras, as well as a series of cameras and surveillance video recorders designed for different vehicles (such as buses, school buses, trucks, and taxis). In addition, Firecore also provides advanced automotive safety products such as in-car wifi, 3G/4G/5G cameras, as well as reversing systems, displays, and rear-view systems, showing the diversity and professionalism of its products.

Technological Innovation: Firecore emphasizes "Innovation! Originality! High-end customization!" as part of its core competence. Therefore, we invest a lot of resources in scientific and technological research and innovation to provide products with unique and high-end performance.

R&d, Production, Sales, and Service Integration: Firecore integrates product R&D, production, sales, and service, forming an integrated business model. This model helps us better grasp the market demand, respond quickly to customer needs, and provide a full range of services.
