Automation Rail Transfer Cart Electric Transfer Trolley Customized Table Size

Categories Rail Transfer Cart
Brand Name: Remarkabl
Model Number: KPX/RGV/KPD
Certification: ISO9001,ISO14001,ISO45001,CE
Place of Origin: china
MOQ: 1
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 500 sets/year
Delivery Time: 40 days
Packaging Details: The whole cart will be packed by the tarp, the parts will be packed by polywood case.
name: Rail Transfer Cart
key word: rail transfer cart,Transfer Cart,battery transfer cart ,transfer trolley, industrial rail transfer cart, electric flatcar motorized equipment, battery powered material handling rail electric coil transfer cart
Flat Size: U/V/roller/lifting/Customized
Load Capacity: 1-1000 tons
Material: Welded construction of structural steel,Box girder structure
Model: Automation Rail transfer trolley
Operation Mode: Remote Control/Handle remote control/PLC
Running Speed: 0-25m/min Stepless speed regulation/ Customized
Safety Device: Limit switch,RFID,Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor
Warranty: 1 year
Wheel Material: steel wheel
Application: Industrial Filed, Automobile industry,military industry,hydropower industry,Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Features: Explosion proof, high temperature,linkage,
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automation Rail Transfer Cart Electric Transfer Trolley Customized Table Size

Customized Table Size For Different Industrial Handling Rail Electric Battery Transfer Cart


Remarkable produce a vatiety of rail transfer cart, Battery operated transport cart, Coils transfer cart, Ladle transfer cart, Hydraulic scissors lift table cart, etc. According to running rail, we have Cross-rail transport cart, Curved rails transfer cart, S shape railway transport cart, L shape rail transporter. We also produce Industrial Trailer,such as Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer cart, etc. Cargo Transportation can also be found, such as Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport cart, transformer carrier bogie. We also manufauture Special Handling Equipment, for example: ferry transfer trolley, Cross-rail transport cart, Motorized turntable, Vacuum furnace transfer cart, Automatic rail transfer cart, etc.

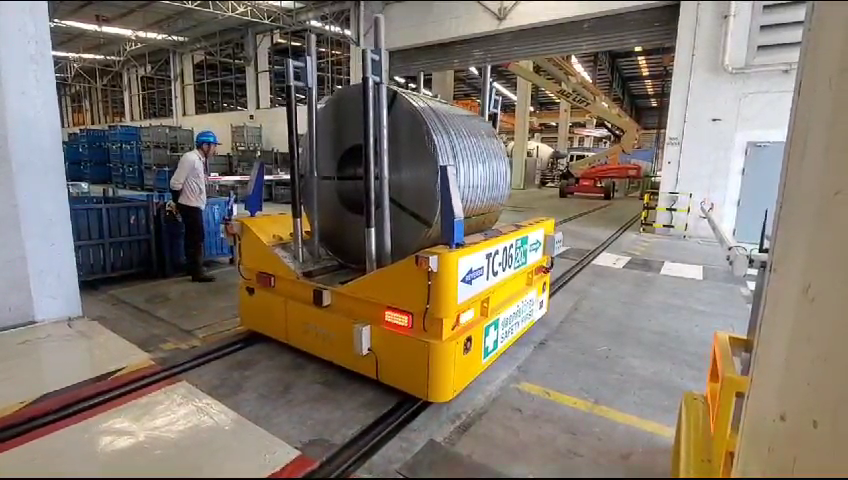

Remarkable rail transfer cart are operated on rails. In order to protect the environment, we use battery as the driving force of our transfer cart. It's very quiet and high efficient. We use high quality battery. It's maintenance free and can work more than 4 hours at a time with full light. It can service for a long time and have no limitation of running distance.


Technical parameters for Battery powered electric transfer carts KPX series
ModelKPX-2tKPX-5tKPX-10tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-150t
Rated Load(t)25102025304050150
Table Size(mm)Length2000350036004000450045005000550010000
Width150020002000220022002200250025003000
Height4505005005506006006506501200
Wheel Base(mm)120025002600280032003200380042007000
Rail Inner Gauge(mm)120014351435143514351435143514352000
Wheel Diameter(mm)270300300350400400500500600
Wheel Quantity444444448
Ground Clearance(mm)505050505050505075
Running Speed(m/min)0-250-250-250-200-200-200-200-200-18
Motor Power (Kw)11.21.62.233.54515
Battery Capacity (Ah)180180180180250250300330600
Battery Voltage(V)243648484848484872
Running Time When Full Load4.325.44.8443.53.63.32.9
Running Distance for One Charge (Km)6.58.17.24.84.84.24.343.2
Max Wheel Load (KN)14.425.842.677.794.5110.4142.8174266
Reference Weight(t)2.83.64.25.96.56.87.6827
Recommended Rail ModelP15P18P18P24P38P38P43P43QU100
1,Load capacity, table size and rail gauge can be customized;
2
,Options: Remote radio control (imported or made in china);
3
,Automatic stop when detecting obstacle or person ,limit switches (to limit travel);
4
,Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
5
,Motor (DC motor with brush and DC motor brushless);
6
,Electrical parts (imported or made in China).
