| Categories | Heavy Load Transporter |
|---|---|
| Brand Name: | Remarkabl |
| Model Number: | RWP |
| Certification: | ISO9001,ISO14001,ISO45001,CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 500 sets per year |
| Delivery Time: | 40 days |
| Packaging Details: | The whole cart will be packed by the tarp, the parts will be packed by polywood case. |
| Color: | Customized |
| Table Size: | Customized |
| Load Capacity: | 1-300 tons |
| Operation Mode: | Remote Control/Handle remote control/PLC |
| Running Speed: | 0-25m/min Stepless speed regulation/ Customized |
| Safety Device: | Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor |
| Wheel Material: | Press fit solid rubber wheels |
| Application: | Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc |

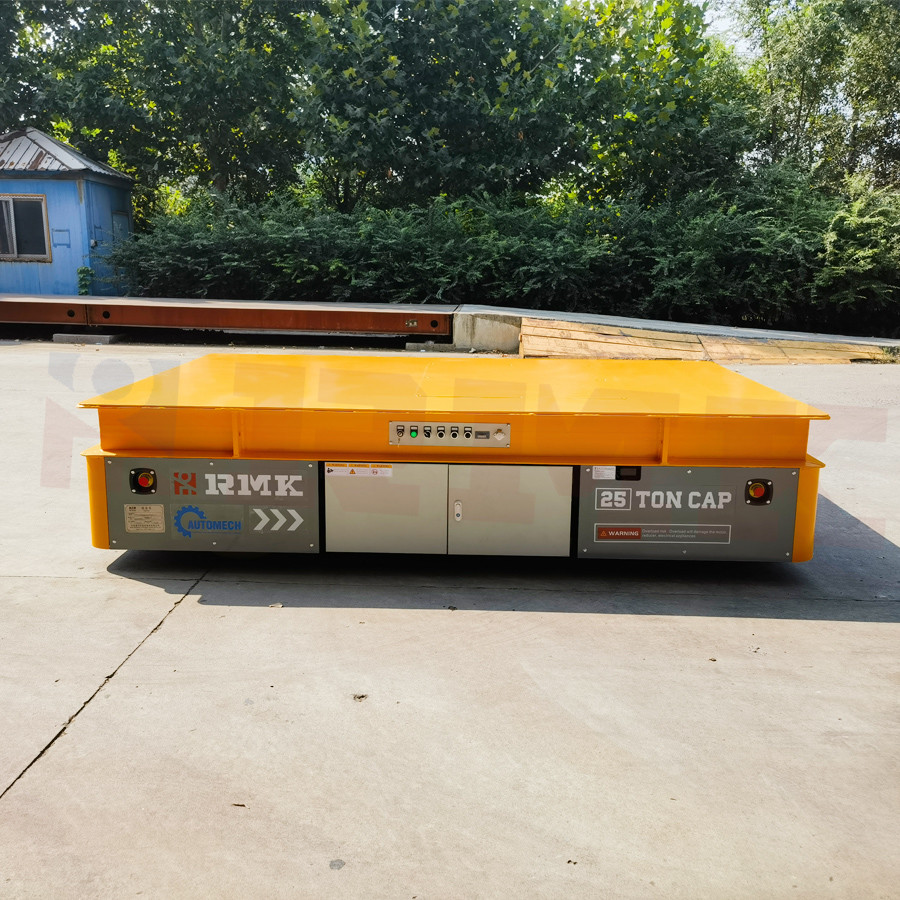

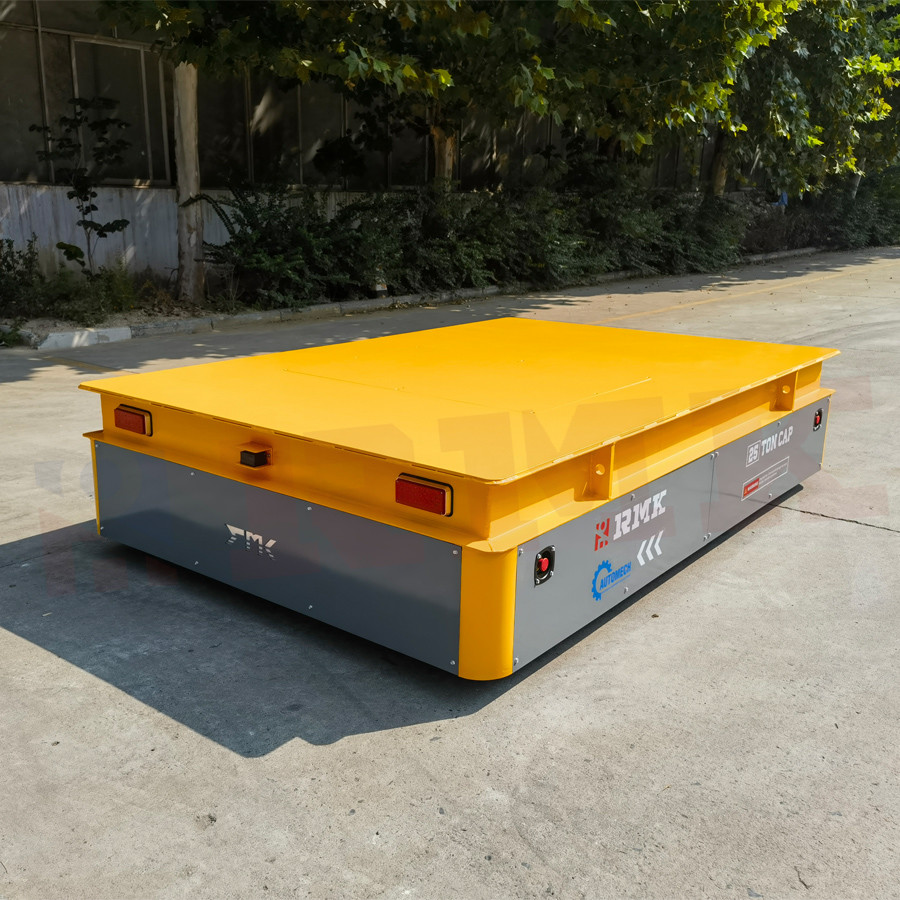

Shipbuilding 25T Load Transfer Trolley Battery Heavy Load Transporter
Industrial 25 Tons Battery Powered Shipbuilding Heavy Load
Transporter Can Be Divided Into Annular Track Type And Linear
Reciprocating Type. The Annular Track Type RGV System Has High
Efficiency And Can Work Multiple Vehicles At The Same Time.
Generally, Aluminum Alloy Track Is Used; Linear Reciprocating
Generally Includes One RGV System For Reciprocating Motion, And The
Efficiency Is Relatively Low Compared With The Annular RGV System.
RGV System Can Be Used As The Peripheral Equipment Of The
Three-Dimensional Warehouse Or Its Own Independent System.
Henan Remarkable 20 Tons Shipbuilding Using Rail Transfer Trolleys
Will Perfectly Suit Your Needs For Coil Handling In Steel Industry,
Concrete Manufacturing, Transportation In Factories, Warehouses,
Ports And The Variety Of Hard Duty Fields Where Moving On Rails Is
Required And Production Cycles Are Regular Both Time-Wise And
Route-Wise. Henan Remarkable Offers Modern Die Change Carts On
Rails To Respond To Rapid Changes In Metalworking Industry And
Reshape Its Logistics.
Features:
◆ Radio Remote Control Is Provided To Move Trolley.
◆ Spring Cable Reel / Magnetic Cable Drum/ Motorized Cable Reel
◆ Under Voltage / Over Voltage Protection Is Provided Into Control
Panel.
◆ Transfer Trolley Is Equipped With Siren And Warning Lights.
Characters:
◆ Transfer Car Runs On Straight, Arc-Shaped And ‘S’ Railways
◆ Suitable For Working In High Temperature, Explosive And Flammable
Environment
◆ Easy Operate, Both Remote Controller And Push Button
| Technical parameters for Battery powered electric transfer carts | ||||||||||
| Model | RWP-2t | RWP-5t | RWP-10t | RWP-20t | RWP-25t | RWP-30t | RWP-40t | RWP-50t | RWP-150t | |
| Rated Load(T) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| 1.Load capacity, table size and rail gauge can be customized; 2.Options: Remote radio control (imported or made in china); 3.Automatic stop when detecting obstacle or person ,limit switches (to limit travel); 4.Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery); | ||||||||||
|
